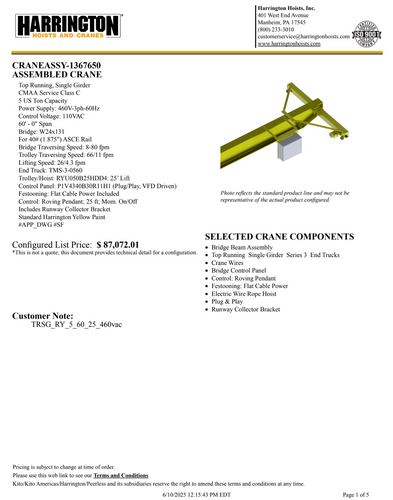

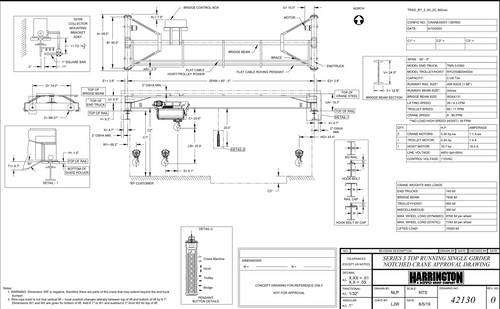

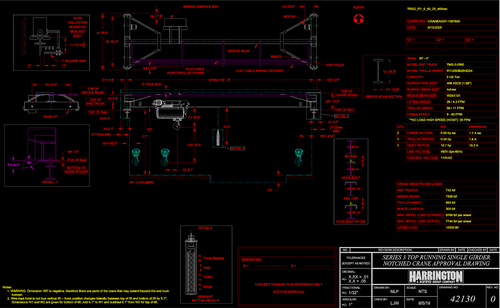

Harrington 5-Ton 60' Span/25' Lift Top Running Single Girder Crane Assembly– C-1367650

The C-1367650 is a 5-ton top-running single girder crane system engineered for CMAA Class C service and optimized for medium-duty industrial applications. This system delivers a 5-ton lifting capacity with a 60-foot span, utilizing robust steel construction, high-efficiency drive components, and advanced VFD control technology.

Equipped with a RYU Series wire rope hoist and Harrington's Series 3 motorized end trucks, the crane features smooth dual-speed operation, plug-and-play wiring, and an intuitive pendant station. With flat cable festooning, preconfigured controls, and a plug-and-play design, this crane offers rapid installation and reliable performance in demanding environments.

Technical Specifications:

Crane Type Top Running, Single Girder

Service Classification CMAA Class C

Capacity 5 US Tons

Span 60 ft – 0 in

Paint Finish Standard Harrington Yellow

Shipping Condition Fully Assembled

Rail Size 40# ASCE (1.875" head width)

Electrical Specifications:

Main Power Supply460V / 3-Phase / 60Hz

Control Voltage 110VAC

System Amperage 20.1 A

Control Panel Model P1V4340B30R11H1 (VFD, Plug & Play)

Mainline Disconnect Fuse 30 Amps

Enclosure Rating NEMA 4

Motion & Speeds:

Bridge Travel 8–80 (VFD Adjustable)

Trolley Travel 66 / 11 (dual-speed)

Lifting Speed 26 / 4.3 (dual-speed, VFD adjustable)

No Load High Speed 39 fpm

Hoist & Trolley Assembly:

ModelRYU050B25HDD4

Rated Capacity 5 Ton

Lift Height 25 ft

Power Supply 460V / 3Ph / 50/60Hz

Max Amperage 19.7 A

Trolley Speed 66 / 11 fpm

Flange Range 4.93–13.78 in (12.9 in nominal)

Certifications UL1340 / CSA 22.2 No. 33

Hoist/Trolley Weight 993 lbs

Bridge Beam Assembly:

Beam TypeW24x131

Material ASTM A572 Grade 50

Span 60 ft – 0 in

Beam Weight 8,174.79 lbs

Configuration Notched Beam with BAK

End Truck Specifications:

ModelTMS3-0560 (Series 3)

Capacity 5 Ton

Wheel Diameter 8.27 in

Wheel Hardness 160–220 BHN

Motor Output 0.5 HP (1.1 A each)

Rail Compatibility 40# ASCE (1.875")

Weight per Truck 371.5 lbs

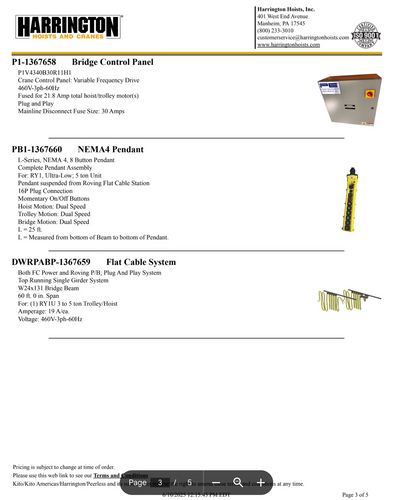

Control System & Festooning:

Pendant Model-Series, NEMA 4, 8-Button

Pendant Drop 25 ft (beam to pendant bottom)

Control Type Momentary On/Off

Motion Support Dual-Speed: Hoist / Trolley / Bridge

Festoon Type Flat Cable, Plug & Play

System Amperage 19 A

Included Components:

• W24x131 Bridge Beam Assembly
• Series 3 Top Running Motorized End Trucks
• RYU Electric Wire Rope Hoist (25 ft lift)
• VFD-Controlled Bridge Control Panel (Plug & Play)
• Crane Wiring with NEMA 4 LiquidTight Conduit
• 8-Button Pendant Station (25 ft drop)
• Flat Cable Festoon System
• Runway Collector Bracket

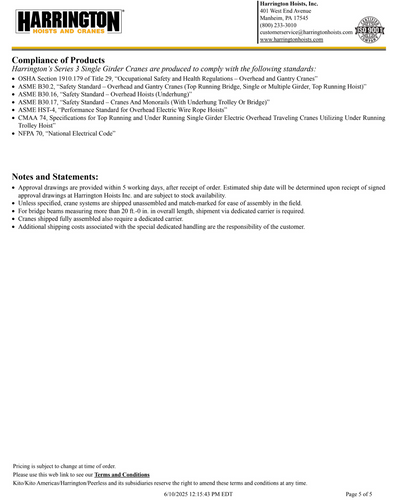

Compliance & Standards:

This crane complies with the following standards and regulations:

• OSHA 29 CFR 1910.179
• ASME B30.2, B30.16, B30.17
• ASME HST-4
• CMAA 74
• NFPA 70 (NEC)

Additional Notes:

• Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
• Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
• For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
• Cranes shipped fully assembled also require a dedicated carrier.
• Additional shipping costs associated with special dedicated handling are the customer's responsibility.
