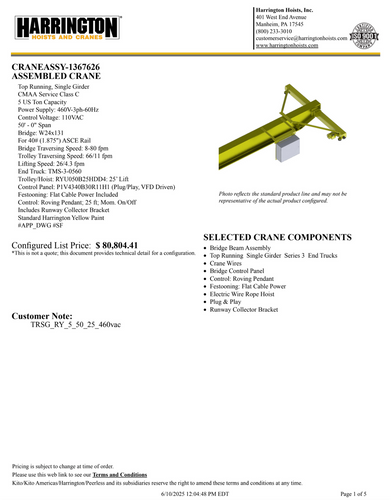

Harrington 5-Ton 50' Span/25' Lift Top Running Single Girder Crane Assembly– C-1367626

The C-1367626 is a 5-ton top-running single girder overhead crane engineered for demanding industrial lifting. Designed to handle up to 5 US tons over a 50-foot span, this crane system features a W24x131 bridge beam, robust end trucks, and a VFD-controlled electric wire rope hoist for smooth, dual-speed operation.

Built to CMAA Service Class C standards, this system supports moderate-duty applications in facilities such as manufacturing plants, warehouses, and maintenance shops. The system includes a roving pendant station, flat cable festooning, and plug-and-play control components, simplifying both installation and long-term maintenance.

Technical Specifications:

Crane Type Top Running, Single Girder

Service Classification CMAA Class C

Rated Capacity 5 US Tons

Span 50 ft – 0 in

Lift Height 25 ft

Finish Standard Harrington Yellow

Rail Compatibility 40# ASCE (1.875" Head Width)

Assembly Shipped Fully Assembled

Electrical Details:

Power Supply460V / 3-Phase / 60Hz

Control Voltage 110VAC

System Amperage 20.1 A

Main Disconnect Fuse 30 A

Control Panel P1V4340B30R11H1 (VFD, Plug & Play)

Enclosure Rating NEMA 4

Motion Capabilities:

Bridge Travel 8–80 fpm (adjustable via VFD)

Trolley Travel 66/11 fpm (dual speed)

Hoist Lift Speed 26/4.3 fpm (adjustable via VFD)

No Load Lift Speed 39 fpm

Hoist Assembly:

ModelRYU050B25HDD4

Type Electric Wire Rope Hoist

Capacity 5 Ton

Lift 25 ft

Voltage 460V / 3Ph / 50/60Hz

Max Amperage 19.7 A

Flange Range 4.93"–13.78" (12.9" nominal flange)

Certifications UL1340 / CSA 22.2 No. 33

Net Weight 993 lbs (Hoist + Trolley)

Bridge Beam Details:

ModelW24x131

Material Grade ASTM A572 G50

Beam Weight 6,864.79 lbs

Notes Notched Beam; Substitutions subject to availability

End Trucks:

ModelTMS3-0560 (Series 3 Motorized)

Capacity 5 Ton

Wheel Diameter 8.27 in

Wheel Hardness 160–220 BHN

Motor Power 0.5 HP each (1.1 A per motor)

Weight per Truck 371.5 lbs

Pendant and Festoon System:

Pendant TypeL-Series, NEMA 4, 8-Button

Pendant Drop 25 ft (beam bottom to pendant bottom)

Control Modes Dual Speed (Hoist / Trolley / Bridge)

Connection 16P Plug

Festoon Type Flat Cable; Plug & Play

Voltage / Amperage 460V / 3Ph / 60Hz, 19 A

Compliance Standards:

This crane is manufactured to comply with the following standards:

• OSHA 29 CFR 1910.179 – Overhead and Gantry Cranes
• ASME B30.2, B30.16, B30.17 – Crane and Hoist Safety Standards
• ASME HST-4 – Performance for Electric Wire Rope Hoists
• CMAA 74 – Specifications for Single Girder EOT Cranes
• NFPA 70 – National Electrical Code

Additional Notes:

• Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
• Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
• For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
• Cranes shipped fully assembled also require a dedicated carrier.
• Additional shipping costs associated with special dedicated handling are the customer's responsibility.
