Harrington 5-Ton 55' Span/25' Lift Top Running Single Girder Crane Assembly – C-1367638

The C-1367638 is a 5-ton, top-running single girder crane system engineered for medium-duty industrial applications under CMAA Class C. With a 5-ton capacity and a 55-foot span, this crane is ideal for facilities that require reliable material handling with minimal maintenance.

Built with Harrington's durable W24x131 bridge beam, Series 3 motorized end trucks, and an advanced RYU series wire rope hoist, this crane delivers precise, dual-speed control across hoisting, Trolley, and bridge motions, all through a user-friendly 8-button pendant station. The plug-and-play design reduces setup time, and NEMA-rated components offer robust performance in demanding environments.

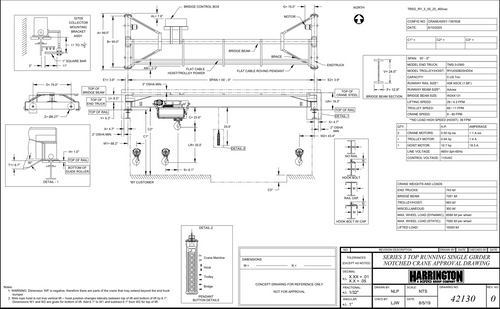

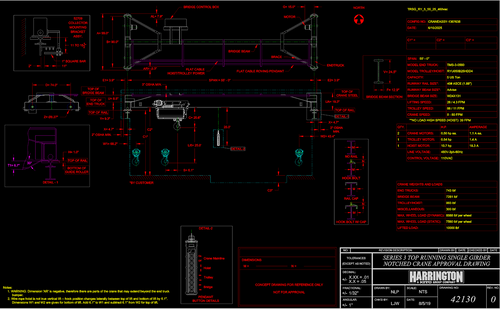

Technical Specifications:

Crane Type Top Running, Single Girder

Service Classification CMAA Class C

Capacity 5 US Tons

Span 55 ft – 0 in

Paint Finish Standard Harrington Yellow

Shipping Condition Fully Assembled

Rail Size 40# ASCE (1.875" head width)

Electrical Specifications:

Main Power Supply460V / 3-Phase / 60Hz

Control Voltage 110VAC

System Amperage 20.1 A

Control Panel Model P1V4340B30R11H1 (VFD, Plug & Play)

Mainline Disconnect Fuse 30 Amps

Enclosure Rating NEMA 4

Motion & Speeds:

Bridge Travel 8–80 (adjustable via VFD)

Trolley Travel 66 / 11 (dual-speed)

Lifting Speed 26 / 4.3 (dual-speed, VFD adjustable)

No Load High Speed 39 (fpm)

Hoist & Trolley Assembly:

ModelRYU050B25HDD4

Rated Capacity 5 Ton

Lift Height 25 ft

Power Supply 460V / 3Ph / 50/60Hz

Max Amperage 19.7 A

Trolley Speed 66 / 11 fpm

Flange Range 4.93–13.78 in (12.9 in nominal)

Certifications UL1340 / CSA 22.2 No. 33

Hoist/Trolley Weight 993 lbs

Bridge Beam Assembly:

Beam TypeW24x131

Material ASTM A572 Grade 50

Span 55 ft – 0 in

Beam Weight 7,519.79 lbs

Configuration Notched, BAK included

End Trucks:

ModelTMS3-0560 (Series 3)

Capacity 5 Ton

Wheel Diameter 8.27 in

Wheel Hardness 160–220 BHN

Motor Output 0.5 HP (1.1 A each)

Rail Compatibility 40# ASCE (1.875")

Weight per Truck 371.5 lbs

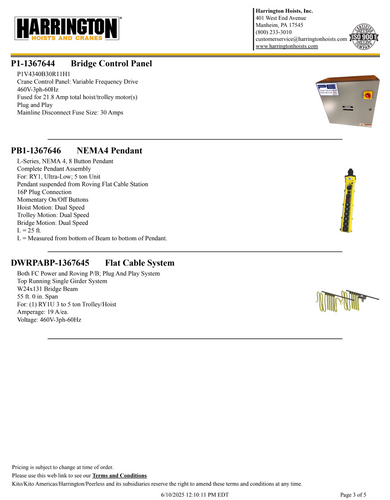

Control System & Festooning:

Pendant Model-Series, NEMA 4, 8-Button

Pendant Drop 25 ft (beam to pendant bottom)

Control Type Momentary On/Off

Motion Support Dual-Speed: Hoist / Trolley / Bridge

Festoon Type Flat Cable, Plug & Play

Voltage 460V / 3Ph / 60Hz

System Amperage 19 A

Included Components:

• Bridge Beam Assembly (W24x131)
• Top Running Series 3 Motorized End Trucks (TMS3-0560)
• RYU Electric Wire Rope Hoist with 25 ft lift
• Crane Control Panel (Plug & Play, VFD controlled)
• Crane Wiring (NEMA 4-rated, Plug & Play)
• Roving Pendant Station (25 ft drop)
• Flat Cable Festoon System
• Runway Collector Bracket

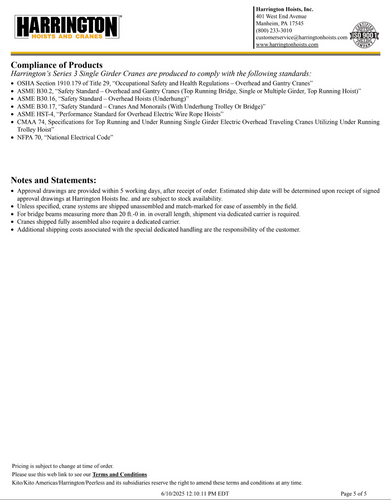

Compliance & Standards:

This crane is built in compliance with:

• OSHA 29 CFR 1910.179
• ASME B30.2, B30.16, B30.17
• ASME HST-4
• CMAA 74
• NFPA 70 (National Electrical Code)

Additional Notes:

• Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
• Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
• For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
• Cranes shipped fully assembled also require a dedicated carrier.
• Additional shipping costs associated with special dedicated handling are the customer's responsibility.
