Harrington 5-Ton 55' Span/33' Lift Top Running Single Girder Crane Assembly – C-1367769

The C-1367769 is a 5-ton top-running, single girder crane system designed to meet CMAA Class C service requirements. With a 5-ton lifting capacity, 55-foot span, and premium performance components, this crane offers dependable and efficient operation for a wide range of material handling applications.

Powered by a 460V/3-phase system, this crane integrates Harrington's RYU Series electric wire rope hoist, VFD-driven controls, and a flat cable festoon system for seamless installation and precise dual-speed control. The entire package includes all structural, mechanical, and electrical components, preconfigured for a plug-and-play setup, and is finished in Harrington's signature yellow for high visibility and protection.

Technical Specifications:

Crane Type Top Running, Single Girder

Service Classification CMAA Class C

Capacity 5 US Tons

Span 55 ft – 0 in

Paint Finish Standard Harrington Yellow

Shipping Condition Assembled

Rail Size 30# ASCE (1.68" head width)

Electrical Specifications:

Main Power Supply460V / 3-Phase / 60Hz

Control Voltage 110VAC

System Amperage 20.1 A

Control Panel Model P1V4340B30R11H1 (VFD, Plug & Play)

Mainline Disconnect Fuse 30 Amps

Enclosure Rating NEMA 4

Motion & Speeds:

Bridge Travel 8–80 (VFD Adjustable)

Trolley Travel 66 / 11 (dual-speed)

Lifting Speed 26 / 4.3 (dual-speed, VFD adjustable)

No Load High Speed 39 (fpm)

Hoist & Trolley Assembly:

ModelRYU050B33HDD4

Rated Capacity 5 Ton

Lift Height 33 ft

Power Supply 460V / 3Ph / 50/60Hz

Max Amperage 19.7 A

Trolley Speed 66 / 11 fpm

Flange Range 4.93–13.78 in (12.9 in nominal)

Certifications UL1340 / CSA 22.2 No. 33

Hoist/Trolley Weight 1,092 lbs

Bridge Beam Assembly:

Beam TypeW24x131

Material ASTM A572 Grade 50

Span 55 ft – 0 in

Beam Weight 7,519.79 lbs

Configuration Notched w/ BAK Included

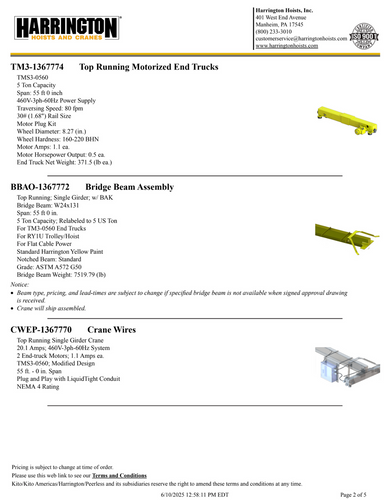

End Trucks:

ModelTMS3-0560 (Series 3)

Capacity 5 Ton

Wheel Diameter 8.27 in

Wheel Hardness 160–220 BHN

Motor Output 0.5 HP (1.1 A each)

Rail Compatibility 30# ASCE (1.68")

Weight per Truck 371.5 lbs

Control System & Festooning:

Pendant Model-Series, NEMA 4, 8-Button

Pendant Drop 33 ft (beam to pendant bottom)

Control Type Momentary On/Off

Motion Support Dual-Speed: Hoist / Trolley / Bridge

Festoon Type Flat Cable, Plug & Play

System Amperage 19 A

Included Components:

• W24x131 Bridge Beam Assembly
• Series 3 Top Running Motorized End Trucks
• RYU Electric Wire Rope Hoist (33 ft lift)
• VFD-Controlled Bridge Panel (Plug & Play)
• Crane Wiring (NEMA 4, LiquidTight, Plug & Play)
• 8-Button Pendant Station (33 ft drop)
• Flat Cable Festoon System
• Runway Collector Bracket

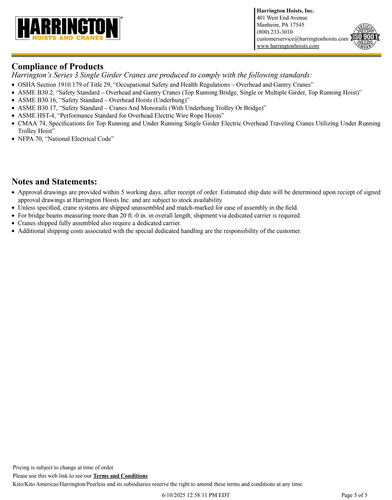

Compliance & Standards:

Manufactured in accordance with:

• OSHA 29 CFR 1910.179
• ASME B30.2, B30.16, B30.17
• ASME HST-4
• CMAA 74
• NFPA 70 (NEC)

Additional Notes:

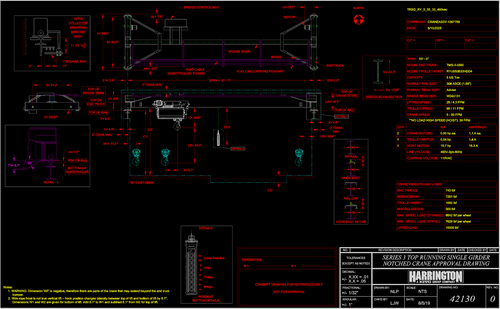

• Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
• Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
• For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
• Cranes shipped fully assembled also require a dedicated carrier.
• Additional shipping costs associated with special dedicated handling are the customer's responsibility.
