Harrington Top Running Single Girder 5 Ton 40' Span/33' Lift Crane Assembly

Write a Review
$53,187.29
SKU: C-1367728
Availability: In stock
Weight: 1.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Harrington Top Running Single Girder 5 Ton 40' Span/33' Lift Crane Assembly

Harrington Top Running Single Girder 5 Ton 40' Span/33' Lift Crane Assembly

$53,187.29

Harrington Top Running Single Girder 5 Ton 40' Span/33' Lift Crane Assembly – C-1367728

The C-1367728 is a 5-ton, top-running, single-girder overhead crane engineered for medium-duty lifting in industrial environments. Featuring a 40-foot span and a 33-foot lift, this crane combines robust construction with user-friendly operation via a VFD-driven hoist, Trolley, and bridge motion system. The unit arrives fully assembled and features plug-and-play wiring, a durable flat cable festooning system, and a roving pendant control for efficient and ergonomic handling.

Built to CMAA Class C standards, this crane is ideal for general manufacturing, maintenance operations, and moderate-cycle applications. A 460V, 3-phase line powers the system and includes a UL/CSA-certified RYU Series electric wire rope hoist, ensuring smooth performance and compliance with safety standards.

Technical Specifications:

Crane Configuration Top Running, Single Girder

Service Class CMAA Class C

Capacity 5 US Tons (10,000 lbs)

Span 40 ft – 0 in

Bridge Beam W21x93, ASTM A572 Grade 50

Paint Standard Harrington Yellow

Assembly Fully Assembled

Rail Compatibility 30# (1.68") ASCE Rail

Configured List Price $69,525.58 (subject to change)

Power & Electrical:

Power Supply 460V / 3-Phase / 60Hz

Control Voltage 110VAC

Total Amperage 20.1 Amps

Bridge Control Panel P1V4340B30R11H1, Plug & Play, VFD Driven

Mainline Disconnect Fuse 30 Amps

Protection Rating NEMA 4

Motion Control:

Bridge Travel 8–80 fpm (VFD controlled)

Trolley Travel 66/11 fpm (Dual Speed)

Hoist Lifting 26/4.3 fpm (VFD adjustable)

No-Load Hoist Speed 39 fpm

Hoist Details:

ModelRYU050B33HDD4

Type Electric Wire Rope Hoist

Lift Height 33 ft

Voltage 460V / 3-Phase / 50/60Hz

Max Amperage 19.7 A

Flange Range 4.93–13.78 in (8.42 in nominal)

Weight (Hoist + Trolley) 1,092 lbs

Certifications UL1340, CSA 22.2 No. 33

End Trucks:

ModelTMS3-0560 (Series 3 Motorized)

Span 40 ft

Capacity 5 Ton

Wheel Diameter 8.27 in

Wheel Hardness 160–220 BHN

Motor Output 0.5 HP each (1.1 Amps each)

Net Weight (each) 371.5 lbs

Pendant & Festooning:

Pendant TypeL-Series, NEMA 4 Rated, 8-Button

Pendant Length 33 ft (measured beam to pendant bottom)

Control Type Momentary On/Off, Dual Speed

Plug Type 16P Connection

Festoon System Flat Cable, Plug & Play

Voltage 460V / 3-Phase / 60Hz

Amperage 19 A

Compliance & Certifications:

Manufactured in accordance with:

  • OSHA 1910.179
  • ASME B30.2, B30.16, B30.17
  • ASME HST-4
  • CMAA 74
  • NFPA 70 (NEC)

Additional Notes:

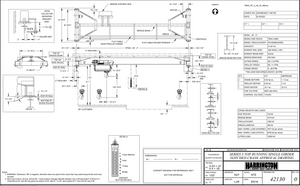

  • Approval drawings are provided within 5 working days, after receipt of order. Estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and are subject to stock availability.
  • Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
  • For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via dedicated carrier is required.
  • Cranes shipped fully assembled also require a dedicated carrier.
  • Additional shipping costs associated with the special dedicated handling are the responsibility of the customer.
