Harrington Top Running Single Girder 5 Ton 20'Span/33' Lift Crane Assembly

Write a Review
$45,236.69
SKU: C-1367666
Availability: In stock
Weight: 1.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

Harrington Top Running Single Girder 5 Ton 20'Span/33' Lift Crane Assembly – CRANEASSY-1367666

The Harrington CRANEASSY-1367666 is a heavy-duty, top-running, single girder crane system rated for 5 US tons, designed to meet CMAA Class C service requirements. Engineered for general industrial applications, this crane offers precision motion, enhanced safety, and durable construction for efficient load handling across a 20-foot span.

This factory-assembled system is built around a W14x82 bridge beam. It includes Harrington's RYU050B33HDD4 electric wire rope hoist with 33 feet of vertical lift, matched to Series 3 motorized end trucks and a VFD-controlled bridge panel for variable-speed operation. Motion control is delivered through a NEMA 4, 8-button roving pendant suspended from a robust flat cable festoon system.

With plug-and-play connectivity, NEMA 4-rated wiring, and industry-certified compliance, the CRANEASSY-1367666 delivers safe, reliable operation and efficient installation in demanding environments.

Technical Specifications:

Crane Type Top Running, Single Girder

Service Class CMAA Class C

Rated Capacity 5 US Tons (10,000 lbs)

Span 20 ft – 0 in

Bridge Beam W14x82, ASTM A572 G50

Paint Harrington Yellow

Assembly Factory Assembled

Rail Compatibility 30# (1.68") ASCE Rail

Power & Control:

ComponentSpecification

Main Power Supply 460V / 3-Phase / 60Hz

Control Voltage 110VAC

Control Panel P1V4340B30R11H1 (VFD, Plug & Play)

Main Disconnect Fuse 30 Amps

Pendant Control 8-Button Roving Pendant, NEMA 4, 33 ft cable

Control Functions Dual Speed (Hoist, Trolley, Bridge)

Motion Performance:

Bridge Traversing 8–80 fpm (Variable Speed via VFD)

Trolley Traversing 66/11 fpm (Dual Speed)

Hoist Lifting Speed 26/4.3 fpm (VFD Adjustable)

Hoist No-Load Speed 39 fpm

Hoist Specifications:

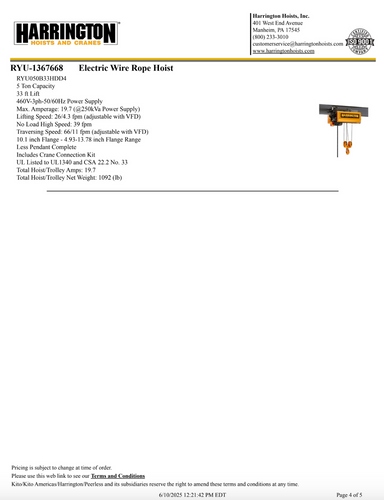

ModelRYU050B33HDD4

Type Electric Wire Rope Hoist

Capacity 5 Ton

Lift Height 33 ft

Power Supply 460V / 3ph / 50/60Hz

Flange Range 4.93–13.78 in

Max Amperage 19.7 Amps

Total Weight 1,092 lbs (Hoist + Trolley)

Certifications UL1340, CSA 22.2 No. 33

End Trucks:

ModelTMS3-0560 (Series 3 Motorized)

Traversing Speed 80 fpm

Wheel Diameter 8.27 in

Wheel Hardness 160–220 BHN

Motor Output 0.5 HP (1.1 Amps each)

Net Weight (each) 371.5 lbs

Electrical System:

Crane Wiring CWEP-1367667, NEMA 4 Rated, Plug & Play

System Amperage 20.1 Amps

Festoon System Flat Cable, Plug & Play, 460V/3ph/60Hz

Compliance Standards:

Complies with:

  • OSHA 1910.179
  • ASME B30.2, B30.16, B30.17
  • ASME HST-4
  • CMAA 74
  • NFPA 70 (National Electrical Code)

Additional Notes:

  • Includes Runway Collector Bracket
  • Wiring is in liquid-tight conduit with NEMA 4 rating
  • Approval drawings are available within 5 business days after the order
  • Cranes over 20 ft in beam length or assembled units ship via a dedicated carrier
  • Shipping and handling costs for special transport are the customer's responsibility
