Product Overview
Harrington Top Running Single Girder 5 Ton 30' Span/33' Lift Crane Assembly – C-1367699
The C-1367699 is a 5-ton overhead crane system designed by Harrington Hoists for moderate-duty industrial applications. Built to CMAA Service Class C specifications, this crane features a 30 ft span and offers 33 feet of lift using a heavy-duty electric wire rope hoist. With VFD-controlled dual-speed operation across all motions and a robust flat cable festoon system, this crane is engineered for both precision and performance.
This system incorporates a W16x89 bridge beam, plug-and-play wiring, and a NEMA 4 roving pendant control and is finished in Harrington's industrial-grade yellow. It's designed for seamless field installation and long-term reliability. That makes this assembly an ideal choice for facilities requiring dependable lifting in a top-running single girder configuration.
Technical Specifications:
Crane Type Top Running, Single Girder
Service Class CMAA Class C
Rated Capacity 5 US Tons (10,000 lbs)
Span 30 ft – 0 in
Bridge Beam W16x89, ASTM A572 Grade 50
Paint Finish Standard Harrington Yellow
Assembly Factory Assembled
Rail Compatibility 30# (1.68") ASCE Rail
Power & Controls:
Main Power Supply 460V / 3-Phase / 60Hz
Control Voltage 110VAC
Bridge Control Panel P1V4340B30R11H1 (VFD, Plug & Play)
Main Disconnect Fuse 30 Amps
Control Interface 8-Button Roving Pendant, NEMA 4, 33 ft lead
Motion Controls Dual Speed (Hoist, Trolley, Bridge)
Motion Performance:
Bridge Traversing 8–80 fpm (Variable Speed via VFD)
Trolley Traversing 66/11 fpm (Dual Speed)
Hoist Lifting Speed 26/4.3 fpm (Adjustable with VFD)
No-Load Lifting Speed 39 fpm
Hoist Specifications:
ModelRYU050B33HDD4
Type Electric Wire Rope Hoist
Capacity 5 Ton
Lift Height 33 ft
Power Supply 460V / 3ph / 50/60Hz
Flange Range 4.93–13.78 in (10.4" nominal)
Max Amperage 19.7 Amps
Total Weight 1,092 lbs (Hoist + Trolley)
Certifications UL1340, CSA 22.2 No. 33
End Truck Specifications:
ModelTMS3-0560 (Series 3 Motorized)
Capacity 5 Ton
Traversing Speed 80 fpm
Wheel Diameter 8.27 in
Wheel Hardness 160–220 BHN
Motor Output 0.5 HP (1.1 Amps each)
Net Weight (each) 371.5 lbs
Electrical & Festooning:
Wiring SystemCWEP-1367702, NEMA 4 Rated, Plug & Play
System Amperage 20.1 Amps
Festoon Type Flat Cable, Plug & Play
Voltage 460V / 3-Phase / 60Hz
Protection Liquid-Tight Conduit

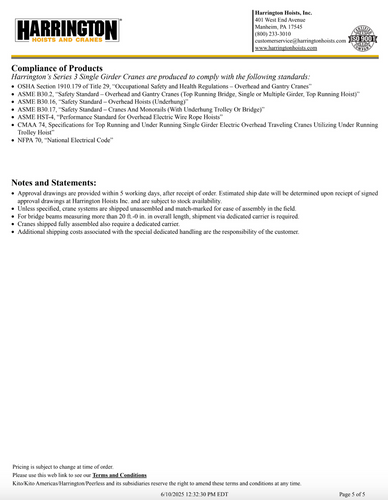

Compliance Standards:
Manufactured in accordance with:
- OSHA 1910.179
- ASME B30.2, B30.16, B30.17
- ASME HST-4
- CMAA 74
- NFPA 70 (NEC)
Additional Notes:
- Approval drawings are provided within 5 working days, after receipt of order. Estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and are subject to stock availability.
- Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
- For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via dedicated carrier is required.
- Cranes shipped fully assembled also require a dedicated carrier.
- Additional shipping costs associated with the special dedicated handling are the responsibility of the customer.
