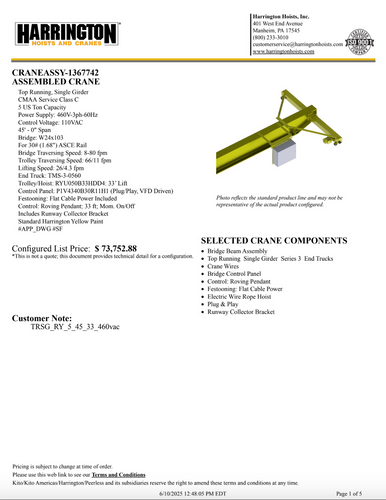

Harrington 5-Ton 45' Span/33' Lift Top Running Single Girder Crane Assembly – C-1367742

The C-1367742 is a 5-ton overhead crane system designed for industrial applications requiring efficient material handling over a 45-foot span. Built with a W24x103 bridge beam, this system combines strength and stability with smooth dual-speed motion, offering superior control over lifting, trolley, and bridge functions.

This CMAA Class C crane system features a 33-foot lift height, a robust electric wire rope hoist, and a plug-and-play VFD-driven control panel. Engineered for ease of installation and dependable operation, it includes a roving pendant control flat cable festooning and is finished in standard Harrington yellow paint. Suitable for mid-duty lifting cycles in manufacturing, assembly, or maintenance environments.

Technical Specifications:

Crane Type Top Running, Single Girder

Service Class CMAA Class C

Load Capacity 5 US Tons (10,000 lbs)

Span 45 ft – 0 in

Lift Height 33 ft

Paint Finish Standard Harrington Yellow

Rail Type 30# ASCE (1.68")

Power & Electrical:

Power Supply460V / 3-Phase / 60Hz

Control Voltage 110VAC

System Amperage 20.1 A

Main Disconnect Fuse 30 A

Control Panel P1V4340B30R11H1 (VFD Driven, Plug & Play)

Protection Rating NEMA 4

Motion Performance:

Bridge Travel 8–80 fpm (Variable via VFD)

Trolley Travel 66/11 fpm (Dual Speed)

Hoisting Speed 26/4.3 fpm (adjustable via VFD)

No-Load Lift Speed 39 fpm

Hoist Assembly:

ModelRYU050B33HDD4

Type Electric Wire Rope Hoist

Capacity 5 Ton

Lift Height 33 ft

Voltage 460V / 3-Ph / 50/60Hz

Max Amperage 19.7 A

Flange Range 4.93 – 13.78 in (9 in nominal)

Certifications UL 1340 / CSA 22.2 No. 33

Hoist + Trolley Weight 1,092 lbs

Bridge Beam Assembly:

ModelW24x103

Span 45 ft

Material Grade ASTM A572 G50

Beam Weight 4,944.62 lbs

Notes Notched Beam; Subject to availability

End Trucks:

ModelTMS3-0560 Series 3 Motorized

Span Capacity 45 ft

Capacity 5 Ton

Wheel Diameter 8.27 in

Wheel Hardness 160–220 BHN

Motor Output 0.5 HP each (1.1 A each)

Net Weight (each) 371.5 lbs

Pendant & Festooning System:

Pendant TypeL-Series, NEMA 4, 8-Button

Pendant Drop 33 ft (beam bottom to pendant bottom)

Motion Control Dual Speed – Hoist, Trolley, Bridge

Connection 16P Plug

Festoon System Flat Cable Power, Plug & Play

Festoon Voltage 460V / 3-Ph / 60Hz

Amperage 19 A

Compliance Standards:

This crane meets or exceeds the following industry standards:

• OSHA 29 CFR 1910.179
• ASME B30.2, B30.16, B30.17
• ASME HST-4
• CMAA 74 Specifications
• NFPA 70 – National Electrical Code

Additional Notes:

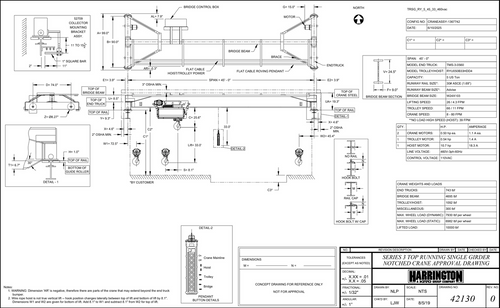

• Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
• Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
• For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
• Cranes shipped fully assembled also require a dedicated carrier.
• Additional shipping costs associated with special dedicated handling are the customer's responsibility.
