Harrington 5-Ton 60' Span/33' Lift Top Running Single Girder Crane Assembly– C-1367779

The C-1367779 is a top-running, single-girder overhead crane system engineered for industrial-grade performance under CMAA Class C duty conditions. With a 60-foot span and 5-ton lifting capacity, it features an RYU Series electric wire rope hoist offering 33 feet of lift, high-efficiency dual-speed travel and lifting, and robust electrical systems for reliability in demanding environments.

This crane comes fully assembled and ready to install, equipped with VFD-driven motion controls, flat cable festooning, and an ergonomic roving pendant. It's a complete turnkey solution for overhead material handling where performance, durability, and fast installation are key.

Technical Specifications:

Crane Type Top Running, Single Girder

Service Classification CMAA Class C

Capacity 5 US Tons

Span 60 ft – 0 in

Paint Finish Standard Harrington Yellow

Shipping Condition Fully Assembled

Rail Size 40# ASCE (1.875" head width)

Electrical & Control Details:

Main Power Supply460V / 3-Phase / 60Hz

Control Voltage 110VAC

System Amperage 20.1 A

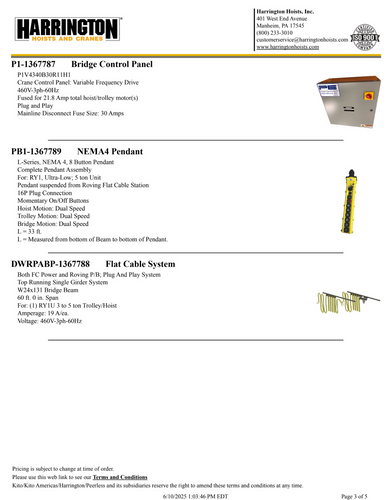

Bridge Control Panel P1V4340B30R11H1 (VFD, Plug & Play)

Disconnect Fuse Size 30 Amps

NEMA Rating NEMA 4

Motion & Speeds:

Bridge Travel 8–80 (VFD Adjustable)

Trolley Travel 66 / 11 (Dual Speed)

Lifting Speed 26 / 4.3 (VFD Adjustable)

No Load High Speed 39 fpm

Hoist & Trolley System:

ModelRYU050B33HDD4

Lift Height 33 ft

Flange Range 4.93–13.78 in (12.9 in nominal)

Rated Capacity 5 Ton

Power Supply 460V / 3Ph / 50/60Hz

Total Amperage 19.7 A

Net Weight 1,092 lbs

Certifications UL1340 / CSA 22.2 No. 33

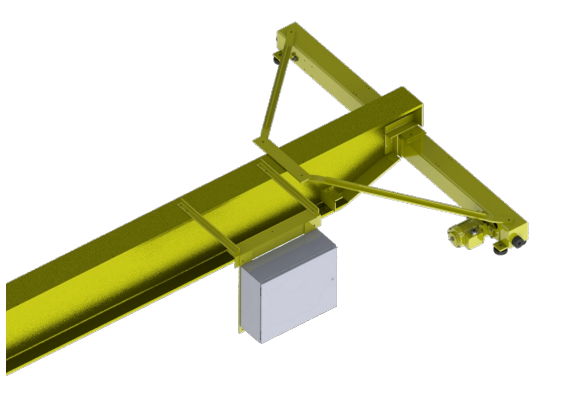

Bridge Beam Assembly:

Beam TypeW24x131

Material ASTM A572 Grade 50

Span 60 ft – 0 in

Beam Weight 8,174.79 lbs

Configuration Notched with BAK

End Truck Details:

ModelTMS3-0560 (Series 3)

Wheel Diameter 8.27 in

Wheel Hardness 160–220 BHN

Motor Output 0.5 HP each (1.1 A each)

Net Weight per Truck 371.5 lbs

Rail Compatibility 40# ASCE

Control & Festooning:

Pendant TypeL-Series, NEMA 4, 8-Button

Pendant Drop Length 33 ft (beam to pendant bottom)

Control Type Momentary On/Off

Supported Motions Dual-Speed: Hoist, Trolley, Bridge

Festoon Type Flat Cable (Plug & Play)

System Voltage 460V / 3-Ph / 60Hz

Festoon Amperage 19 A

Standard Included Components:

• W24x131 Bridge Beam Assembly
• TMS3 Series Motorized End Trucks
• RYU Wire Rope Hoist (33 ft lift)
• VFD-Controlled Bridge Control Panel
• Pre-wired Crane Wiring (Plug & Play)
• 8-Button Roving Pendant Station
• Flat Cable Festoon System
• Runway Collector Bracket

Standards & Compliance:

• OSHA 29 CFR 1910.179 – Overhead and Gantry Cranes
• ASME B30.2 / B30.16 / B30.17 – Crane and Hoist Safety Standards
• ASME HST-4 – Electric Wire Rope Hoists
• CMAA 74 – Specifications for Electric Overhead Cranes
• NFPA 70 – National Electrical Code (NEC)

Additional Notes:

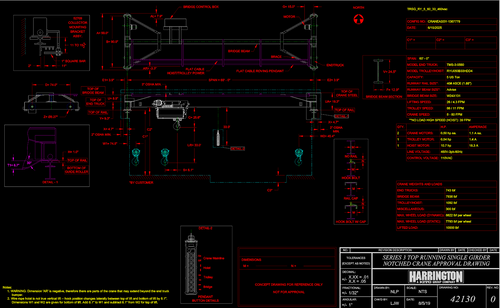

• Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
• Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
• For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
• Cranes shipped fully assembled also require a dedicated carrier.
• Additional shipping costs associated with special dedicated handling are the customer's responsibility.
