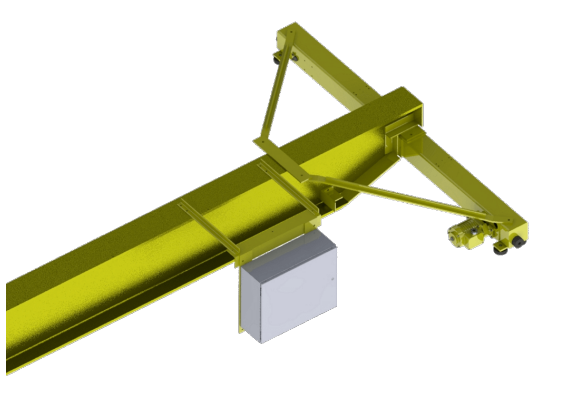

Harrington Top Running Single Girder 5 Ton 25' Span/25' Lift Crane Assembly

Write a Review
$45,881.99
SKU: C-1367187
Availability: In stock
Weight: 1.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Harrington Top Running Single Girder 5 Ton 25' Span/25' Lift Crane Assembly

Harrington Top Running Single Girder 5 Ton 25' Span/25' Lift Crane Assembly

$45,881.99

Harrington Top Running Single Girder 5 Ton 25' Span/25' Lift Crane Assembly – C-1367187

The Harrington C-1367187 is a fully assembled, high-performance, top-running single girder crane engineered for medium-duty service in industrial environments. With a 5-ton lifting capacity and 25-foot span, this crane meets CMAA Class C requirements and is built to handle the demands of manufacturing, maintenance, and material handling operations.

Constructed with a W14x82 bridge beam and powered by a 460V 3-phase electrical system, the crane is equipped with Series 3 motorized end trucks and the RYU050B25HDD4 electric wire rope hoist for smooth, reliable hoisting and traversing. Dual-speed motion control across the hoist, Trolley, and bridge is managed via a NEMA 4-rated roving pendant. In contrast, a VFD-driven bridge control panel ensures variable speed precision and energy efficiency.

The system features plug-and-play wiring, flat cable festooning, and liquid-tight conduit for enhanced safety and easy setup. Finished in Harrington's signature yellow, this crane is compliant with significant safety and performance standards, making it a reliable solution for a wide range of overhead lifting applications.

Technical Specifications:

Crane Type Top Running, Single Girder

Service Class CMAA Class C

Rated Capacity 5 US Tons (10,000 lbs)

Span 25 ft – 0 in

Bridge Beam W14x82, ASTM A572 G50

Paint Harrington Yellow

Assembly Factory Assembled

Rail Compatibility 30# (1.68") ASCE Rail

Power & Controls:

Main Power Supply 460V / 3-Phase / 60Hz

Control Voltage 110VAC

Control Panel P1V4340B30R11H1 (VFD, Plug & Play)

Main Disconnect Fuse 30 Amps

Pendant Control 8-Button Roving Pendant, NEMA 4, 25 ft cable

Control Functions Dual Speed (Hoist, Trolley, Bridge)

Motion Performance:

Bridge Traversing 8–80 fpm (Variable Speed via VFD)

Trolley Traversing 66/11 fpm (Dual Speed)

Hoist Lifting Speed 26/4.3 fpm (VFD Adjustable)

No-Load Lifting Speed 39 fpm

Hoist Specifications:

ModelRYU050B25HDD4

Type Electric Wire Rope Hoist

Capacity 5 Ton

Lift Height 25 ft

Power Supply 460V / 3ph / 50/60Hz

Flange Range 4.93–13.78 in

Max Amperage 19.7 Amps

Total Weight 993 lbs (Hoist + Trolley)

Certifications UL1340, CSA 22.2 No. 33

End Trucks:

ModelTMS3-0560 (Series 3 Motorized)

Traversing Speed 80 fpm

Wheel Diameter 8.27 in

Wheel Hardness 160–220 BHN

Motor Output 0.5 HP (1.1 Amps each)

Net Weight (each) 371.5 lbs

Electrical System:

Crane Wiring CWEP-1367197, NEMA 4 Rated, Plug & Play

System Amperage 20.1 Amps

Festoon System Flat Cable, Plug & Play, 460V/3ph/60Hz

Compliance Standards:

Complies with:

  • OSHA 1910.179
  • ASME B30.2, B30.16, B30.17
  • ASME HST-4
  • CMAA 74
  • NFPA 70 (National Electrical Code)

Additional Notes:

  • Includes Runway Collector Bracket
  • All wiring enclosed in liquid-tight conduit

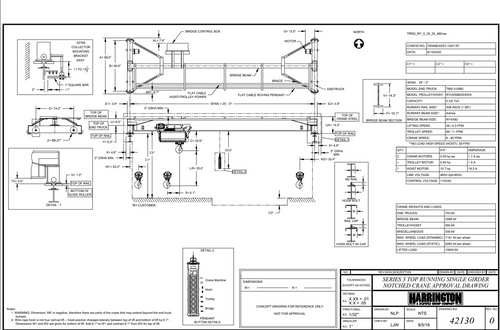

  • Approval drawings are provided within 5 business days after the order
  • Shipment via a dedicated carrier is required for assembled units or beams over 20 ft
  • The customer is responsible for any additional special freight costs
