Harrington Top Running Single Girder 5 Ton 45' Span/25' Lift Crane Assembly – C-1367592

The C-1367592 is a 5-ton assembled overhead crane system built for industrial-grade performance in demanding environments. This unit features a 45-foot span and a 25-foot lift height, integrating a top-running single girder design. It comes equipped with a VFD-driven wire rope hoist, flat cable festooning system, and an eight-button pendant control, offering reliable dual-speed motion for bridge, trolley, and hoist functions.

Designed to CMAA Class C service requirements and built with a W24x103 bridge beam, this crane is suitable for mid-duty operations such as production support, general assembly, and light maintenance. As a plug-and-play system, it minimizes installation complexity while delivering consistent, compliant, and efficient overhead lifting.

Technical Specifications:

Crane Configuration Top Running, Single Girder

Service Class CMAA Class C

Capacity 5 US Tons (10,000 lbs)

Span 45 ft – 0 in

Bridge Beam W24x103, ASTM A572 Grade 50

Paint Standard Harrington Yellow

Assembly Fully Assembled

Rail Compatibility 30# (1.68") ASCE Rail

Power & Electrical:

Power Supply 460V / 3-Phase / 60Hz

Control Voltage 110VAC

Total Amperage 20.1 Amps

Bridge Control Panel P1V4340B30R11H1, Plug & Play, VFD Driven

Mainline Disconnect Fuse 30 Amps

Protection Rating NEMA 4

Motion Control:

Bridge Travel 8–80 fpm (VFD controlled)

Trolley Travel 66/11 fpm (Dual Speed)

Hoist Lifting 26/4.3 fpm (VFD adjustable)

No-Load Hoist Speed 39 fpm

Hoist Details:

ModelRYU050B25HDD4

Type Electric Wire Rope Hoist

Lift Height 25 ft

Voltage 460V / 3-Phase / 50/60Hz

Max Amperage 19.7 A

Flange Range 4.93–13.78 in (9 in nominal)

Weight (Hoist + Trolley) 993 lbs

Certifications UL1340, CSA 22.2 No. 33

End Trucks:

ModelTMS3-0560 (Series 3 Motorized)

Span 45 ft

Capacity 5 Ton

Wheel Diameter 8.27 in

Wheel Hardness 160–220 BHN

Motor Output 0.5 HP each (1.1 Amps each)

Net Weight (each) 371.5 lbs

Pendant & Festooning:

Pendant TypeL-Series, NEMA 4 Rated, 8-Button

Pendant Length 25 ft (measured beam to pendant bottom)

Control Type Momentary On/Off, Dual Speed

Plug Type 16P Connection

Festoon System Flat Cable, Plug & Play

Voltage 460V / 3-Phase / 60Hz

Amperage 19 A

Compliance & Certifications:

Manufactured in accordance with:

• OSHA 1910.179
• ASME B30.2, B30.16, B30.17
• ASME HST-4
• CMAA 74
• NFPA 70 (NEC)

Additional Notes:

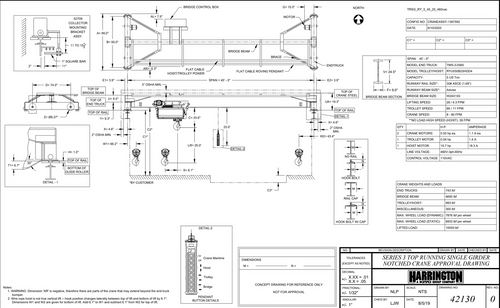

• Approval drawings are provided within 5 working days, after receipt of order. Estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and are subject to stock availability.
• Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
• For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via dedicated carrier is required.
• Cranes shipped fully assembled also require a dedicated carrier.
• Additional shipping costs associated with the special dedicated handling are the responsibility of the customer.
