Harrington Top Running, Single Girder 5 Ton 20' Span/25' Lift Crane Assembly

Write a Review
$44,243.99
SKU: C-1367172
Availability: In stock
Weight: 1.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

Harrington Top Running Single Girder 5 Ton 20' Span/25' Lift Crane Assembly – C-1367172

Engineered for performance, reliability, and safety, the Harrington C-1367172 is a fully configured top-running, single-girder crane assembly rated for 5 US tons. Designed in accordance with CMAA Class C service requirements, this crane is built for moderate-duty applications, including machine shops, fabrication facilities, and general material handling environments.

Featuring a 20-foot span and a robust W14x82 bridge beam, the assembly integrates Harrington's premium RYU Series electric wire rope hoist and Series 3 motorized end trucks to ensure smooth, dual-speed traversing and lifting operations. The system is powered by 460V, 3-phase, 60Hz, with plug-and-play connectivity for easy installation. A fully enclosed NEMA 4 roving pendant and festooned flat cable power delivery provide operator mobility and system protection in industrial environments.

Important: A product drawing will need to be approved after purchase for orders to finish processing. One will be sent after purchase for approval before shipping can be estimated due to different modes that will need to be used for shipping. Some loads may require permits and special permissions based on size of system ordered.



Technical Specifications:



Crane Type Top Running, Single Girder

CMAA Classification Class C

Capacity 5 US Tons (10,000 lbs)

Span 20 ft – 0 in

Bridge Beam W14x82, ASTM A572 G50

Paint Color Standard Harrington Yellow

Rail Size 30# (1.68") ASCE Rail

Configuration Fully Assembled



Power & Control:

ComponentSpecifications

Power Supply 460V / 3-Phase / 60Hz

Control Voltage 110VAC

Control Panel P1V4340B30R11H1 (VFD Driven, Plug & Play)

Mainline Disconnect 30 Amp Fuse

Control Method Roving Pendant – 25 ft cable, 8-Button, Dual Speed, NEMA 4



Motion Speeds:

Motion TypeSpeed (fpm)

Bridge Traversing 4–40 fpm (VFD Controlled)

Trolley Traversing 66/11 fpm (Dual Speed)

Hoisting Speed 26/4.3 fpm (Adjustable, VFD)

No-Load Hoist Speed 39 fpm



Hoist Details:

ModelRYU050B25HDD4

Type Electric Wire Rope Hoist

Capacity 5 Ton

Lift Height 25 ft

Power Supply 460V / 3ph / 50/60Hz

Flange Range 4.93–13.78 in

Weight (Hoist/Trolley) 993 lbs

Certifications UL1340 & CSA 22.2 No. 33 Compliant



End Trucks:

ModelTML-3-0560

Type Series 3 Motorized End Trucks

Traversing Speed 40 fpm

Motor Output 0.5 HP (1.1 Amps each)

Wheel Diameter 8.27 in

Wheel Hardness 160–220 BHN

Net Weight (each) 373.5 lbs



Festoon System:

TypeFlat Cable, Plug & Play

Voltage 460V / 3ph / 60Hz

Amperage 19 A

Configuration Includes both power and pendant cabling

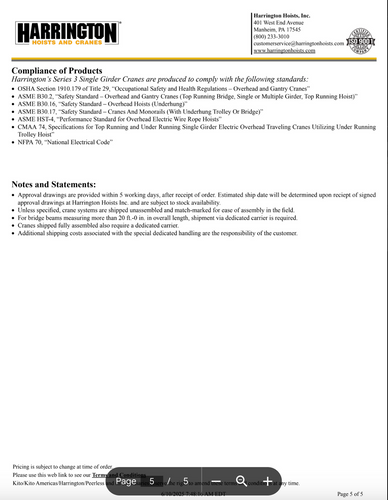

Compliance & Standards:

Complies with:

  • OSHA 1910.179
  • ASME B30.2, B30.16, B30.17
  • ASME HST-4
  • CMAA 74
  • NFPA 70 (NEC)



Notes and Statements:


• Approval drawings are provided within 5 working days, after receipt of order. Estimated ship date will be determined upon reciept of signed
approval drawings at Harrington Hoists Inc. and are subject to stock availability.
• Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
• For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via dedicated carrier is required.
• Cranes shipped fully assembled also require a dedicated carrier.
• Additional shipping costs associated with the special dedicated handling are the responsibility of the customer.
