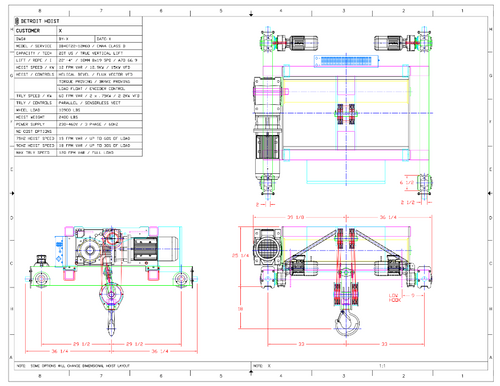

Capacity: 20.00 Ton, Reeving/Lift: 5 PD | 22'­4", Hoist Lift Speed: 12.00 FPM Max, Volt: 230VAC­3PH­60HZ+­5%, DB40T22­-12 Detroit

Type: Suspension / Mount Top Running Double Girder

Capacity: The Model DB40T22-12 is a heavy-duty crane designed for lifting operations requiring substantial capacity. With a maximum capacity of 20.00 tons, it is capable of handling large and heavy loads with ease, making it ideal for industrial applications that demand high lifting capabilities.

Reeving | Lift: Equipped with a 5-part reeving system, this crane offers a lift height of 22 feet and 4 inches. The multiple parts of the reeving system provide mechanical advantage, enabling efficient lifting of heavy loads to significant heights, enhancing versatility and operational flexibility.

Hoist Lift Speed: Featuring a maximum hoist lift speed of 12.00 feet per minute (FPM), the Model DB40T22-12 ensures controlled and precise vertical movement of loads. This speed capability allows for safe and efficient lifting and lowering operations, contributing to enhanced productivity and operational safety.

Hoist Motor: Powered by a 13.4 kW hoist motor, this crane delivers reliable performance and robust lifting capabilities. The powerful motor ensures smooth and controlled movement of loads, enabling efficient handling of heavy materials in various industrial environments.

Hoist Control: Utilizing closed-loop vector Variable Frequency Drive (VFD) control, the hoist operation is precisely regulated for optimal performance. This advanced control system ensures accurate speed control, load handling, and positioning, enhancing overall efficiency and safety during lifting operations.

Trolley Speed: The Model DB40T22-12 features a maximum trolley speed of 60.00 FPM, enabling swift and efficient horizontal movement of loads along the girder tracks. This high-speed capability allows for rapid material handling and positioning, optimizing productivity in industrial settings.

Trolley Motor: Equipped with two motors, each rated at 0.86 kW, the trolley system provides reliable propulsion for smooth and controlled movement across the working area. These motors ensure precise positioning and efficient operation of the trolley, contributing to overall operational efficiency.

Trolley Control: Utilizing sensorless vector VFD control, the trolley movement is accurately regulated for precise positioning and smooth operation. This advanced control system enables responsive and efficient trolley movements, enhancing overall efficiency and safety during material handling tasks.

Power Supply: The Model DB40T22-12 operates on electric power, with a voltage rating of 230VAC, 3-phase, and a frequency of 60Hz (+5% tolerance). This ensures compatibility with standard electrical systems, facilitating seamless integration into existing infrastructure.

CMAA Class | Atmosphere | Location Class: Compliant with CMAA standards and suitable for use in atmosphere class D conditions, this crane offers reliability and durability in various operating environments. Its weather-resistant design ensures performance and longevity, even in challenging weather conditions.

Trolley Gauge: With a trolley gauge of 66.0000 inches, this crane provides stability and proper alignment during horizontal movement along the girder tracks, enhancing safety and efficiency during material handling tasks.

Approximate Weight: Weighing approximately 2400.00 lbs, the Model DB40T22-12 is built with a sturdy construction, ensuring durability and stability during lifting operations. Its robust design and reliable components make it well-suited for demanding industrial applications.
