Product Overview
Type: This beast is a Suspension / Mount Top Running Double Girder. Picture it like the superhero of lifting machines.
Capacity: With a lifting capacity of 11.00 tons, it's like having the Incredible Hulk on your team when it comes to lifting heavy loads. Need to move something massive? This guy's got your back.
Reeving | Lift: Sporting a 3-part reeving system and a lift height of 50 feet and 8 inches, it's like having your very own skyscraper reach. Perfect for those times when you need to reach for the stars.
Hoist Lift Speed: Cruising at a maximum hoist lift speed of 18.00 feet per minute, it's not too fast, not too slow – just the right pace for smooth and steady lifting. Think of it like a gentle giant, moving with purpose and precision.
Hoist Motor: Powered by a 10.4 kW hoist motor, it's got the muscle to lift heavy loads with ease. It's like having a powerhouse at your command, ready to tackle any lifting challenge.
Hoist Control: With its closed-loop vector Variable Frequency Drive (VFD) control, it's got that extra finesse to handle lifting operations like a pro. Smooth, precise, and reliable – just what you need in a lifting buddy.
Trolley Speed: Zooming along at a max speed of 80.00 FPM, this trolley doesn't mess around. Need to move stuff fast? This guy's got you covered. It's like having a speedster on your team, getting things done in record time.
Trolley Motor: It's got two motors, each rated at 0.55 kW, giving it the power to glide across the tracks with ease. Smooth, efficient, and reliable – just what you need in a trolley.
Trolley Control: With its sensorless vector VFD control, this trolley moves with finesse and accuracy. It's like it's dancing on air, effortlessly gliding wherever you need it to go.
Power Supply: Plugged into the grid with electric power at 230VAC, 3-phase, and a frequency of 60Hz (+5% tolerance), it's ready to rock and roll whenever you need it.
CMAA Class | Atmosphere | Location Class: Built to meet CMAA standards, it's tough enough for indoor service in atmosphere class D conditions. And with its weather-resistant design, it can handle whatever Mother Nature throws its way.
Trolley Gauge: With a trolley gauge measuring 78.0000 inches, it's solid and stable, ensuring smooth movement along the girder tracks.
Approximate Weight: Weighing in at around 2400.00 lbs, it's built tough and ready for action. This guy's not just heavy-duty – he's the heavyweight champion of lifting machines.

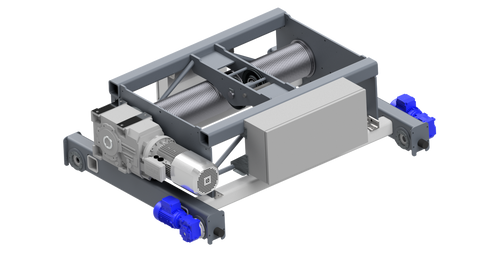

Model DB22T50-18
Suspension / Mount Top Running Double Girder
Capacity 11.00 Ton
Reeving | Lift 3 PD | 50'8"
Hoist Lift Speed 18.00 FPM Max
Hoist Motor 10.4 KW
Hoist Control Closedloop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC3PH60HZ +5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 78.0000"
Approximate Weight 2400.00 lbs
MODEL FEATURES
4pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist 100% dynamic braking with resistor or regenerative converter.
Hoist overweight protection through frequency drive with 3% accuracy.
Trolley open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
