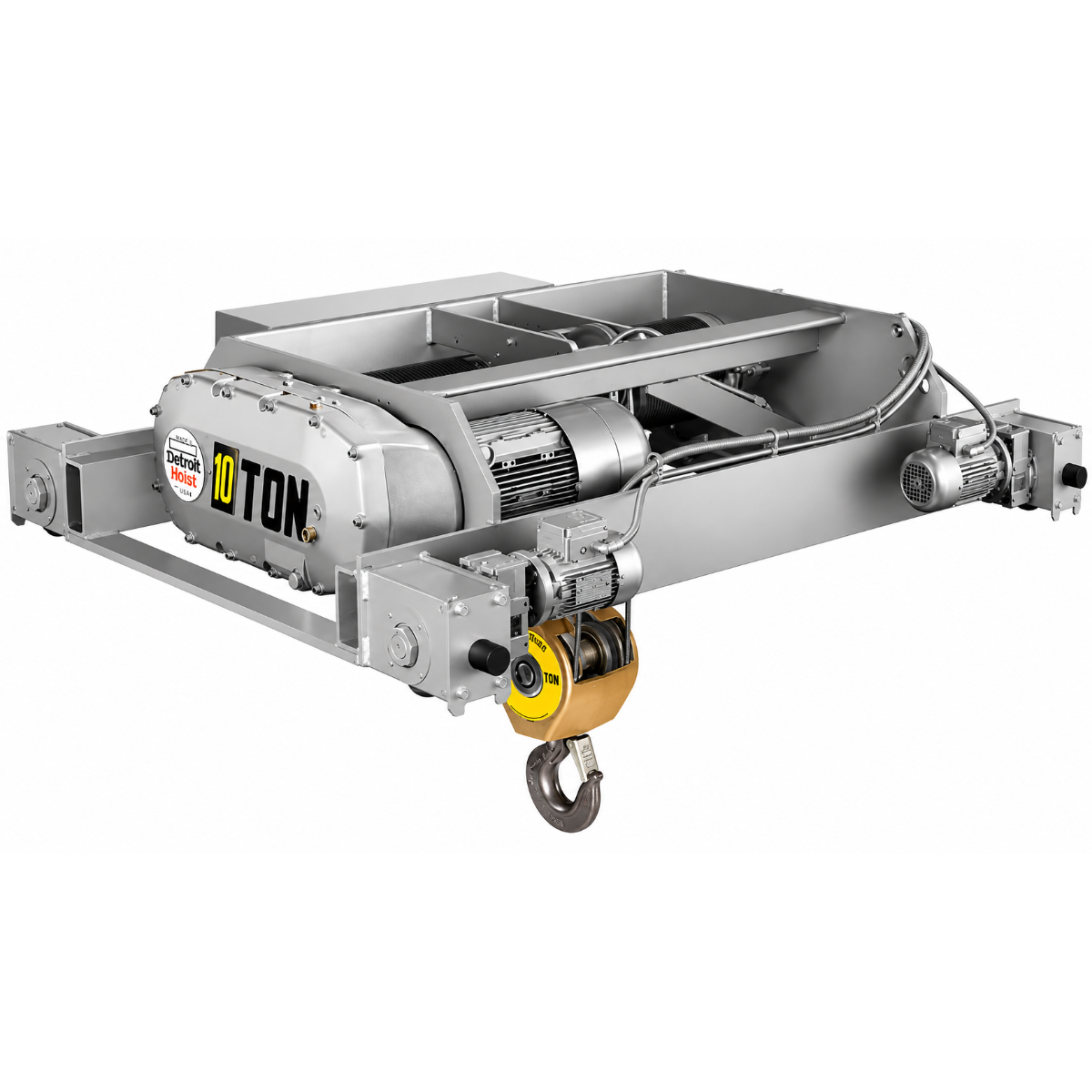

Capacity: 11.00 Ton, Reeving/Lift: 3 PD | 38'­8", Hoist Lift Speed: 18.00 FPM Max, Volt: 230VAC­3PH­60HZ +­5%, DB22T38­-18 Detroit

Product Overview

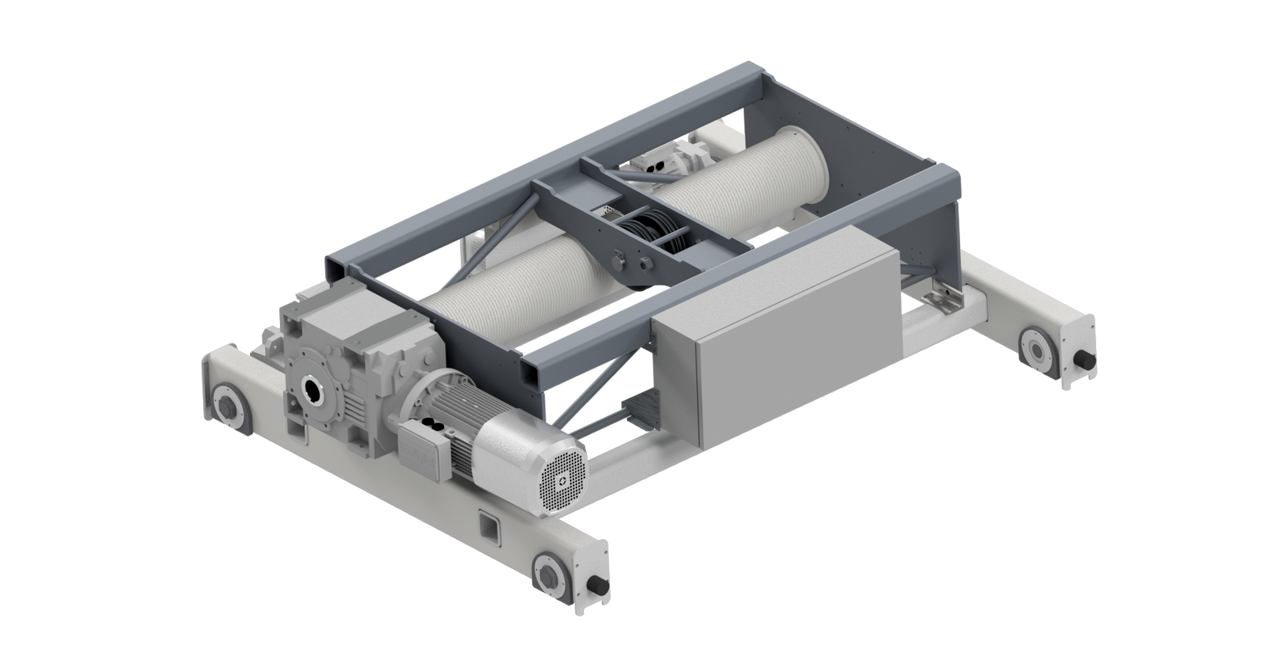

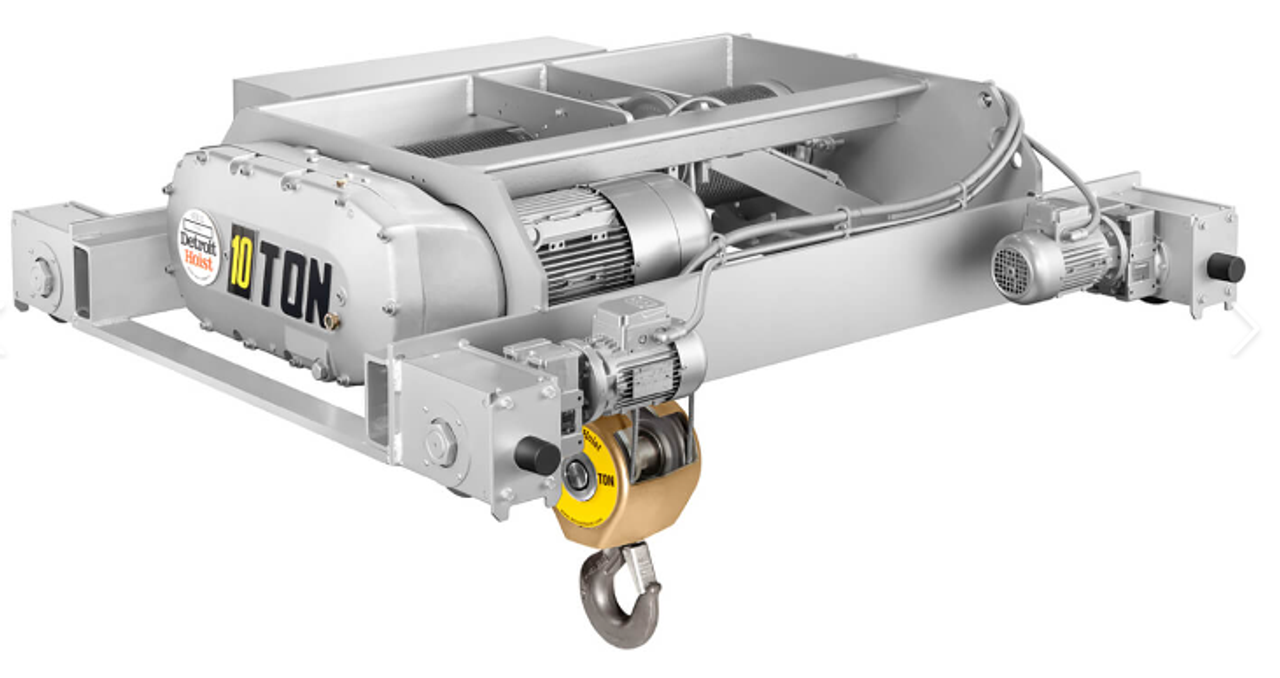

Type: Suspension / Mount Top Running Double Girder

Capacity: The Model DB22T38-18 is engineered with an impressive lifting capacity of 11.00 tons, making it the go-to solution for heavy-duty lifting tasks in various industrial environments. Its robust design and high capacity ensure reliable and efficient handling of large and heavy loads with ease.

Reeving | Lift: Featuring a 3-part reeving system, this model offers a lift height of 38 feet and 8 inches, providing substantial vertical reach for lifting tasks requiring significant elevation. Whether it's in manufacturing, construction, or material handling operations, this system ensures optimal reach and adaptability to meet diverse lifting requirements.

Hoist Lift Speed: With a maximum hoist lift speed of 18.00 feet per minute (FPM), the Model DB22T38-18 facilitates swift and efficient vertical movement of loads. Its high-speed operation enables quick lifting and lowering of heavy materials, contributing to enhanced productivity and reduced downtime.

Hoist Motor: Equipped with a powerful 10.4 kW hoist motor, this system delivers exceptional performance and torque for lifting heavy loads with ease. Whether it's lifting machinery, equipment, or components, this motor provides reliable and controlled movement, optimizing operational efficiency and safety.

Hoist Control: Utilizing closed-loop vector Variable Frequency Drive (VFD) control, the Model DB22T38-18 offers precise and responsive hoisting operations. This advanced control system ensures accurate speed regulation, load handling, and positioning, enhancing performance and safety during lifting operations.

Trolley Speed: With a maximum trolley speed of 80.00 FPM, this system enables rapid and precise horizontal movement of loads along the girder tracks. Whether it's transporting materials within a facility or positioning heavy components, the Model DB22T38-18 ensures efficient handling and maneuverability, contributing to overall operational efficiency.

Trolley Motor: Featuring two motors, each rated at 0.55 kW, the trolley system provides ample power for smooth and controlled movement across the working area. Whether it's traversing long distances or performing precise positioning tasks, these motors deliver the necessary propulsion for reliable and efficient trolley operation.

Trolley Control: Employing sensorless vector VFD control, the trolley movement is precisely regulated, ensuring accurate positioning and smooth operation. This advanced control system allows for responsive and precise trolley movements, optimizing efficiency and safety during material handling tasks.

Power Supply: Operating on electric power with a voltage rating of 230VAC, 3-phase, and a frequency of 60Hz (+5% tolerance), the Model DB22T38-18 is compatible with standard electrical systems. This ensures ease of integration into existing infrastructure, providing seamless operation and reliability.

CMAA Class | Atmosphere | Location Class: Compliant with CMAA standards and designed for indoor service in atmosphere class D conditions, the Model DB22T38-18 ensures reliability and safety in various operating environments. Additionally, its weather-resistant design enhances durability and performance, allowing for operation in diverse weather conditions.

Trolley Gauge: The trolley gauge measures 66.0000 inches, providing stability and proper alignment during horizontal movement along the girder tracks. This ensures smooth and reliable trolley operation, enhancing safety and efficiency during material handling tasks.

Approximate Weight: Weighing approximately 2000.00 lbs, the Model DB22T38-18 offers a sturdy and robust construction, ensuring durability and stability during lifting operations. Its solid build quality and reliable components contribute to its overall performance and longevity in demanding industrial environments.

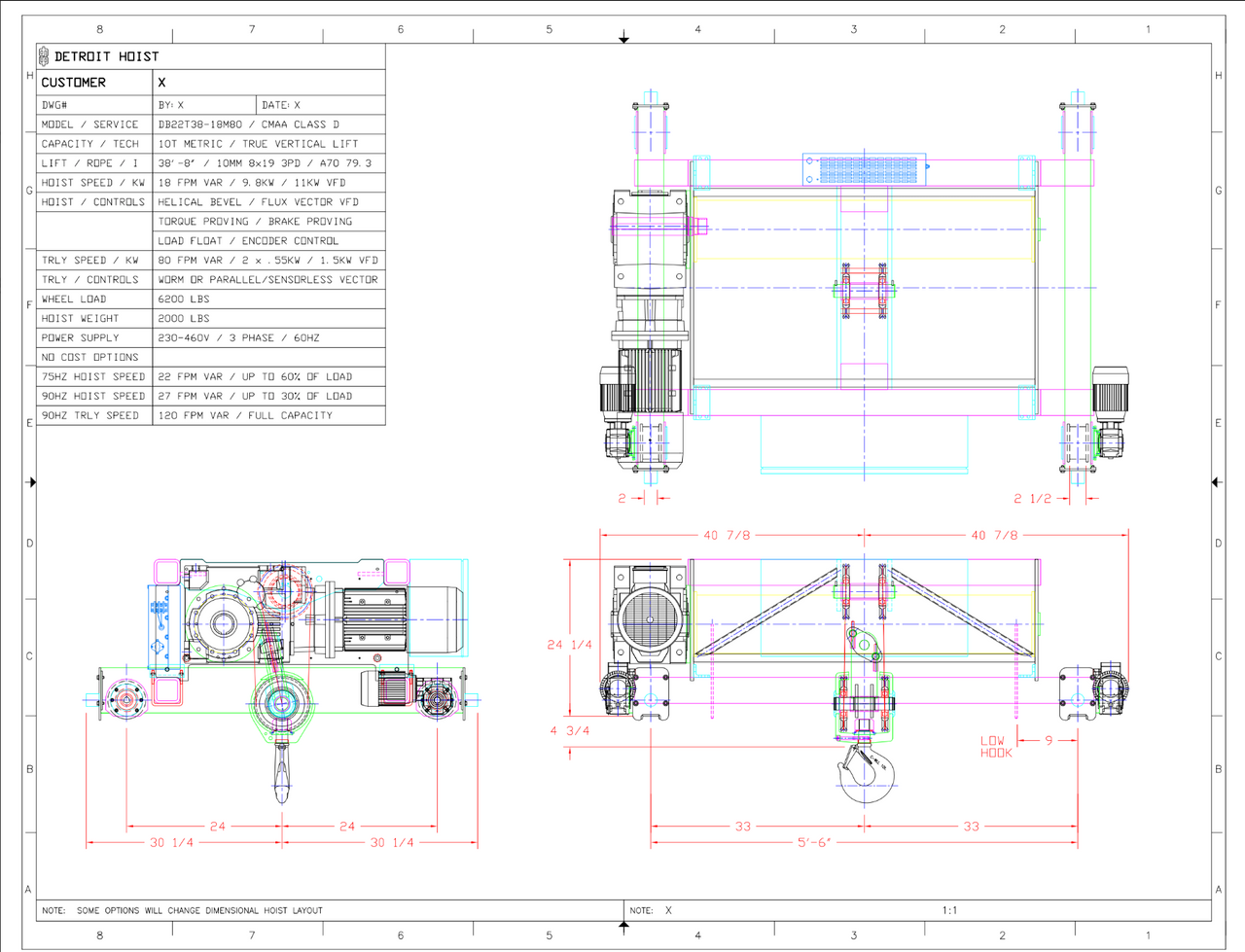

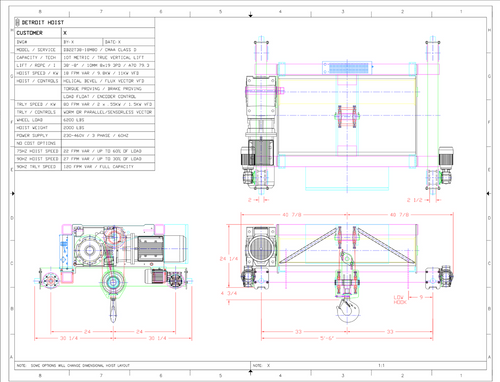

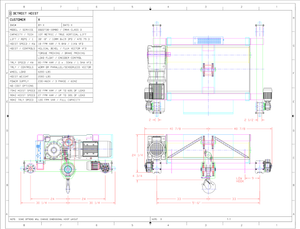

Model DB22T38-­18
Suspension / Mount Top Running Double Girder
Capacity 11.00 Ton
Reeving | Lift 3 PD | 38'­8"
Hoist Lift Speed 18.00 FPM Max
Hoist Motor 10.4 KW
Hoist Control Closed­loop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC­3PH­60HZ +­5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 66.0000"
Approximate Weight 2000.00 lbs

MODEL FEATURES

4­pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4­pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist ­ closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist ­ 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist ­ 100% dynamic braking with resistor or regenerative converter.
Hoist ­ over­weight protection through frequency drive with 3% accuracy.
Trolley ­ open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
