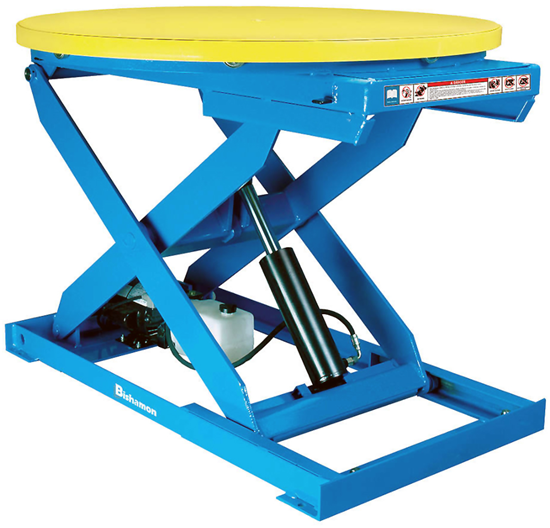

Bishamon L5K-TT Heavy-Duty Electric Hydraulic Lift Table with Turntable

5,000 lb Capacity | Integrated Rotating Platform | Enhanced Ergonomics

The Bishamon L5K-TT combines the robust lifting power of the L5K Series with the added flexibility of a built-in rotating turntable. Designed for heavy-duty industrial environments, this table lift provides superior material positioning, reducing operator strain and improving workflow efficiency during loading, assembly, or maintenance tasks.

The integrated turntable allows for smooth 360-degree rotation, enabling operators to work on loads from any angle without excessive reaching or repositioning. This makes the L5K-TT ideal for applications requiring frequent access to all sides of a pallet or product.

Key Features

• 5,000 lb Capacity – Handles heavy-duty materials with ease
• Integrated Turntable Top – Full rotation for ergonomic positioning and access
• Electric Hydraulic Operation – Quiet, powerful, and consistent lifting performance
• Heavy-Duty Steel Construction – Built to endure tough industrial use
• Ergonomic Design – Minimizes bending, reaching, and lifting-related injuries
• Safety Features – Includes mechanical stops, pressure relief valve, and toe guards
• Powder Coat Finish – Protects against wear and corrosion
• ANSI MH29.1 Compliant – Meets industry safety standards
• Made in the USA

Technical Specifications

Model L5K-TT

Capacity 5,000 lbs

Platform Size 43" Dia.

Vertical Travel 39.25 in

Lowered Height 11.87 in

Raised Height 51.12 in

Turntable Type Built-in, full 360° rotation

Lift Mechanism Electric hydraulic scissor lift

Power Supply 115V, 1-Phase (other options available)

Control Type Push-button pendant

Construction All-steel frame with heavy welds

Finish Baked powder coat

Compliance ANSI MH29.1

Origin Made in the USA
