Bishamon Optimus Lift 3K Series Lift Table

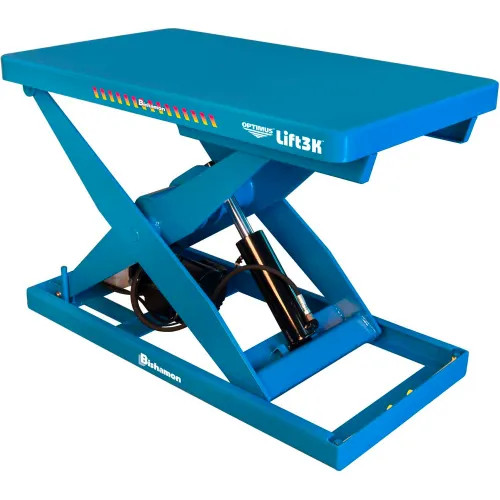

Bishamon L3K-Special Electric Hydraulic Scissor Lift Table

3,000 lb Capacity | Custom Platform | High-Performance Ergonomic Lift Solution

The Bishamon L3K-Special is a custom-engineered solution from the trusted Lift3K™ Series, built to handle demanding applications requiring precise lifting and unique platform dimensions or configurations. With a robust 3,000 lb capacity, this electric hydraulic lift table is perfect for high-cycle environments that demand strength, safety, and ergonomic efficiency. Made to reduce operator fatigue and improve productivity, the L3K-Special raises loads to optimal working heights with smooth, controlled motion. Whether you need a special platform size, integrated fixtures, or a unique load-handling design, this lift table delivers heavy-duty performance customized to your workflow.

Key Features

• Custom-Built Platform – Designed to meet unique dimensional or functional requirements
• 3,000 lb Load Capacity – Heavy-duty lifting for industrial-grade applications
• Ergonomic Positioning – Reduces repetitive strain injuries and boosts productivity
• Electric Hydraulic Operation – Smooth and quiet powered lifting
• Heavy-Gauge Steel Construction – Built for durability and long service life
• Compact Lowered Height – Easy to load and unload without deep pits
• Meets ANSI Standards – Designed in compliance with ANSI MH29.1 safety standards
• Made in the USA – High-quality craftsmanship and reliable support

Typical Customizations May Include

• Custom platform sizes/shapes (e.g., oversized, extended, or recessed tops)
• Built-in turntables or conveyors
• Tilt functionality for work angle adjustment
• Unique color or finish
• Fixtures for holding irregular loads

Base Specifications (Typical for L3K Series)

SpecificationDetails

Model L3K-Special

Load Capacity 3,000 lbs

Vertical Travel 36 inches (typical)

Lowered Height 8.5 inches (varies by design)

Raised Height 44.5 inches (typical)

Lift Mechanism Electric hydraulic

Power Supply 115V, 1-Phase

Platform Size Custom (Standard: 28" x 48", 36" x 48")

Construction Welded steel frame

Origin Made in USA

Ideal For

• Manufacturing or assembly with special components
• Ergonomic workstations with non-standard size needs
• Cleanroom or controlled environments (when specified)
• Custom pallet handling systems
