Bishamon Compact Lift Table

Write a Review
$1,820.00
SKU: X-50C
Availability: Subject to Availability
Weight: 302.00 LBS
Width: 25.00 (in)
Height: 25.00 (in)
Depth: 52.00 (in)
Shipping: Calculated at Checkout
Capacity: 1,000 - 2,499 lbs
Style: Scissor Lift Table
Travel: 25.5 in
Table Size: 20.0 x 40.0 in
Table Height Min: 6.0 in
Table Height Max: 31.5 in
Power Type: Manual Foot Pedal
Shipping Weight: 253 lbs
Adding to cart… The item has been added
Bishamon Compact Lift Table

Bishamon Compact Lift Table

$1,820.00

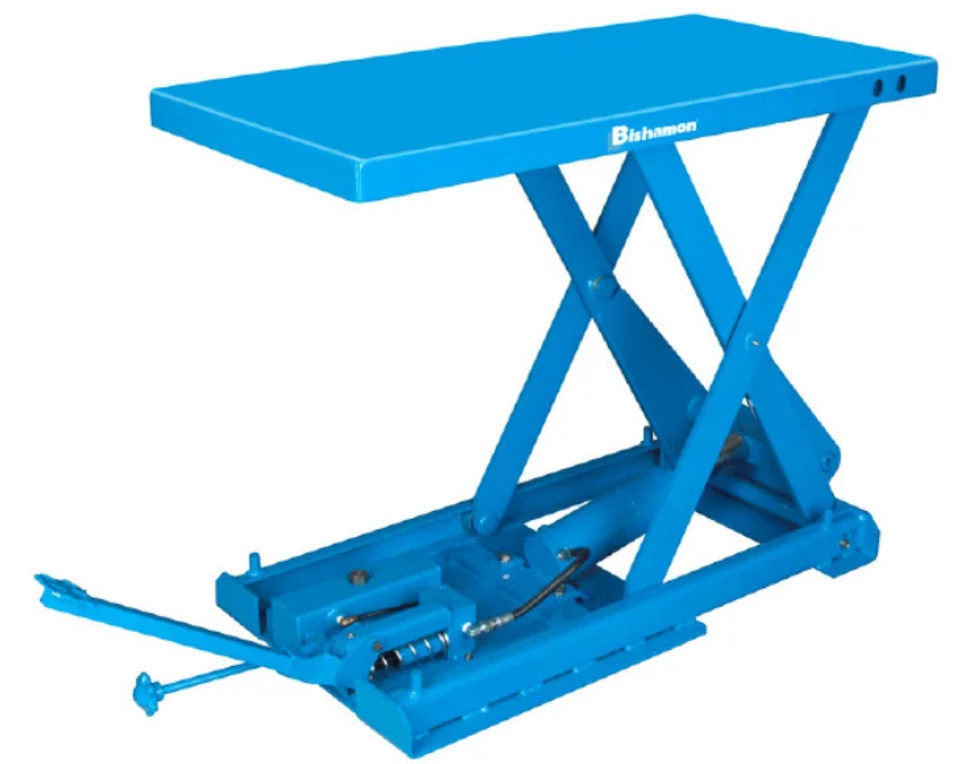

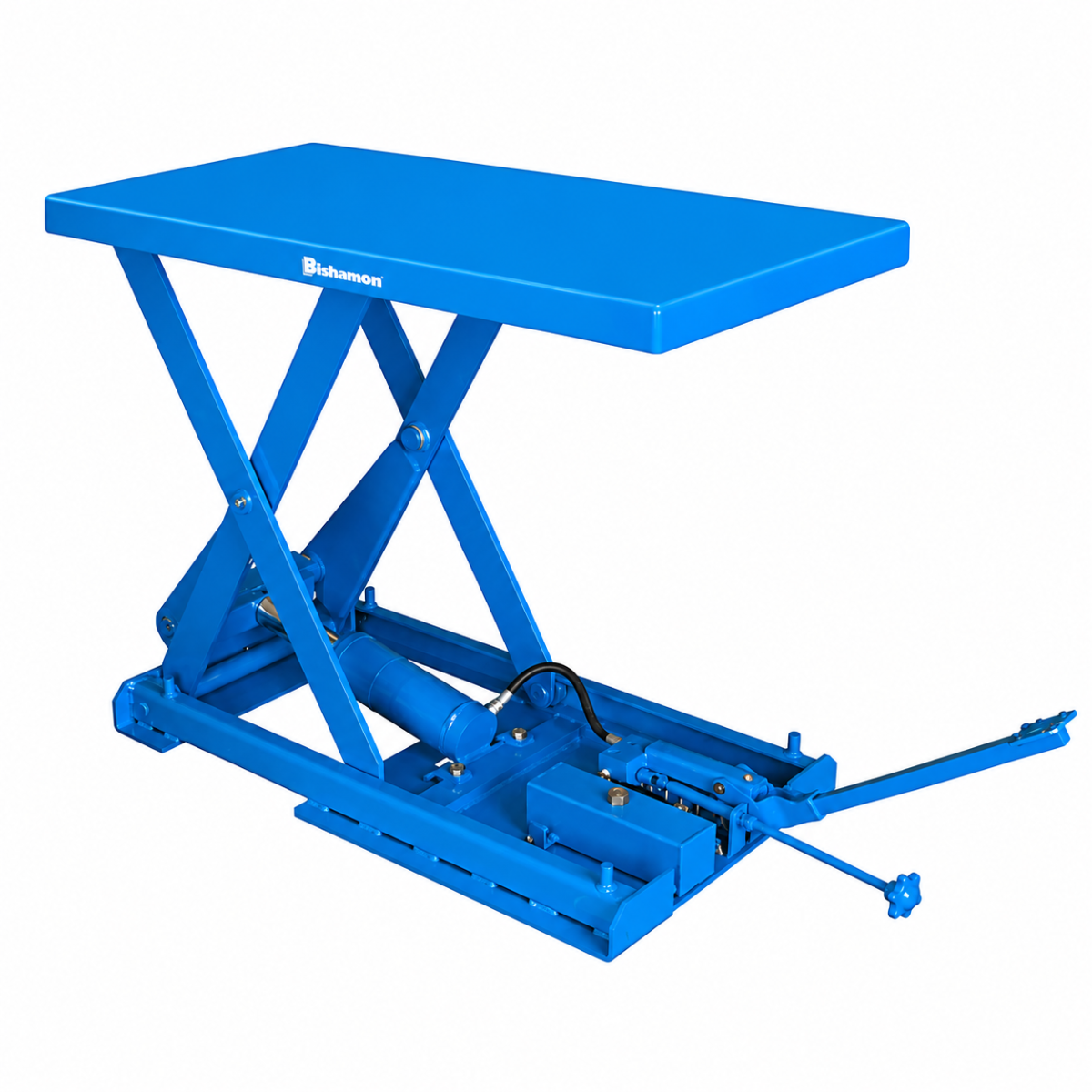

Bishamon X-50C Manual Scissor Lift Table

Reliable Manual Lifting for Medium-Duty Tasks

The Bishamon X-50C is a manual foot pump-operated scissor lift table designed for safe and ergonomic material handling. With a 1,100 lb. capacity and 22 inches of vertical travel, this model delivers smooth, controlled lifting for medium-duty applications such as assembly lines, repair stations, packaging, and shipping areas.

The X-50C features a rugged steel construction, a 20.0 x 40.0 inch platform, and a simple-to-use foot pedal mechanism for consistent, dependable lifting. It’s ideal for facilities seeking cost-effective lifting solutions without the need for electric or air connections.

Key Features

  • Manual Foot Pump Operation: Simple, low-maintenance lifting mechanism
  • Medium-Duty Capacity: Lifts up to 1,100 lbs with ease
  • Smooth Foot Pedal Control: Allows for incremental height adjustment
  • Heavy-Duty Steel Frame: Engineered for industrial environments
  • Compact Footprint: Fits easily in work cells and tight spaces
  • Powder-Coated Finish: Durable and corrosion-resistant coating

Common Uses

  • Production and assembly stations
  • Quality control and inspection tables
  • Repair benches and maintenance areas
  • Packing and shipping departments

Technical Specifications – X-50C

FeatureSpecification

Model X-50C

Lift Mechanism Manual Foot Pedal Pump

Capacity 1,100 lbs

Travel (Lift Height) 22.0 inches

Table Size (W x L) 20.0 x 40.0 inches

Lowered Height 6.0 inches

Raised Height 28.0 inches

Strokes to Max Height 46 strokes

Construction Welded steel frame

Finish Powder-coated blue

Ship Weight 253 lbs

This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
