Bishamon Compact Lift Table 1100 lb Capacity Hand Control

Write a Review
$3,003.00
SKU: X-50E
Availability: Subject to Availability
Weight: 284.00 LBS
Width: 25.00 (in)
Height: 25.00 (in)
Depth: 52.00 (in)
Shipping: Calculated at Checkout
Capacity: 1,000 - 2,499 lbs
Style: Scissor Lift Table
Travel: 25.5 in
Table Size: 20.0 x 40.0 in
Table Height Min: 6.0 in
Table Height Max: 31.5 in
Power Type: Electric/Hydraulic, 115V
Shipping Weight: 285 lbs
Adding to cart… The item has been added
Bishamon Compact Lift Table 1100 lb Capacity Hand Control

Bishamon Compact Lift Table 1100 lb Capacity Hand Control

$3,003.00

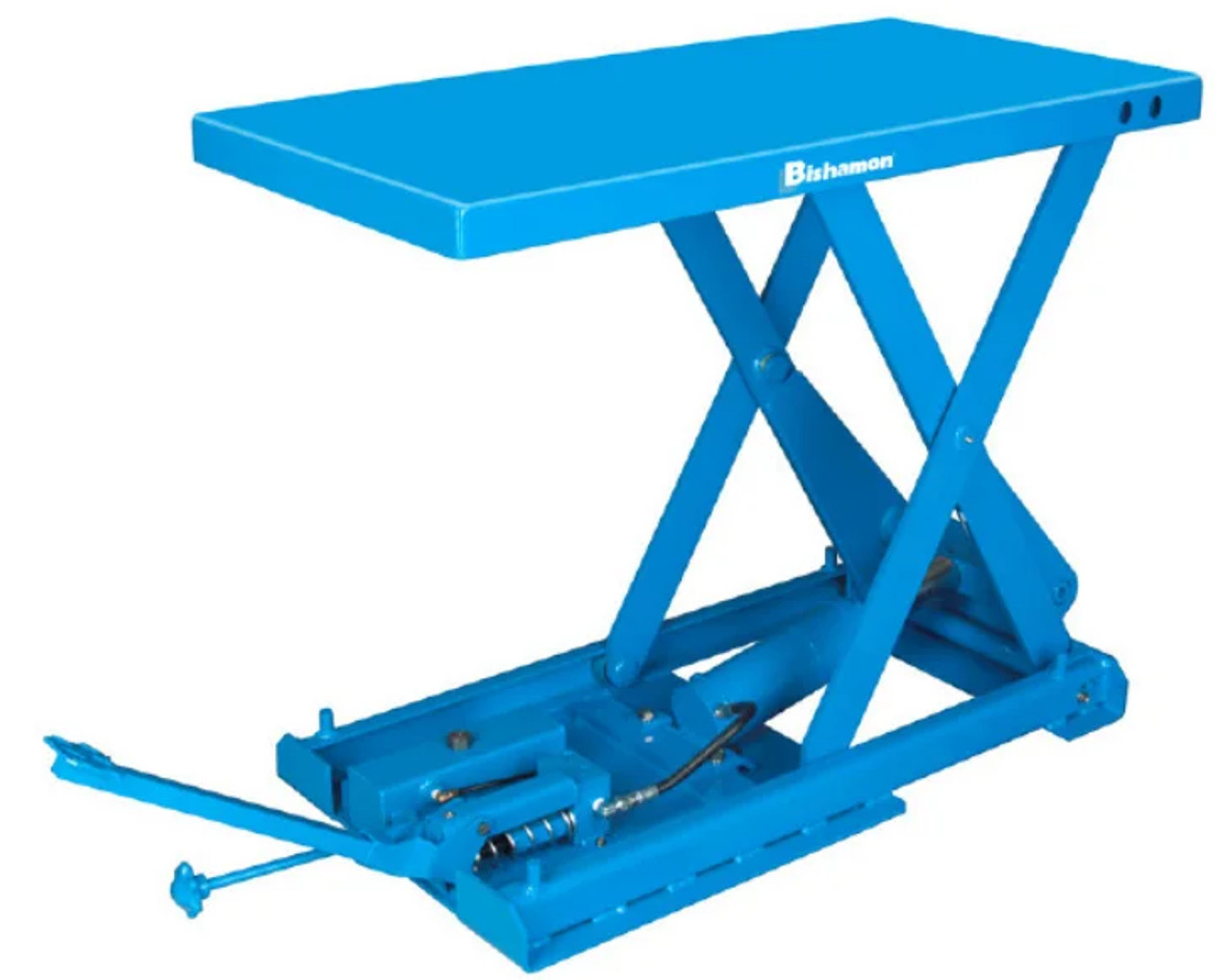

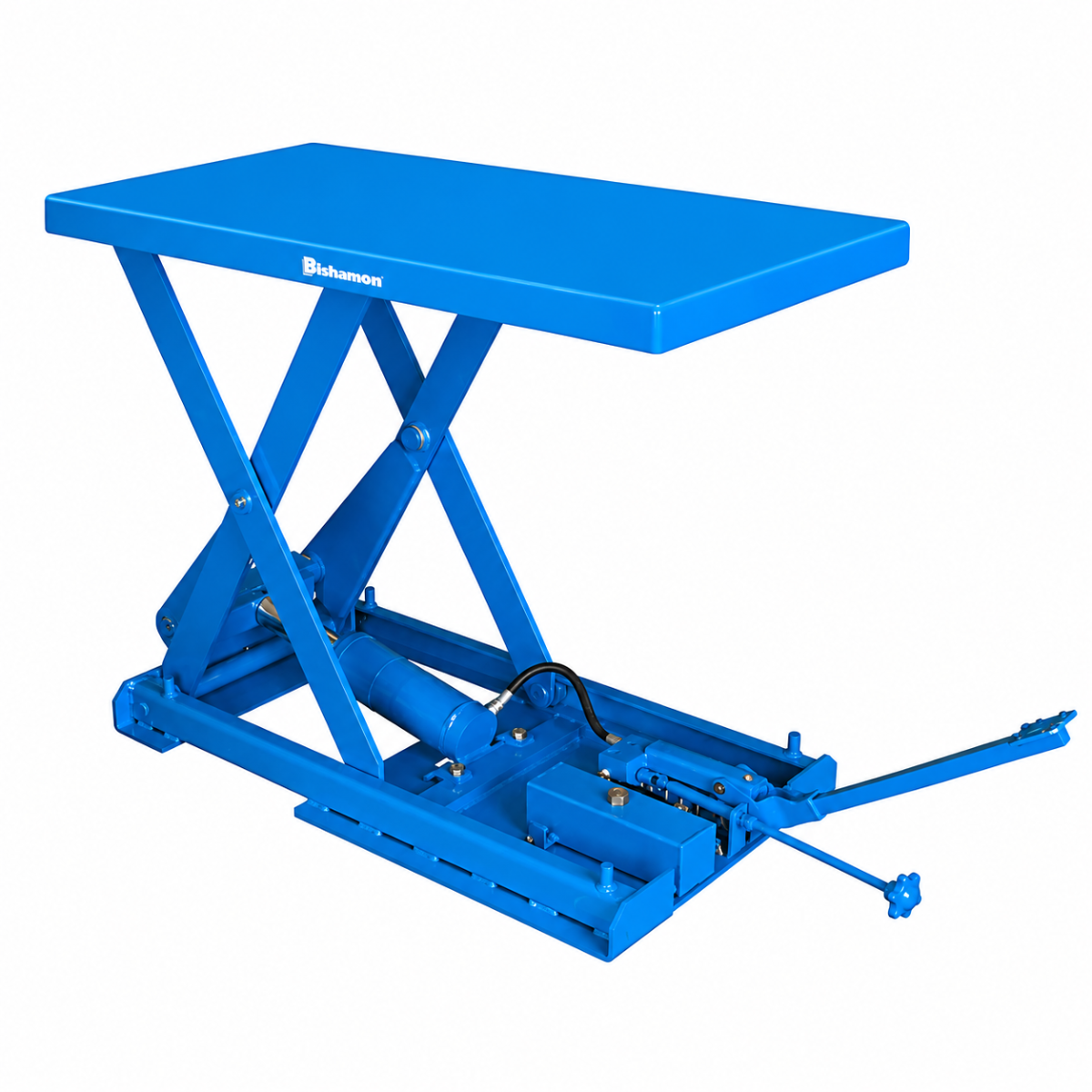

Bishamon X-50E Electric Hydraulic Scissor Lift Table

Power-packed lifting for Heavy-Duty Tasks

The Bishamon X-50E is an electric-hydraulic scissor lift table engineered for efficiency, safety, and ergonomic material handling. With a 1,100 lb. lifting capacity, this model offers 22 inches of vertical travel, making it ideal for production lines, warehouses, and other industrial environments that require frequent lifting and positioning of materials.

Powered by a reliable electric motor and hydraulic pump, the X-50E allows for effortless lifting at the touch of a button. Its 20 x 40-inch solid steel platform provides ample working space, while its heavy-duty construction ensures long-term durability in demanding applications.

Key Features

  • Electric Hydraulic Operation: Fast, reliable, and hands-free lifting
  • High Load Capacity: Lifts up to 1,100 lbs
  • Easy Push-Button Control: Improves productivity and reduces operator strain
  • Heavy-Duty Steel Frame: Built to last in tough industrial environments
  • Compact Design: Fits seamlessly into work cells or production lines
  • Powder-Coated Finish: Protects against corrosion and wear

Ideal For

  • Manufacturing and assembly operations
  • Material handling and order picking
  • Packing and inspection stations
  • Heavy-component repair work

Technical Specifications – X-50E

FeatureSpecification

Model X-50E

Lift Mechanism Electric Hydraulic

Capacity 1,100 lbs

Travel (Lift Height) 22.0 inches

Table Size (W x L) 20.0 x 40.0 inches

Lowered Height 6.0 inches

Raised Height 28.0 inches

Raise Time (Unloaded) 17 seconds

Power Source 115V AC

Motor Electric with hydraulic pump

Construction Welded steel frame

Finish Durable powder coat (Blue)

Ship Weight 293 lbs

This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
