Bishamon Lo-Profile Lift Table 1100 lb Capacity Hand Control

Write a Review
$4,277.00
SKU: LX-50S -H
Availability: Subject to Availability
Weight: 322.00 LBS
Width: 24.00 (in)
Height: 22.00 (in)
Depth: 52.00 (in)
Shipping: Calculated at Checkout
Capacity: 1,000 - 2,499 lbs
Style: Scissor Lift Table
Table Size: 23.5 x 32.5 in
Table Height Min: 2.9 in
Table Height Max: 20.9 in
Power Type: 1/2 HP, 115V
Shipping Weight: 228 lbs
Adding to cart… The item has been added
Bishamon Lo-Profile Lift Table 1100 lb Capacity Hand Control

Bishamon Lo-Profile Lift Table 1100 lb Capacity Hand Control

$4,277.00

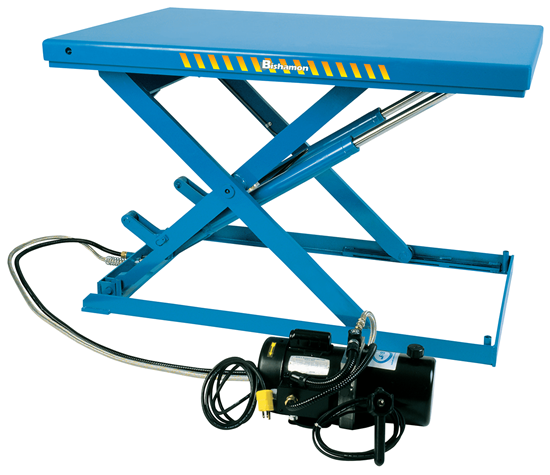

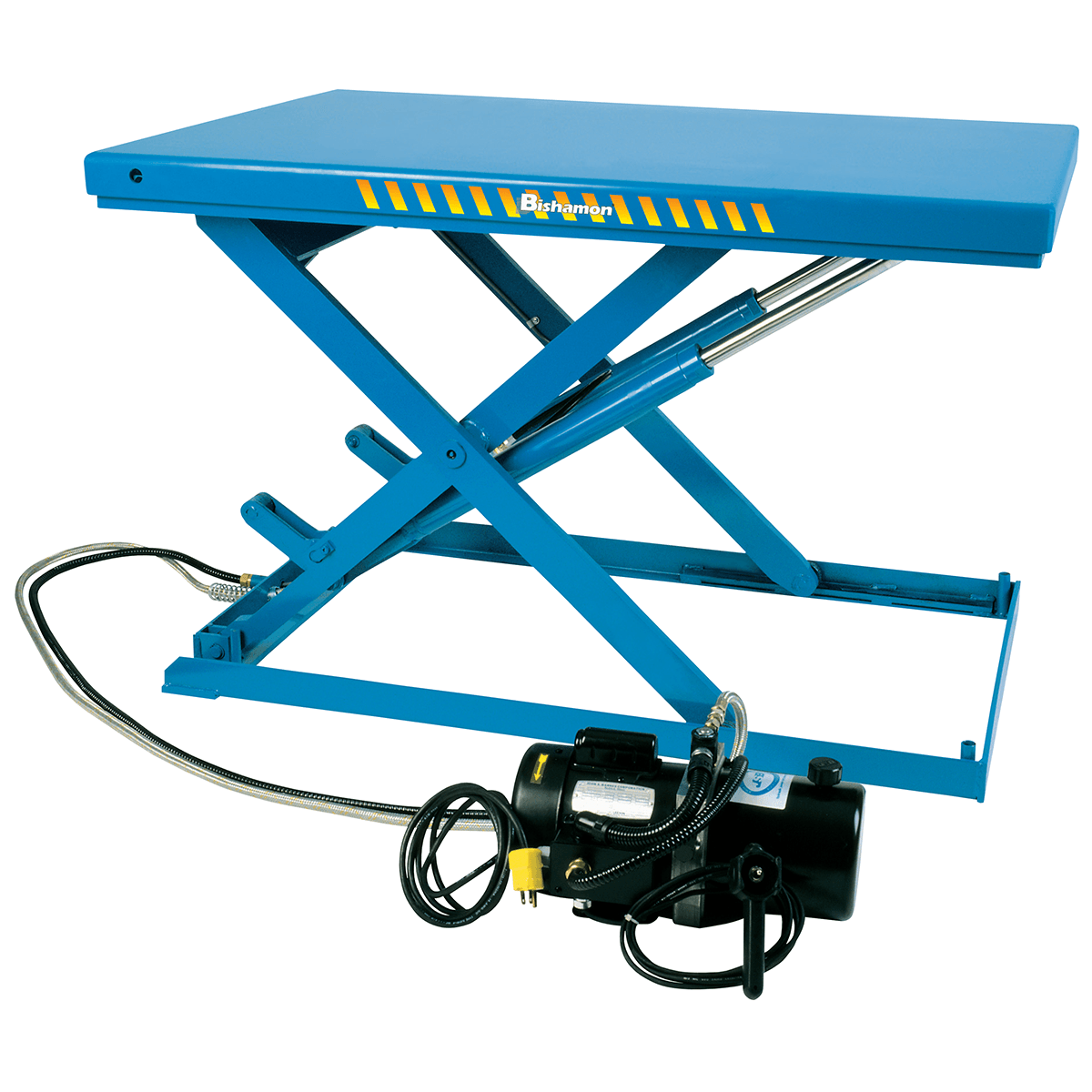

Bishamon LX-50S – Manual Hydraulic Scissor Lift Table (1,100 lb Capacity)

Heavy-Duty Lifting. Precision Control. Industrial Durability.

The Bishamon LX-50S is a manual hydraulic scissor lift table engineered to safely lift, position, and transport heavier loads up to 1,100 lbs (500 kg). Designed with a single-scissor lift mechanism, this table combines robust construction, ease of use, and exceptional durability—ideal for industrial, warehouse, repair, and production environments.

Equipped with a foot-operated hydraulic pump, the LX-50S offers hands-free lifting control, while its polyurethane wheels and swivel casters with brakes ensure smooth mobility and reliable stability. Its all-steel frame with a high-quality powder-coated finish provides protection from daily wear and tear, making it a dependable solution for long-term use.

Key Features

  • High Capacity – Handles loads up to 1,100 lbs (500 kg)
  • Manual Hydraulic Operation – Foot pump for smooth, controlled lifting
  • Durable Platform – Solid steel deck withstands industrial applications
  • Mobility & Stability – Easy-rolling polyurethane wheels with locking brakes
  • Ergonomic Design – Reduces operator fatigue from repetitive lifting
  • No Assembly Required – Ships ready for immediate use

Applications

  • Manufacturing and assembly lines
  • Shipping and receiving stations
  • Machine shops and repair facilities
  • Warehouses and distribution centers

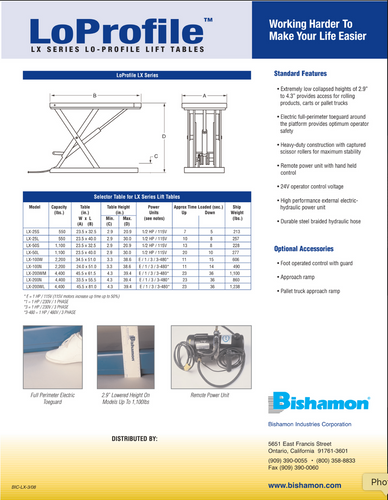

Technical Specifications – Bishamon LX-50S

SpecificationDetails

Model LX-50S

Load Capacity 1,100 lbs (500 kg)

Lift Mechanism Manual hydraulic (foot pump)

Platform Size Approx. 32" L x 20" W (may vary slightly)

Lowered Height Approx. 11 inches

Raised Height Approx. 35 inches

Wheel Type Polyurethane

Wheel Configuration 2 swivel with brake, 2 rigid

Frame Material Steel, powder-coated finish

Lift Control Foot pump with hand-operated lowering

Color Blue

This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
