Bishamon Lo-Profile Lift Table 1100 lb Capacity Hand Control

Write a Review
$4,777.50
SKU: LX-50L- H
Availability: Subject to Availability
Weight: 342.00 LBS
Width: 24.00 (in)
Height: 22.00 (in)
Depth: 52.00 (in)
Shipping: Calculated at Checkout
Capacity: 1,000 - 2,499 lbs
Style: Scissor Lift Table
Table Size: 23.5 x 40.0 in
Table Height Min: 2.9 in
Table Height Max: 30.0 in
Power Type: 1/2 HP, 115V
Shipping Weight: 277 lbs
Adding to cart… The item has been added
Bishamon Lo-Profile Lift Table 1100 lb Capacity Hand Control

Bishamon Lo-Profile Lift Table 1100 lb Capacity Hand Control

$4,777.50

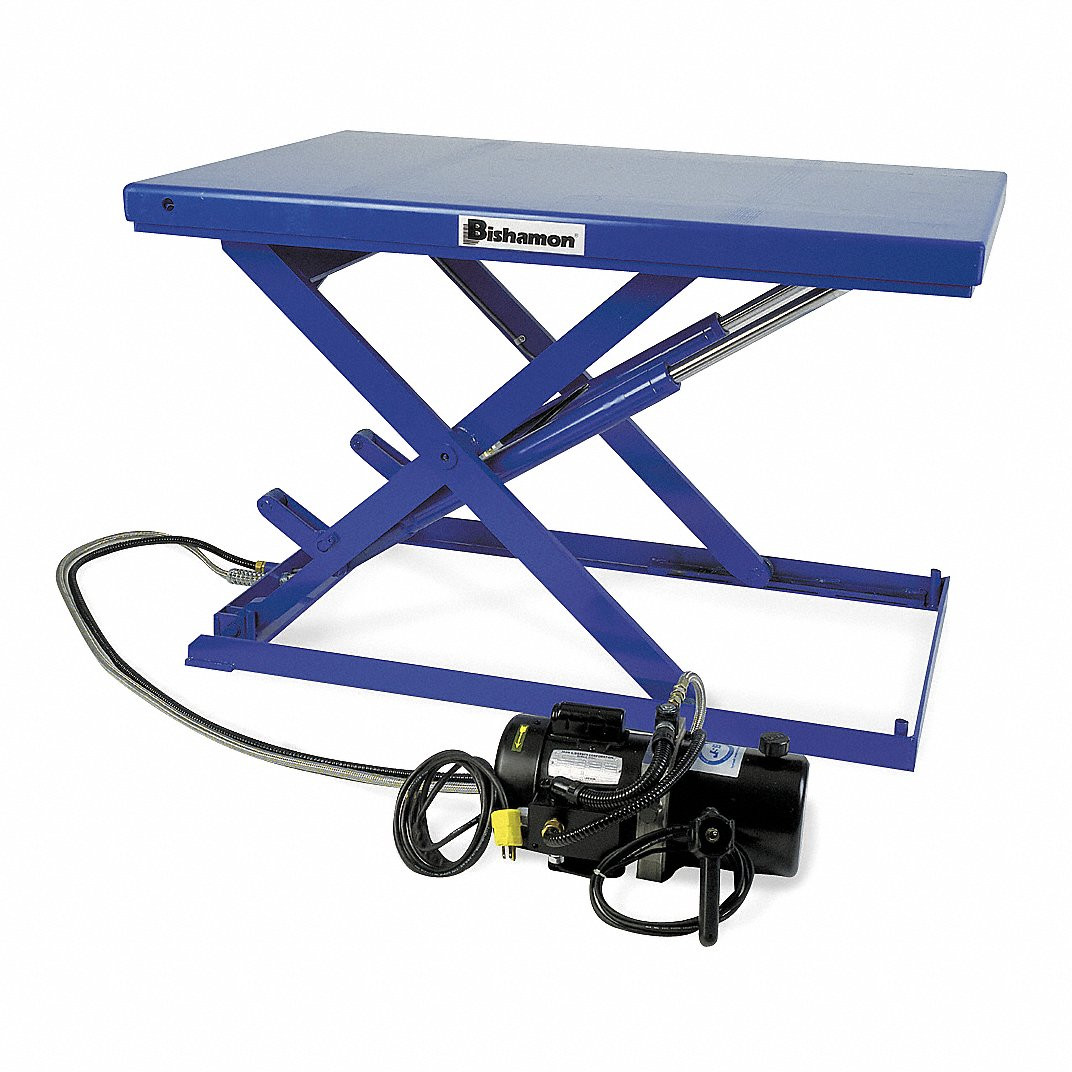

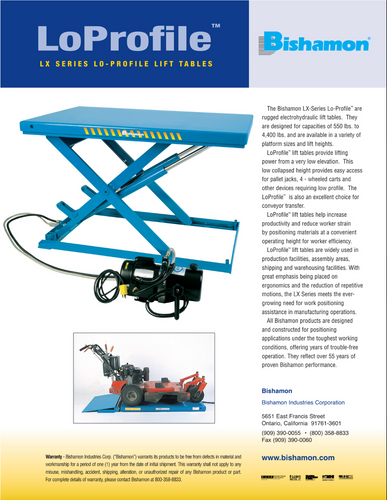

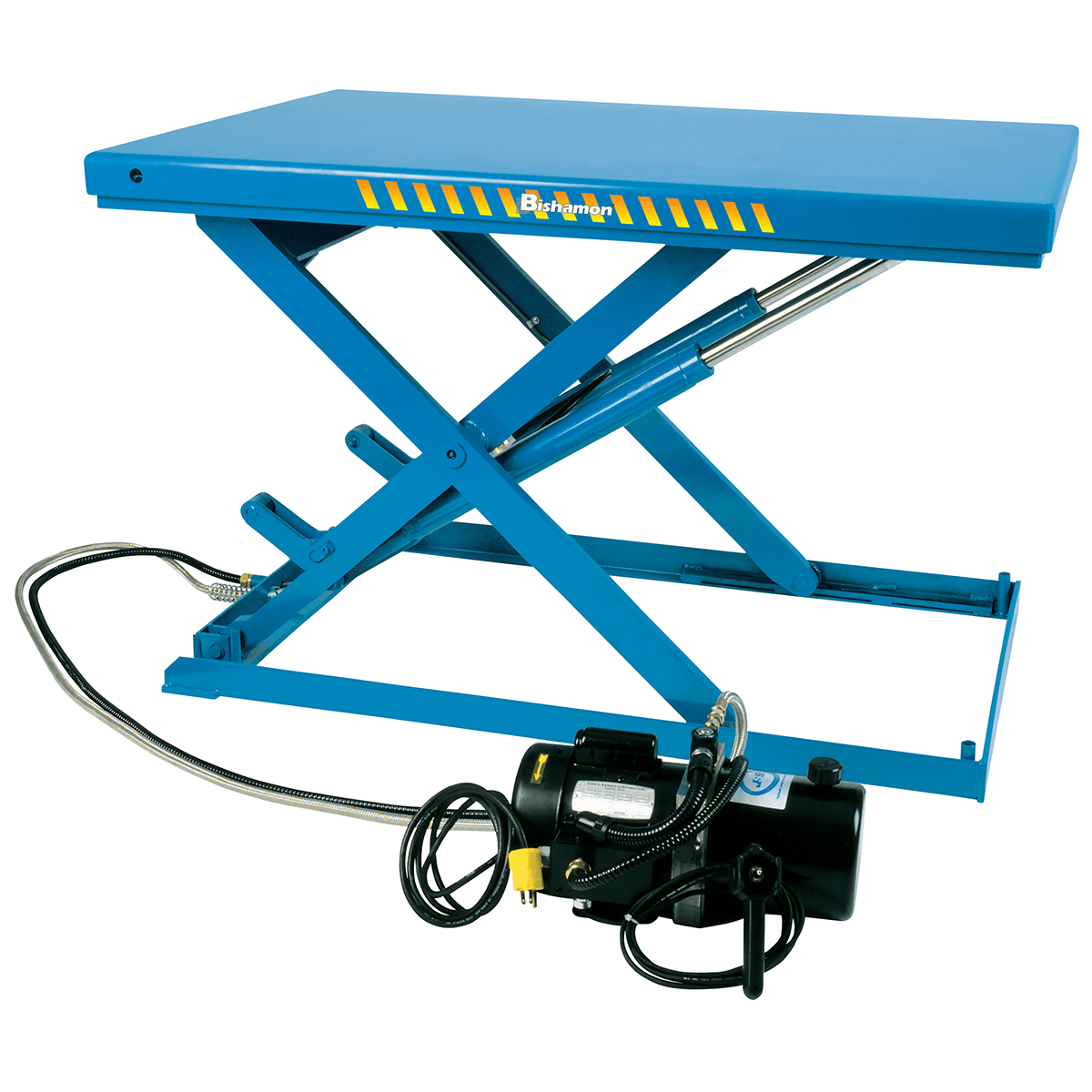

Bishamon LX-50L – Low-Profile Manual Scissor Lift Table (1,100 lb Capacity)

Low Clearance. Heavy-Duty Performance. Ergonomic Lifting Solution.

The Bishamon LX-50L is a low-profile manual hydraulic scissor lift table built to safely lift and position loads up to 1,100 lbs (500 kg) with minimal ground clearance. Designed for easy loading with carts or pallet jacks, its ultra-low platform height reduces the strain of lifting heavy items onto the table—improving ergonomics and operator safety.

Featuring a foot-operated hydraulic pump, the LX-50L allows for precise, hands-free lifting. The rugged steel frame and powder-coated finish provide excellent durability, while the polyurethane casters ensure smooth mobility and stability. Perfect for use in warehouses, factories, shipping departments, and production lines, the LX-50L offers the reliability and efficiency Bishamon is known for.

Key Features

  • Low-Profile Platform – Easier loading from the floor or carts
  • 1,100 lb Load Capacity – Heavy-duty support for industrial tasks
  • Manual Hydraulic Lift – Foot pedal operation with hand release
  • Durable Construction – Powder-coated steel frame for long-term use
  • Mobility & Safety – Polyurethane wheels with brakes for smooth transport and secure positioning
  • No Assembly Required – Ready to work out of the box

Ideal Applications

  • Manufacturing and assembly operations
  • Loading/unloading stations
  • Ergonomic work positioning
  • Maintenance and repair shops

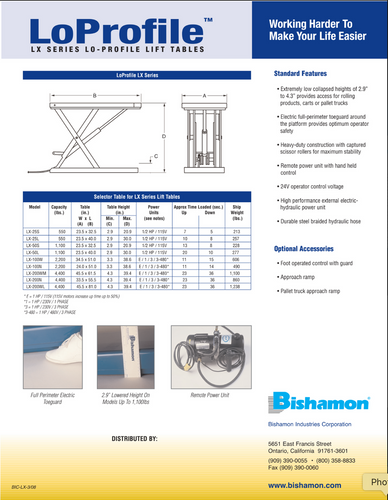

Technical Specifications – Bishamon LX-50L

SpecificationDetails

Model LX-50L

Load Capacity 1,100 lbs (500 kg)

Lift Mechanism Manual hydraulic (foot pump)

Platform Size Approx. 32" L x 20" W (dimensions may vary)

Lowered Height Approx. 3.25 inches (low-profile)

Raised Height Approx. 29 inches

Lift Control Foot-operated pump, hand-lowering lever

Wheel Type Polyurethane

Wheel Configuration 2 swivel with brake, 2 rigid

Frame Material Powder-coated steel

Color Bishamon Blue

This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
