Product Overview

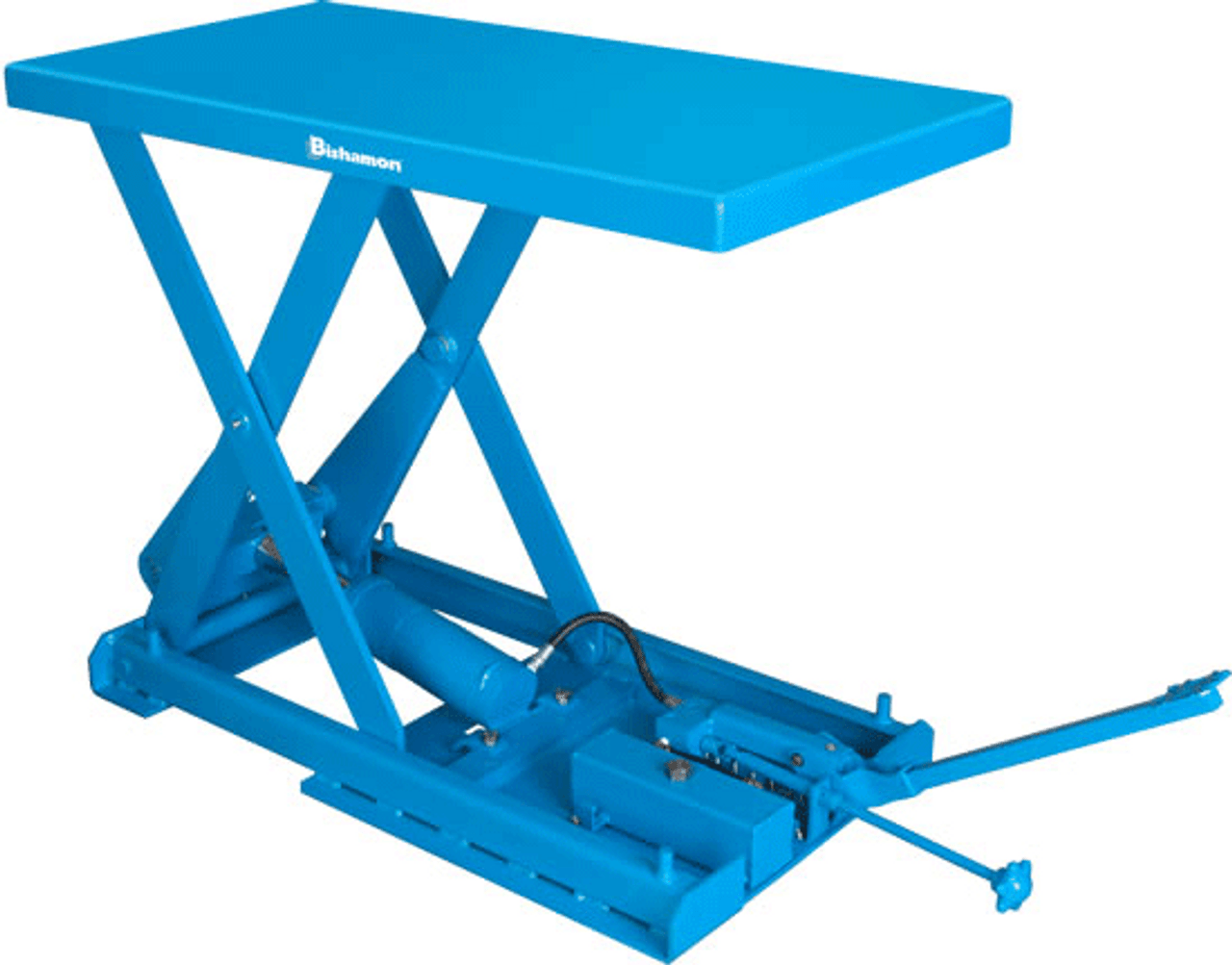

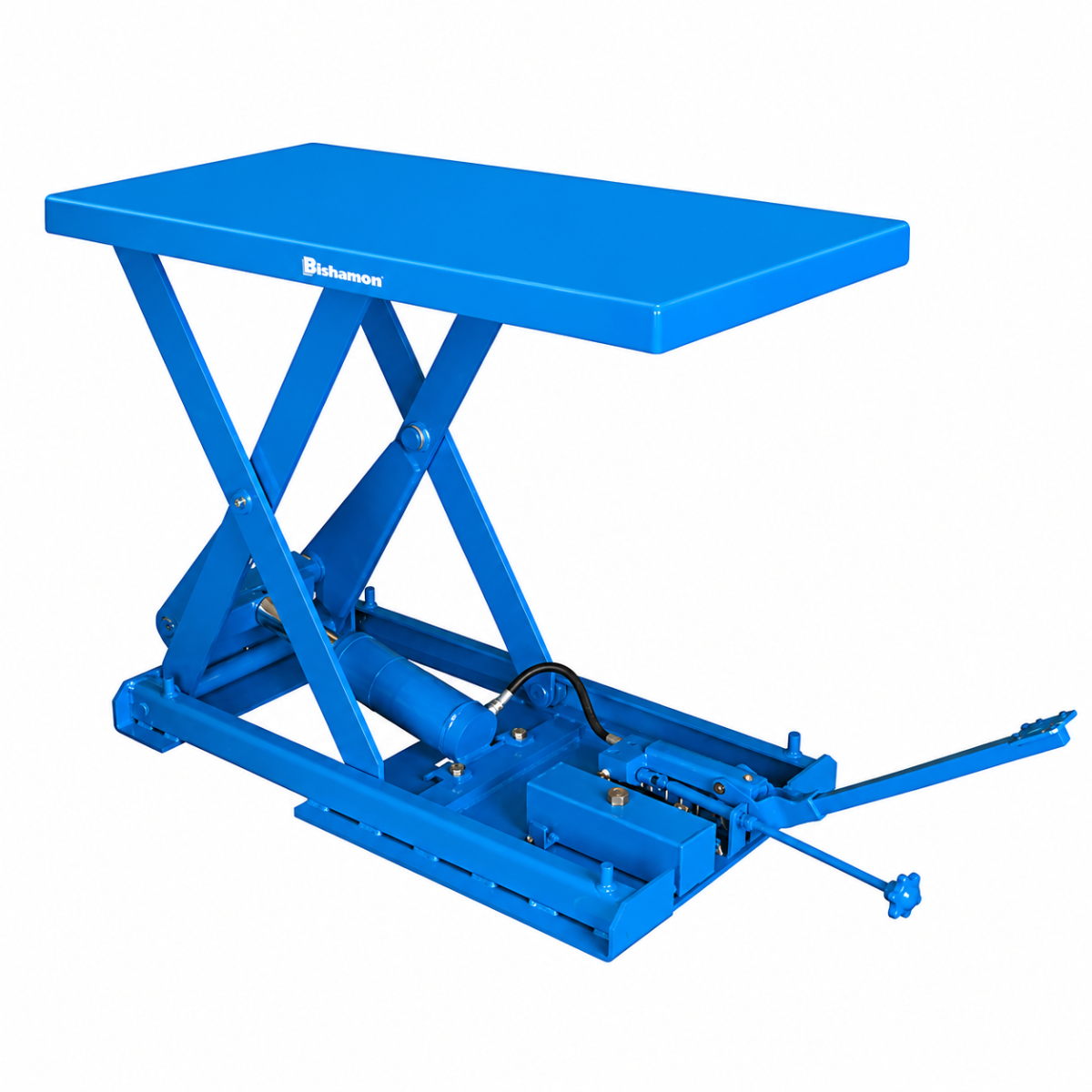

Bishamon X-50SE Double Scissor Lift Table – Electric/Hydraulic
High Lift Capacity. Compact Footprint. Powered Performance.
The Bishamon X-50SE is a 1,100 lb. capacity, double-scissor electric lift table built to provide exceptional vertical reach (up to 45 inches of travel) in a compact and efficient design. Powered by a 115V electric/hydraulic system, it offers fast, smooth lifting performance that is ideal for production lines, workstations, and material handling environments where repeatable positioning and high lift are essential.
With its dual scissor mechanism, the X-50SE provides the lifting height of a taller table while minimizing floor space requirements. Its solid steel construction, push-button controls, and on-board power unit ensure reliability and ease of operation across various industrial settings.
Key Features
- Electric/Hydraulic Lift System: Quick and powerful lifting with the push of a button
- Double Scissor Design: Delivers high lift (up to 54.25 in.) in a compact form factor
- 1,100 lb. Capacity: Handles heavy equipment, components, or work-in-progress materials
- Ergonomic Performance: Reduces lifting strain and improves operator positioning
- Built-In Power Unit: 115V electric motor with ½ HP external hydraulic unit and 24VAC control voltage
- Steel Frame Construction: Durable and powder-coated for industrial use
Applications
- Assembly and production workstations
- Quality inspection and packaging stations
- Shipping/receiving and material staging
- Clean and controlled environments needing precise height positioning
Technical Specifications – X-50SE
FeatureSpecification
Model X-50SE (Electric/Hydraulic)
Lift Type Double Scissor Lift
Operation Electric (115V), ½ HP, 24VAC controls
Capacity 1,100 lbs (500 kg)
Travel 45.0 inches
Platform Size 20.0 x 40.0 inches
Lowered Height 8.25 inches
Raised Height 54.25 inches
Raise Time (Unloaded) 11 seconds
Construction Heavy-duty welded steel
Finish Durable powder-coated blue
Weight 235 lbs
Power Requirement 115V electric with on-board controls
