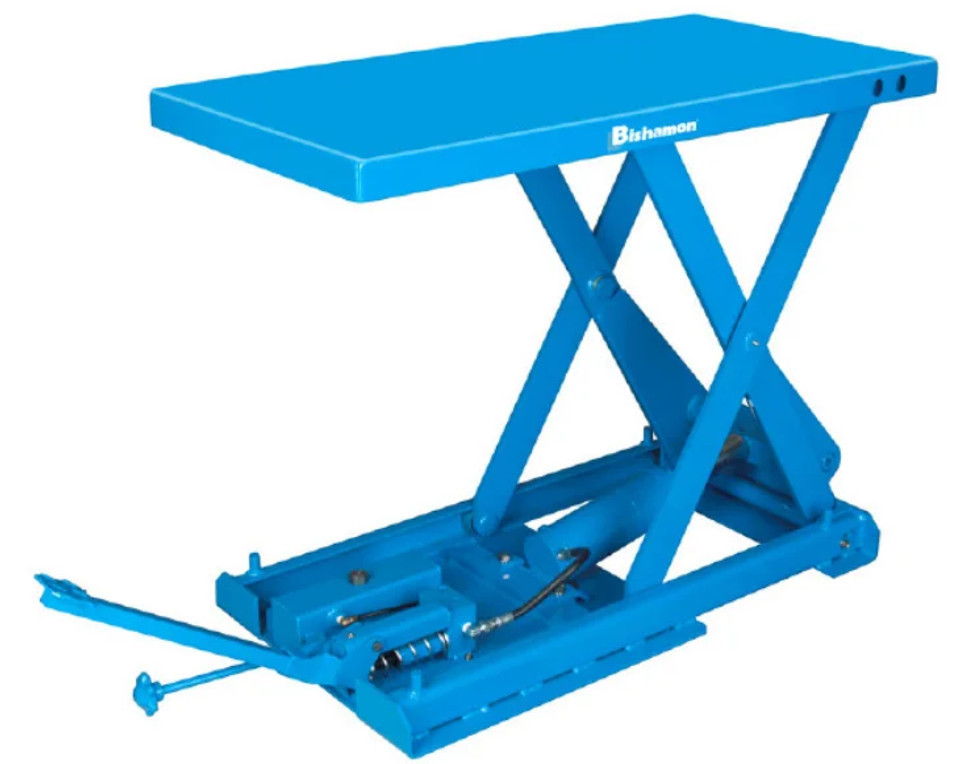

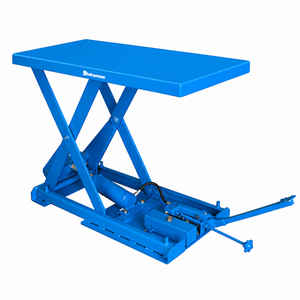

Bishamon X-75E Electric Hydraulic Scissor Lift Table

Heavy-Duty Electric Lift for Safe and Efficient Load Positioning

The Bishamon X-75E delivers powerful lifting performance through a smooth-operating electric hydraulic system. With a 1,650 lb. capacity and up to 30 inches of vertical lift, it is ideal for repetitive lifting tasks in industrial, manufacturing, and assembly environments where efficiency and ergonomics are critical.

Designed with a 24" x 48" solid steel platform, the X-75E allows for stable and secure handling of large or heavy loads. Its push-button control makes lifting and lowering fast, safe, and precise, reducing operator fatigue and increasing productivity.

Key Features

• Electric-Hydraulic Operation: Push-button control for quick, effortless lifting
• Heavy Load Capacity: Lifts up to 1,650 lbs with ease
• Ergonomic Height Positioning: 30 inches of travel enhances worker comfort and safety
• Durable Construction: Welded steel frame with tough powder-coated finish
• Compact Footprint: Fits easily into most workstations
• Integrated Safety Features: Includes overload protection and safety maintenance bars

Ideal For

• Assembly lines and production areas
• Material feeding and offloading
• Ergonomic workstations
• Applications requiring frequent lifting/lowering of heavy items

Technical Specifications – X-75E

FeatureSpecification

Model X-75E

Lift Mechanism Electric Hydraulic

Capacity 1,650 lbs (750 kg)

Travel (Lift Height) 30.0 inches

Table Size (W x L) 24.0 x 48.0 inches

Lowered Height 7.0 inches

Raised Height 37.0 inches

Lift Control Push-button pendant control

Power Requirement 115V, single-phase

Raise Time (Unloaded) 18 seconds

Construction Welded steel frame

Finish Blue powder coat

Ship Weight Approx. 392 lbs
