Product Overview

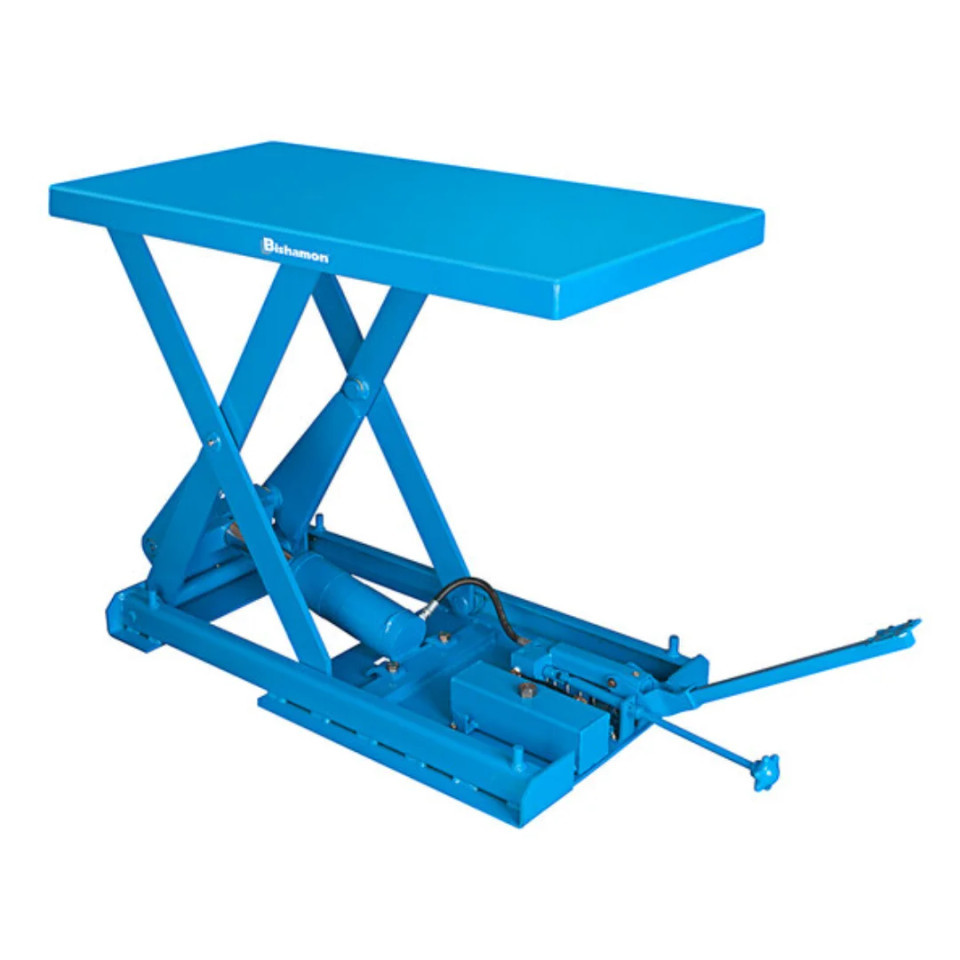

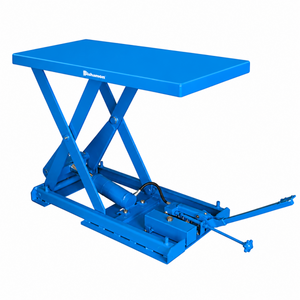

Bishamon X-25E Electric Scissor Lift Table
Powered Precision. Ergonomic Efficiency.
The Bishamon X-25E is an electric-hydraulic scissor lift table that delivers reliable, powered lifting for medium-duty material handling applications. With a 550 lb capacity and electric actuation, the X-25E reduces physical effort and increases productivity in environments where repetitive lifting is required.
Designed for comfort and convenience, this table features a push-button control that easily lifts loads to a maximum raised height of 28 inches, making it the best choice for assembly, packing, or repair operations. The compact platform size of 19.5" x 32" fits well in confined workspaces, while the 6-inch lowered height allows for easier load access.
Key Features:
- Electric-Hydraulic Lift: 115V power with external ½ HP unit and 24VAC control voltage
- Push-Button Operation: Enables fast, precise lifting with minimal physical strain
- Mid-Range Capacity: Ideal for handling loads up to 550 lbs
- Compact Footprint: Fits efficiently into work cells and tight production areas
- Industrial Durability: Constructed with high-strength steel and quality components
- Powder-Coated Finish: Resistant to chips, wear, and corrosion
Typical Applications
- Assembly workstations
- Repair benches
- Packing stations
- Material positioning for ergonomic workflows

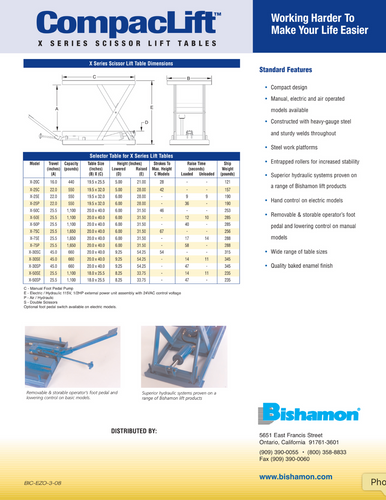

Technical Specifications – X-25E
FeatureSpecification
Model X-25E
Lift Mechanism Electric / Hydraulic (115V, ½ HP)
Capacity 550 lbs
Travel (Lift Height) 22.0 inches
Table Size (W x L) 19.5 x 32.0 inches
Lowered Height 6.0 inches
Raised Height 28.0 inches
Raise Time (Unloaded) 9 seconds
Construction Welded steel frame
Finish Powder-coated (Bishamon Blue)
Power Requirements 115V with 24VAC control voltage
Ship Weight 190 lbs
