Bishamon Lo-Profile Lift Table 550 lb Capacity Hand Control

Write a Review
$4,095.00
SKU: LX-25L-H
Availability: Subject to Availability
Weight: 298.00 LBS
Width: 25.00 (in)
Height: 21.00 (in)
Depth: 53.00 (in)
Shipping: Calculated at Checkout
Capacity: 0 - 999 lbs
Style: Scissor Lift Table
Table Size: 23.5 x 40.0 in
Table Height Min: 2.9 in
Table Height Max: 30.0 in
Power Type: 1/2 HP, 115V
Shipping Weight: 257 lbs
Adding to cart… The item has been added

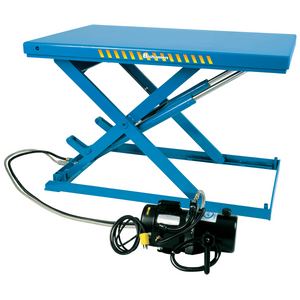

Bishamon Lo-Profile Lift Table 550 lb Capacity Hand Control

Bishamon Lo-Profile Lift Table 550 lb Capacity Hand Control

$4,095.00

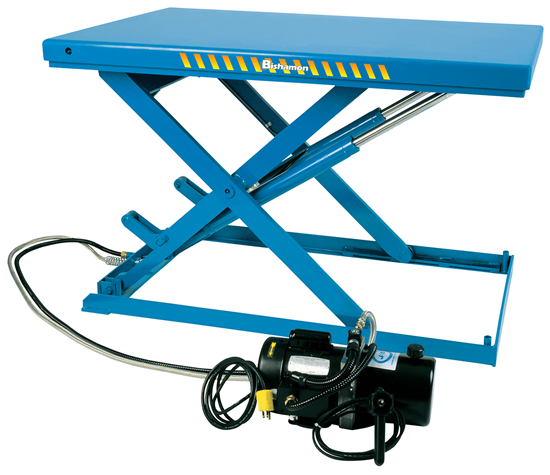

Bishamon LX-25L – Low-Profile Manual Scissor Lift Table

Low Clearance. High Efficiency. Reliable Performance.

The Bishamon LX-25L is a low-profile manual scissor lift table designed to make lifting and positioning lighter loads easy, safe, and ergonomic. With a load capacity of 550 lbs (250 kg) and an ultra-low platform height, the LX-25L is perfect for applications where loading directly from the floor is necessary—especially when using carts, bins, or trolleys.

This model features a foot-operated hydraulic pump for controlled, hands-free lifting and a compact design that makes it ideal for tight spaces. Its steel construction and durable polyurethane casters make it reliable for daily use in workshops, warehouses, production lines, and shipping departments.

Key Features

  • Low-Profile Design – Easier to load and unload from floor level
  • 550 lb Load Capacity – Ideal for moderate material handling tasks
  • Manual Hydraulic Lift – Foot pedal operation for hands-free lifting
  • Compact & Mobile – Maneuvers easily in small or crowded spaces
  • Stable Platform – Supports safe and balanced lifting
  • High-Quality Components – Built for long service life

Benefits

  • Improves Worker Ergonomics – Reduces bending, straining, and injury risk
  • Streamlines Material Handling – Enhances efficiency in repetitive tasks
  • Built for Longevity – Durable finish and rebuildable components
  • Ready to Use – No assembly required

Technical Specifications – Bishamon LX-25L

SpecificationDetails

Model LX-25L

Load Capacity 550 lbs (250 kg)

Lift Mechanism Manual hydraulic (foot pump)

Platform Size Approx. 27.5" L x 17.75" W

Lowered Height Approx. 3.25 inches (low-profile design)

Raised Height Approx. 27 inches

Lift Control Foot-operated pump with hand release

Wheel Type Polyurethane

Wheel Configuration 2 swivel with brake, 2 rigid

Frame Material Powder-coated steel

Color Blue

This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
