Product Overview

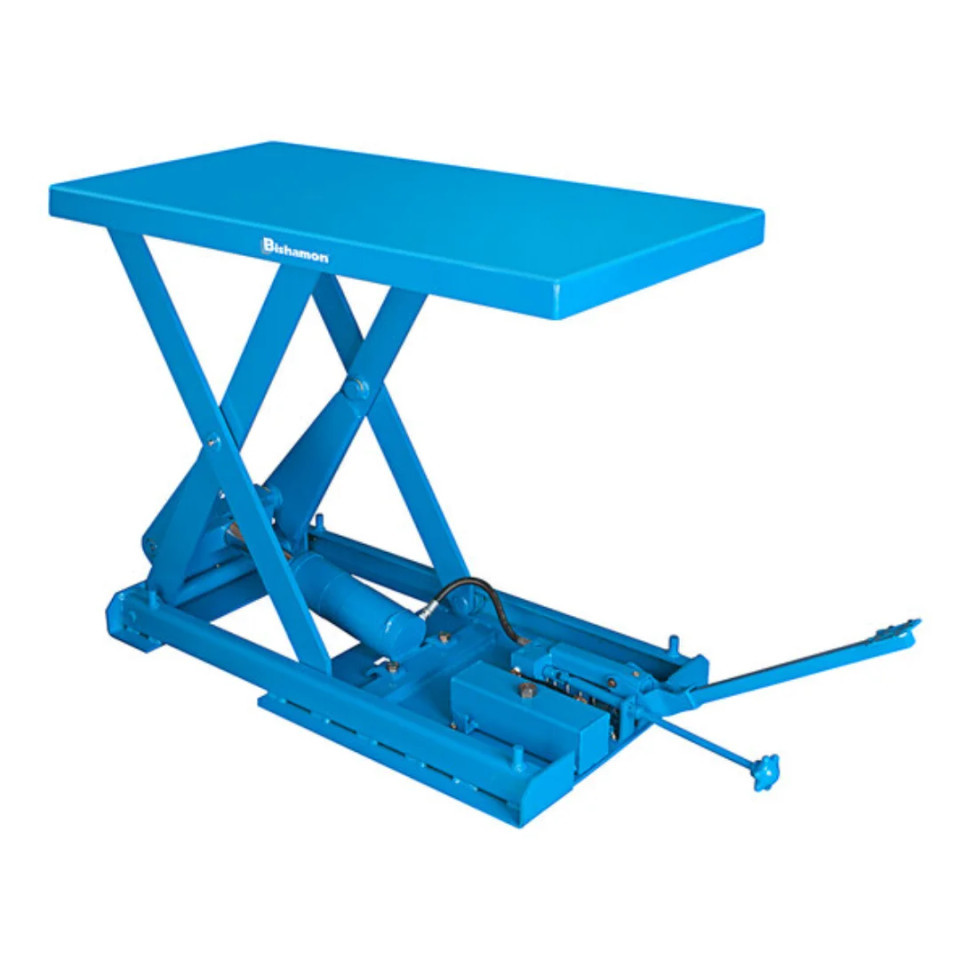

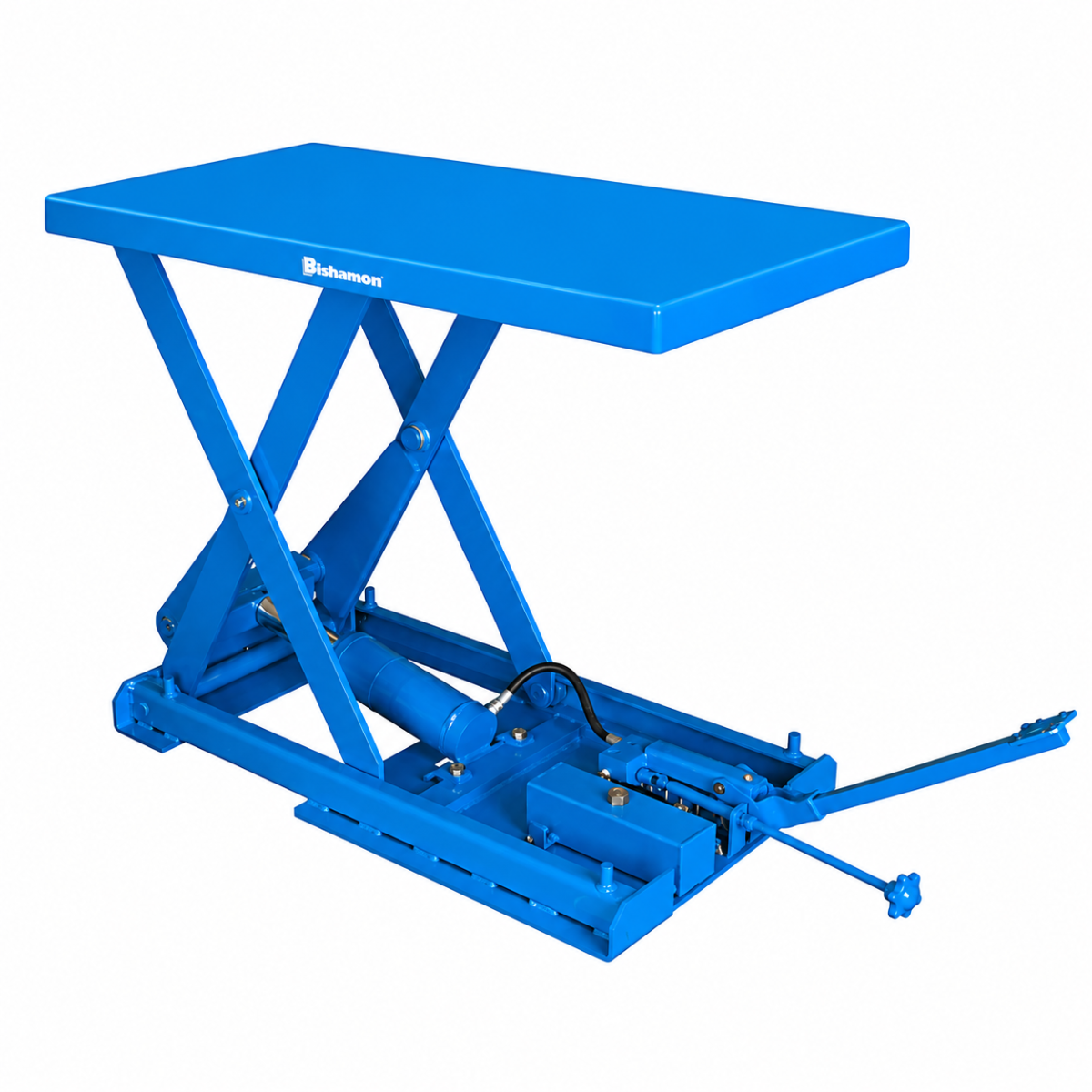

Bishamon X-25C Manual Scissor Lift Table
Heavy-Duty Performance. Smooth Manual Operation.
The Bishamon X-25C is a rugged manual scissor lift table built to deliver reliable lifting for a wide range of material handling applications. With a 550 lb capacity and a manual foot pedal pump, it offers precise, hands-free elevation of loads to reduce operator strain and increase workplace efficiency.
Designed for functionality, the X-25C allows materials to be positioned at an optimal height, improving productivity and safety in environments such as assembly lines, packing stations, and warehouses. Its 32-inch long by 19.5-inch wide platform supports mid-sized loads with ease, while the 5-inch lowered height provides convenient loading access.
Key Features
- Manual Foot Pump Operation: Reliable hydraulic lifting without external power
- Ergonomic & Efficient: Reduces lifting strain and boosts operator comfort
- Compact Design: Ideal for mobile workstations and tight areas
- Durable Steel Construction: Built to last in industrial environments
- Powder-Coated Finish: Provides resistance against wear and corrosion
Common Uses
- Part assembly and repair
- Light to mid-weight material staging
- Packing and sorting operations
- Mobile lifting table for shop floors
Technical Specifications – X-25C
FeatureSpecification
Model X-25C
Lift Mechanism Manual Foot Pedal Pump
Capacity 550 lbs
Travel (Lift Height) 16.0 inches
Table Size (W x L) 19.5 x 32.0 inches
Lowered Height 5.0 inches
Raised Height 21.0 inches
Strokes to Max Height 42
Construction Welded steel frame
Finish Powder-coated (Bishamon Blue)
Ship Weight 157 lbs
