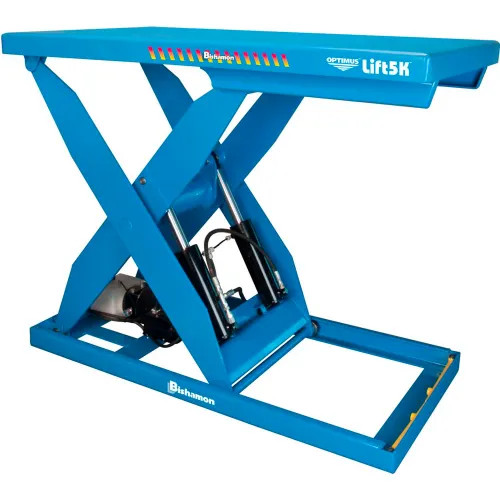

Bishamon L5K-Special Heavy-Duty Electric Hydraulic Lift Table

5,000 lb Capacity | Custom Platform Design | Built for Specialized Applications

The Bishamon L5K-Special lift table is a powerful, industrial-grade lifting solution designed to handle high-capacity applications with custom or non-standard requirements. As part of the L5K Series, this table supports loads up to 5,000 lbs, offering extreme lifting performance, superior structural integrity, and tailored design elements to meet your unique operational needs.

Whether your operation requires a non-standard platform size, additional safety components, or modified lifting stroke, the L5K-Special delivers the strength and adaptability needed for specialized material handling tasks.

Key Features

• Heavy-Duty Capacity – Supports up to 5,000 lbs for demanding industrial use
• Customized Design – Tailored platform, height, or features for application-specific tasks
• Smooth Electric Hydraulic Operation – Ensures consistent and controlled lifting performance
• Rugged Steel Construction – Built to perform in continuous-use environments
• ANSI MH29.1 Compliant – Meets recognized safety standards for lift tables
• Powder-Coated Finish – Provides long-term protection and professional appearance
• Made in the USA – Precision-built with high-quality components

Typical Specifications

(Actual specs may vary depending on customization)

SpecificationDetails

Model L5K-Special

Capacity 5,000 lbs

Platform Size Custom (Standard base: 32" x 56")

Vertical Travel 36 in (customizable)

Lowered Height 8.5 in (typical)

Raised Height 44.5 in (typical)

Lift Mechanism Electric hydraulic scissor lift

Power Requirement 115V, 1-Phase or as specified

Control Handheld push-button pendant

Construction Heavy-duty steel frame

Finish Industrial-grade powder coating

Compliance ANSI MH29.1

Country of Origin USA

Common Customization Options

• Platform size and shape (e.g., oversized, cutouts, rollers)
• Vertical travel height
• Foot switch or alternative control options
• Turntables, tilt tops, or side rails
• High-cycle or high-speed versions

Applications

• Manufacturing lines
• Assembly stations
• Custom fixture integration
• Heavy component handling
• Specialized ergonomic workstations
