Product Overview

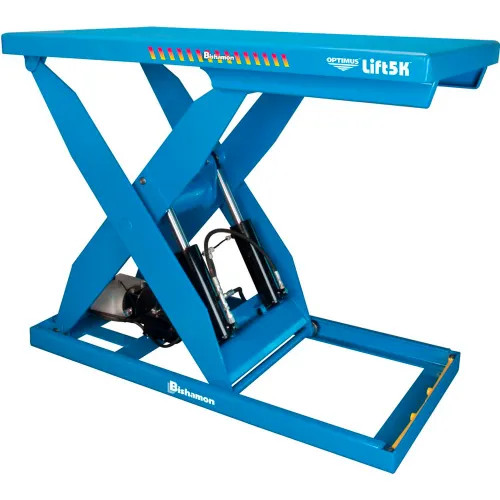

Bishamon L5K-3256 Heavy-Duty Electric Hydraulic Lift Table
5,000 lb Capacity | 32" x 56" Platform | 34" Vertical Travel
The Bishamon L5K-3256 is a robust, high-capacity lift table designed for heavy-duty applications in industrial and manufacturing environments. Part of Bishamon's Lift5K™ Series, this model combines rugged durability with smooth, powerful hydraulic operation to efficiently raise and lower loads up to 5,000 lbs.
Engineered for maximum reliability and safety, the L5K-3256 features a 32" x 56" solid steel platform, offering generous surface area for handling large pallets, containers, and materials. With 34 inches of vertical travel, it supports ergonomic positioning to reduce operator fatigue and workplace injuries. This model is ideal for demanding workstations, assembly lines, and shipping/receiving zones.
Key Features
- 5,000 lb Capacity – Designed for heavy-duty material handling
- Spacious Platform – 32" x 56" solid steel deck supports large loads
- Vertical Travel – 34" lifting range improves ergonomics and productivity
- Electric Hydraulic Operation – Powered by a reliable 115 VAC motor
- Smooth & Quiet Lifting – Scissor lift mechanism ensures stability
- Fast Cycle Times – Approx. 25 seconds up / 12 seconds down
- Low Profile – 8.63" lowered height for easier loading
- Built to ANSI MH29.1-2012 Standards – Safety-focused construction
- Made in the USA – Quality workmanship and parts
Technical Specifications
SpecificationDetail
Model L5K-3256
Series Lift5K™ Series
Capacity 5,000 lbs
Platform Size 32" x 56"
Travel 34 inches
Height (Lowered/Raised) 8.63" / 42.63"
Voltage 115 VAC
Lift Time (Up/Down) 25 sec / 12 sec
Construction Welded heavy-duty steel frame
Compliance ANSI MH29.1-2012
Origin Made in the USA
Ideal Applications
- Heavy component assembly
- Palletizing/de-palletizing
- Machining operations
- Shipping & receiving stations
- Ergonomic material positioning
