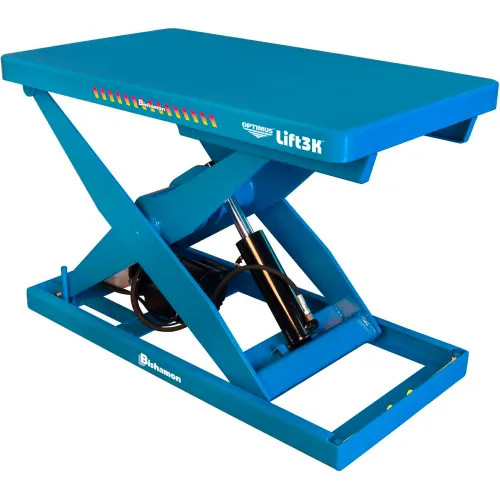

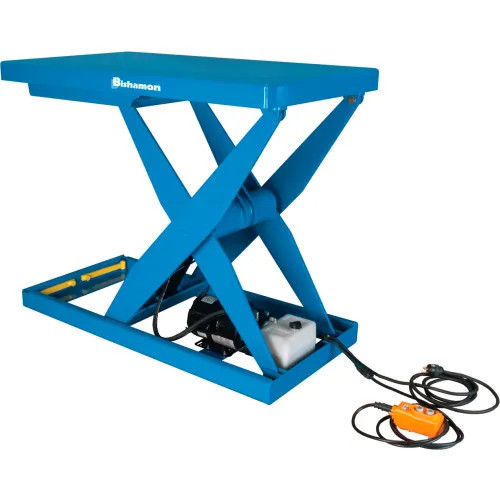

Bishamon L3K-3648 Electric-Hydraulic Scissor Lift Table

3,000 lb Capacity | 36" x 48" Platform | 34" Vertical Travel

The Bishamon L3K-3648 is a powerful and ergonomic lifting solution in the Optimus Lift3K™ Series, offering a generous 36" x 48" platform and a robust 3,000 lb capacity. Ideal for heavy-duty industrial tasks, it helps reduce worker strain and improve productivity by elevating loads to optimal working heights.

With 34 inches of vertical travel, the L3K-3648 accommodates a wide range of applications—from assembly and repair to material handling and palletizing. A 115 VAC electric-hydraulic motor ensures smooth, consistent performance, while safety features and durable construction deliver long-term reliability.

Key Features

• Heavy-Duty 3,000 lb Capacity – Designed for demanding industrial applications
• Spacious 36" x 48" Platform – Perfect for larger components and materials
• Lift Range – 8.50" when lowered to 42.63" when raised
• Electric-Hydraulic Power – Operates on standard 115 VAC with user-friendly push-button controls
• Fast Lifting Cycle – 25 seconds up / 12 seconds down
• ANSI MH29.1-2012 Compliant – Built for safety and operational integrity
• USA-Made Quality – Engineered and manufactured in the USA

Technical Specifications

SpecificationDetail

Model L3K-3648

Series Optimus Lift3K™

Capacity 3,000 lbs

Platform Size 36” x 48”

Travel 34 inches

Height (Lowered/Raised) 8.50" / 42.63"

Voltage 115 VAC

Approx. Lift Time (Up/Down) 25 sec / 12 sec

Approx. Shipping Weight 730 lbs

Perfect For

• Heavy assembly lines
• Pallet building and breakdown
• Workstation height adjustment
• Ergonomic material handling
