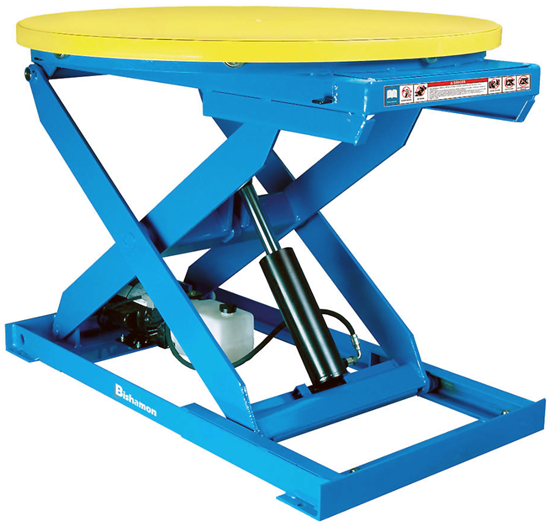

Bishamon L3K-TT Electric-Hydraulic Lift Table with Turntable Top

3,000 lb Capacity | 34" Vertical Travel | Integrated Rotating Platform

The Bishamon L3K-TT is a premium electric-hydraulic lift table from the Optimus Lift3K™ Series, featuring an integrated turntable top for improved ergonomics and productivity. This table has a lifting capacity of 3,000 lbs and 34 inches of vertical travel, this model allows operators to effortlessly raise, lower, and rotate loads—reducing strain, improving workflow, and enhancing safety.

The built-in turntable lets users rotate loads 360° for better access without walking around or repositioning materials. Combined with a rugged scissor-lift design and smooth hydraulic operation powered by a standard 115 VAC electric motor, the L3K-TT is ideal for material handling, assembly, and packaging environments.

Key Features

• 3,000 lb Capacity – Handles heavy-duty lifting with ease
• Integrated Turntable Top – Smooth 360° load rotation for better positioning
• Lift Range – From 8.63" lowered to 42.63" fully raised
• Electric-Hydraulic Operation – Reliable 115 VAC motor with push-button control
• Scissor-Lift Mechanism – Stable and efficient lifting platform
• Fast Cycle Time – Approx. 25-sec lift / 12 sec lower
• ANSI MH29.1-2012 Compliant – Designed for safety and durability
• Made in the USA – Precision-built for lasting performance

Technical Specifications

SpecificationDetail

Model L3K-TT

Series Optimus Lift3K™

Capacity 3,000 lbs

Platform Style Integrated rotating turntable

Travel 34 inches

Height (Lowered/Raised) 8.63" / 42.63"

Voltage 115 VAC

Lift Time (Up/Down) 25 sec / 12 sec

Construction Heavy-duty welded steel frame

Compliance ANSI MH29.1-2012

Country of Origin USA

Applications

• Pallet build-up/breakdown
• Assembly and inspection lines
• Shipping and Receiving
• Packaging workstations
• Ergonomic lift-and-rotate operations
