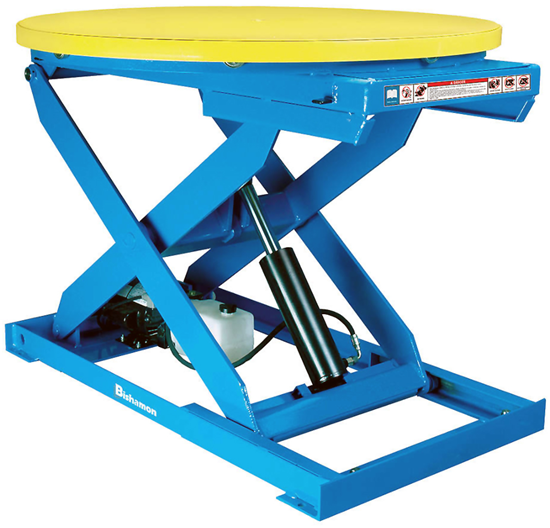

Bishamon L2K-TT Lift Table

Electric-Hydraulic Scissor Lift Table with 43" Rotating Round Top – 2,000 lb Capacity

The Bishamon L2K-TT is a versatile scissor lift table from the Optimus Lift2K™ Series, specially equipped with a 43-inch diameter rotating round top to provide ergonomic load positioning and reduce repetitive motion injuries. With a 2,000 lb weight capacity and 30 inches of vertical travel, this table is ideal for improving productivity and safety in a wide range of industrial applications.

The rotating platform allows operators to spin loads into position rather than reaching, twisting, or walking around the table—making it an excellent solution for assembly, packaging, and inspection tasks. The electric-hydraulic lift system runs on standard 115 VAC power and delivers smooth, reliable lifting action.

Key Features

• 2,000 lb Load Capacity – Handles heavy-duty lifting needs with ease
• 43" Diameter Round Rotating Top – Enhances accessibility and ergonomics
• Lift Height Range – 11.5" lowered to 41.5" raised
• 30" Travel Height – Ideal for raising pallets or work materials
• Electric Hydraulic Operation – Simple plug-in with 115 VAC power
• Approx. Lift Time – 24 seconds up / 12 seconds down
• Made in the USA – Engineered for industrial performance
• ANSI MH29.1 Compliant – Meets industry safety standards

Technical Specifications

SpecificationDetail

Model L2K-TT

Capacity 2,000 lbs

Platform Type 43" Diameter Round Rotating Top

Travel 30 inches

Height Range 11.5" (lowered) to 41.5" (raised)

Voltage 115 VAC

Approx. Lift Time (Up/Down) 24 sec / 12 sec

Approx. Shipping Weight 540 lbs

Series Optimus Lift2K™

Applications

• Rotational assembly stations
• Inspection or packing cells
• Pallet build-up or breakdown
• Ideal where work positioning and access are critical
