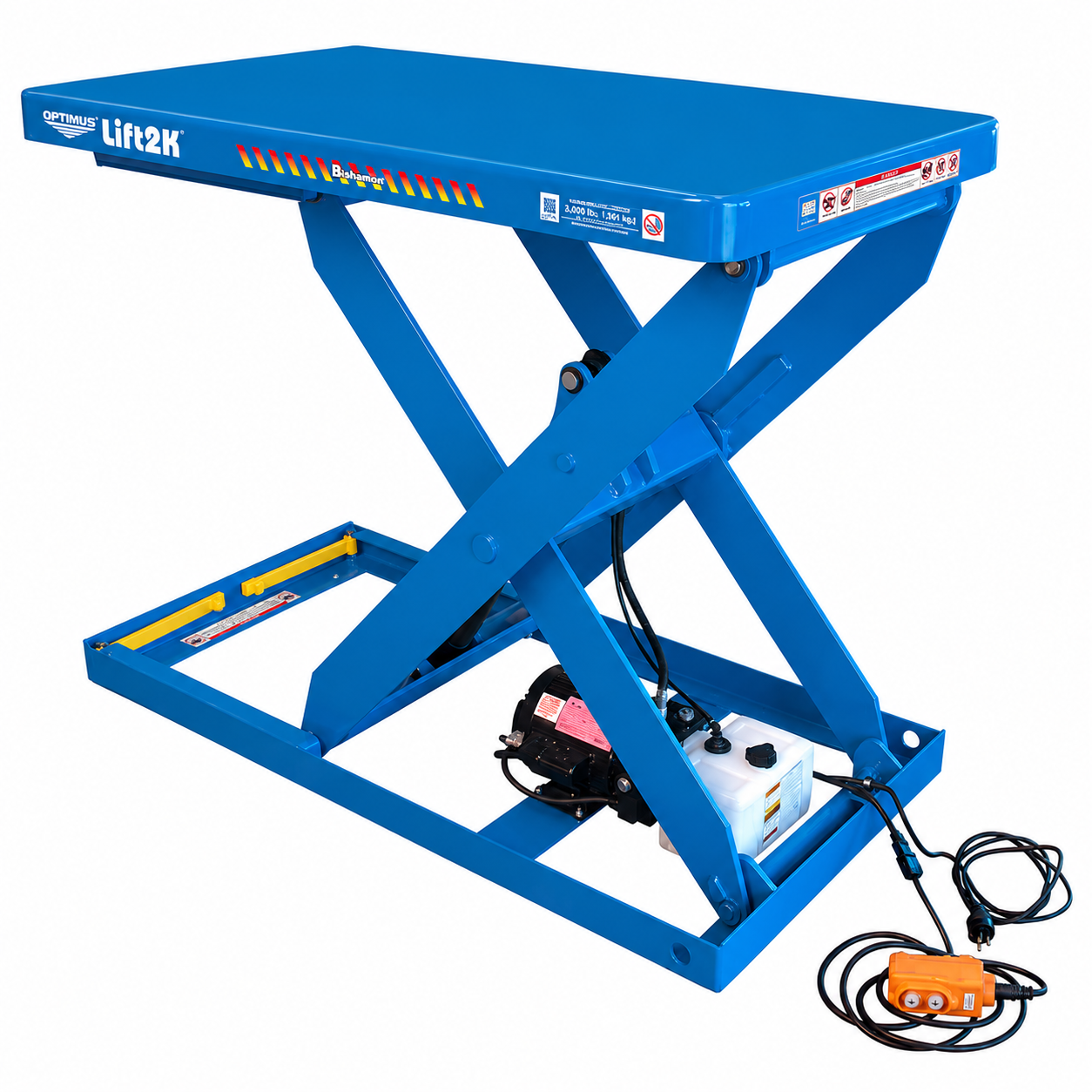

Bishamon L2K-TT4448 Series Optimus LK Lift Table, 2,000 lb, 44 x 48 in Rotating

Write a Review
$6,959.41
SKU: L2K-TT4448
Weight: 640.00 LBS
Width: 44.00 (in)
Height: 41.50 (in)
Depth: 48.00 (in)
Shipping: Calculated at Checkout
Capacity: 1,000 - 2,499 lbs
Style: Turntable
Voltage: 115 VAC
Adding to cart… The item has been added
Bishamon L2K-TT4448 Series Optimus LK Lift Table, 2,000 lb, 44 x 48 in Rotating

Bishamon L2K-TT4448 Series Optimus LK Lift Table, 2,000 lb, 44 x 48 in Rotating

$6,959.41

Bishamon L2K-TT4448 Turntable Lift Table

2,000 lb Capacity | 44" x 48" Rotating Platform | Ergonomic Work Positioner

The Bishamon L2K-TT4448 combines the reliable lifting performance of the Bishamon Lift2K™ Series with a heavy-duty 44" x 48" rotating turntable top, offering a complete ergonomic lifting and positioning solution. Designed for work environments that require frequent pallet rotation or access from multiple angles, this model minimizes worker strain and boosts productivity.

With a 2,000 lb lifting capacity and smooth hydraulic scissor action, the L2K-TT4448 lifts loads efficiently to an optimal working height and allows 360-degree rotation, reducing the need for bending, twisting, or overreaching. Ideal for packing stations, manufacturing lines, or shipping and receiving docks.

Key Features

  • Integrated Turntable Platform – 44" x 48" rectangle rotating top for full pallet access
  • 2,000 lb Load Capacity – Ideal for most industrial and warehouse applications
  • Ergonomic Work Positioning – Minimizes strain by bringing loads to a comfortable height and rotating them with ease
  • Powered Electric Hydraulic Operation – Efficient lifting at the push of a button
  • Durable Steel Construction – Built to withstand harsh industrial environments
  • Compact Lowered Height – Just 8.38 inches, allowing for easy loading
  • Smooth & Quiet Performance – Precision lifting with minimal noise
  • ANSI MH29.1-2012 Compliant – Meets national safety standards

Technical Specifications

SpecificationDetails

Model L2K-TT4448

Series Lift2K™ with Turntable

Load Capacity 2,000 lbs

Platform Dimensions 44" x 48" Turntable Top

Vertical Travel 34 inches

Height (Lowered/Raised) 8.38" / 42.38"

Power Source 115 VAC

Lift Time (Up/Down) ~27 sec up / ~15 sec down

Rotation 360° Manual Turntable

Construction Heavy-duty welded steel

Compliance ANSI MH29.1-2012

Origin Made in USA



Best For

  • Pallet building and wrapping
  • Assembly stations requiring full access
  • Production lines
  • Shipping/receiving workstations
  • Any application needing rotation and elevation
This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
