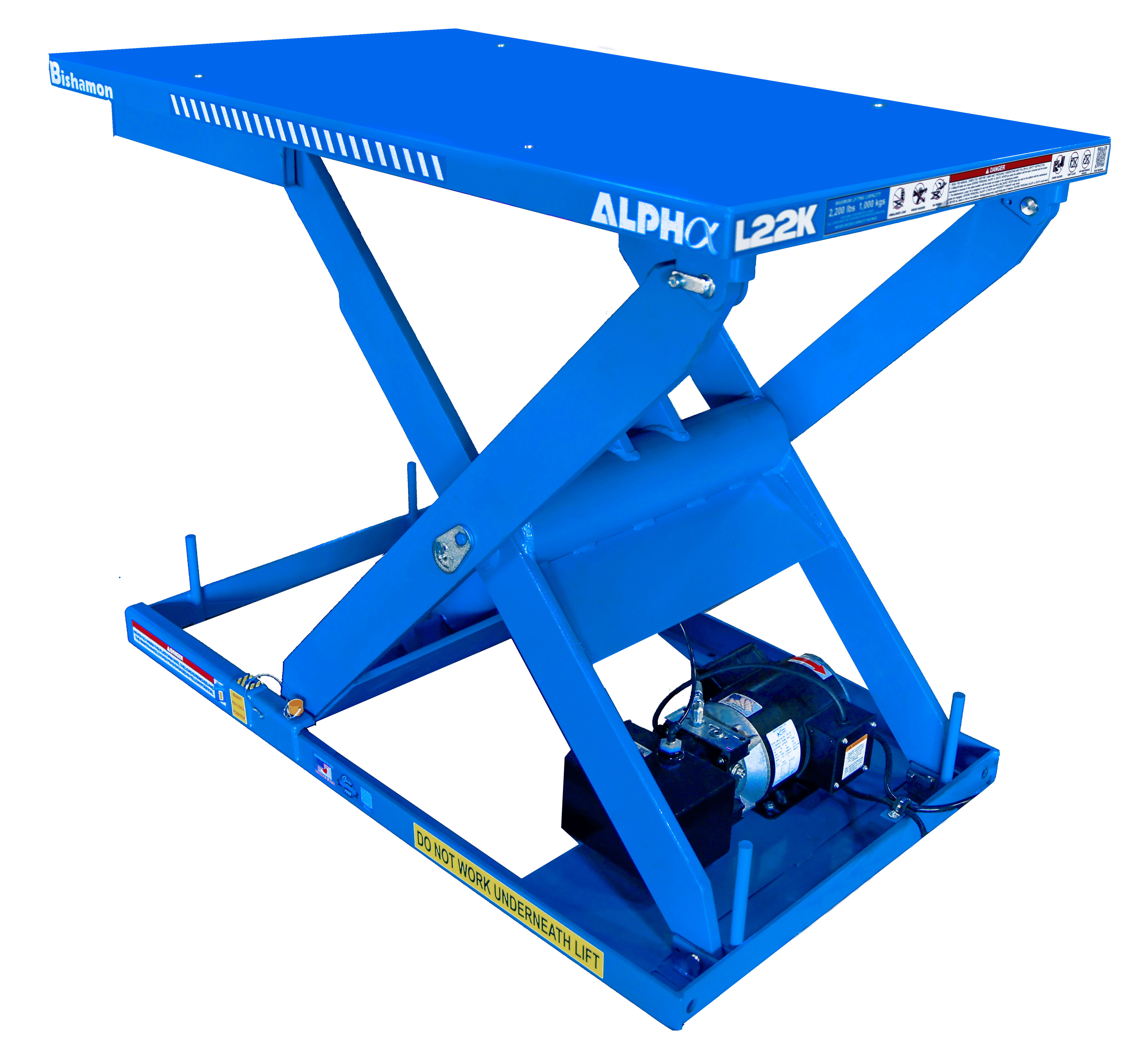

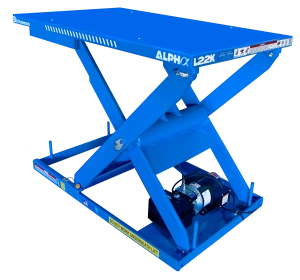

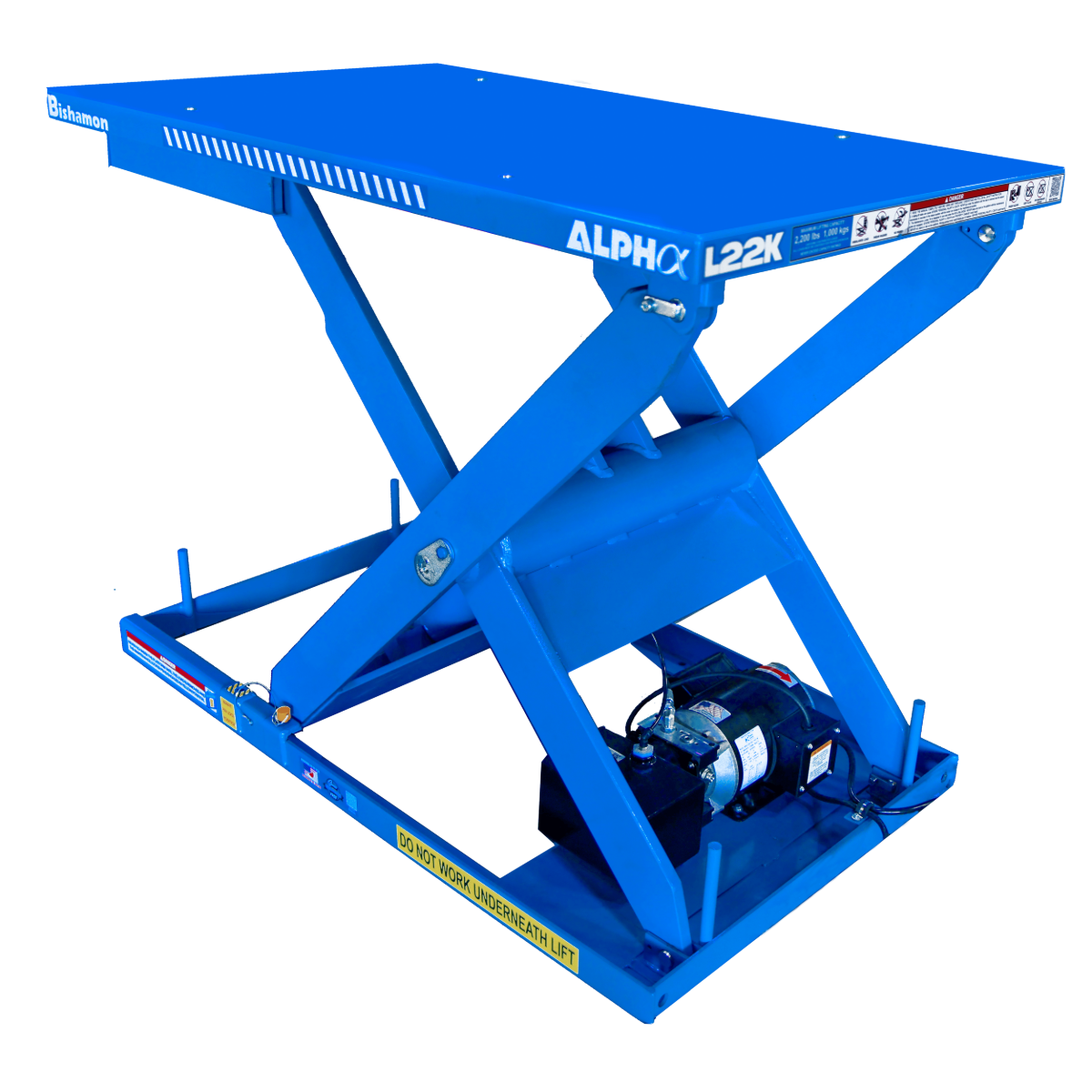

ALPHA Electric-Hydraulic Lift Tables - L22K-TT4448

The L22K-TT4448 Alpha Electric-Hydraulic Lift Table with Turntable is a versatile and ergonomically engineered solution designed to optimize material handling operations while improving workplace safety. As part of the advanced Alpha Series, this lift table combines powerful vertical lifting with a rotating turntable platform, allowing operators to efficiently position and access loads from all angles with minimal effort.

Ideal for industrial environments such as warehouses, manufacturing plants, assembly lines, and packaging stations, this lift table helps eliminate unnecessary lifting, bending, and twisting. With a 2,200 lb lifting capacity, the L22K-TT4448 is perfectly suited for medium-duty applications that require both strength and flexibility. The integrated turntable enables smooth 360-degree rotation, allowing operators to remain in one position while accessing all sides of a load —significantly improving workflow efficiency and reducing fatigue.

The electric-hydraulic scissor lift system delivers smooth, controlled lifting and lowering, ensuring stable and precise load positioning. This enhances safety and minimizes the risk of load shifting or product damage. Built with a heavy-duty steel frame and reinforced scissor arms, the L22K-TT4448 is designed to withstand continuous use in demanding industrial settings while maintaining consistent performance.

Flexibility is further enhanced by the modular platform design, which supports various turntable configurations for factory or field installation. This adaptability makes the lift table ideal for applications such as assembly, inspection, product handling, and packaging processes.

Maintenance is simplified with self-lubricating, maintenance-free bushings at all pivot points, reducing wear and eliminating the need for routine lubrication. A built-in maintenance safety pin ensures safe servicing and inspections, helping minimize downtime and extend equipment life.

If your operation requires a reliable combination of lifting performance and rotational functionality, the L22K-TT4448 Alpha Lift Table delivers a durable, efficient, and ergonomic solution.

Specifications

• Model / SKU: L22K-TT4448
• Series: Alpha Electric-Hydraulic Lift Tables
• Lifting Capacity: 2,200 lbs
• Lift Mechanism: Electric-hydraulic scissor lift system
• Platform Type: Integrated rotating turntable platform
• Turntable Function: Smooth 360 ° rotation for full load accessibility
• Operation: Powered lifting with manual or assisted rotation
• Construction: Heavy-duty steel frame with reinforced scissor structure
• Bushings: Self-lubricating, maintenance-free pivot bushings
• Safety Features: Integrated maintenance safety pin for secure servicing
• Performance: Stable, low-vibration lifting with precise positioning
• Applications: Warehousing, manufacturing, assembly lines, packaging and inspection stations
• Ergonomic Benefits: Reduces operator fatigue and eliminates manual load repositioning
• Maintenance: Low-maintenance design with accessible service points

The Alpha L22K-TT4448 Lift Table with Turntable is an excellent investment for businesses seeking improved productivity, enhanced ergonomics, and reliable material handling performance in demanding industrial applications.
