Bishamon L5K-TT4444 Series Optimus LK Lift Table, 5,000 lb, 44 x 44 in Rotating

Write a Review
$10,899.78
SKU: L5K-TT4444
Weight: 1,000.00 LBS
Width: 44.00 (in)
Height: 51.12 (in)
Depth: 44.00 (in)
Shipping: Calculated at Checkout
Capacity: 5,000 - 9,999 lbs
Style: Turntable
Voltage: 115 VAC
Adding to cart… The item has been added
Bishamon L5K-TT4444 Series Optimus LK Lift Table, 5,000 lb, 44 x 44 in Rotating

Bishamon L5K-TT4444 Series Optimus LK Lift Table, 5,000 lb, 44 x 44 in Rotating

$10,899.78

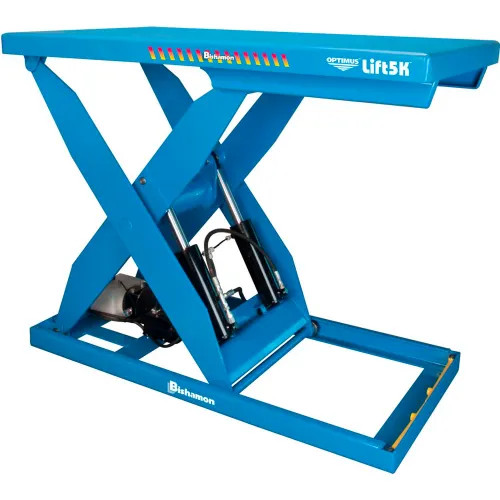

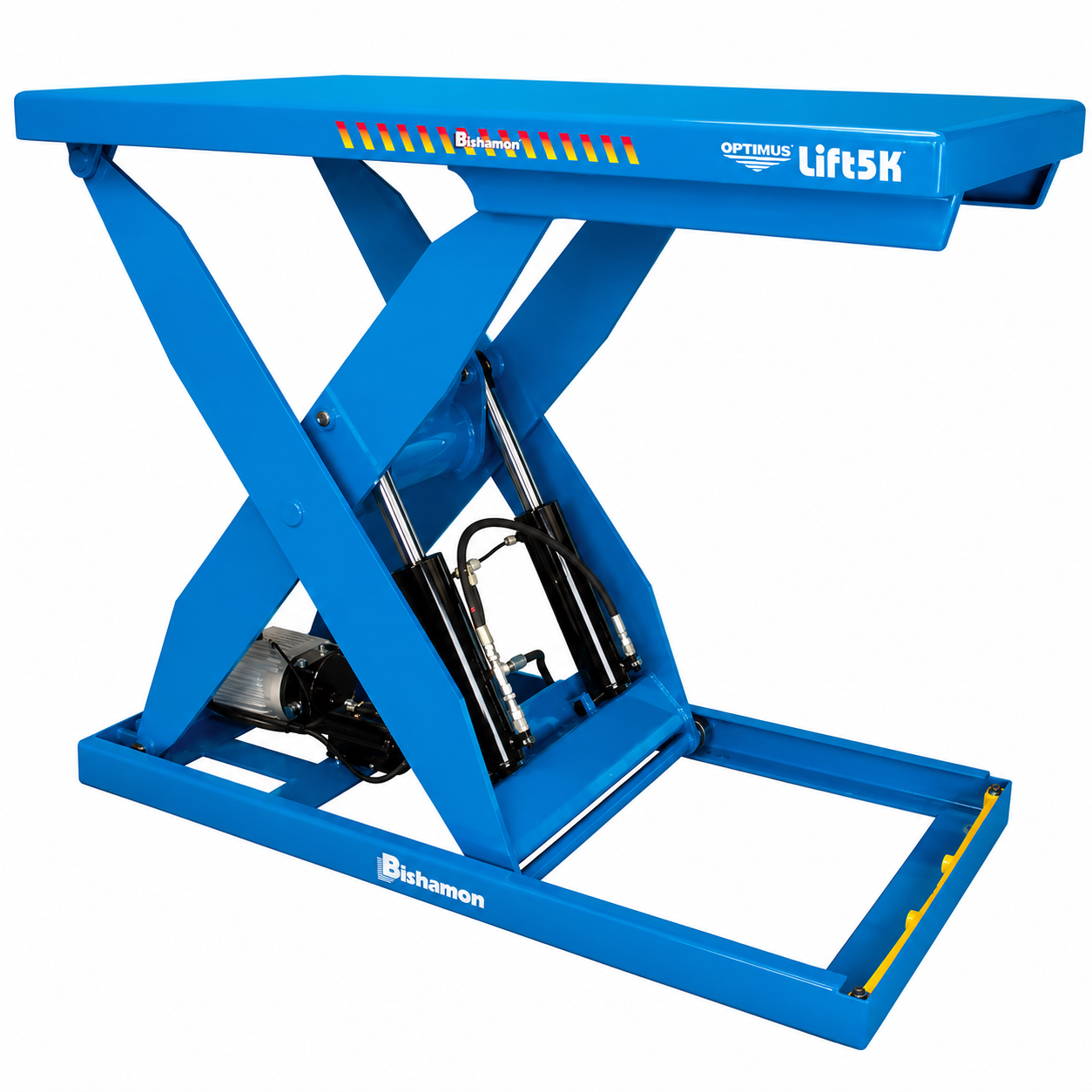

Bishamon L5K-TT4444 Electric Hydraulic Lift Table with Turntable

5,000 lb Capacity | 44" x 44" Rotating Platform | Heavy-Duty Ergonomics

The Bishamon L5K-TT4444 lift table combines the lifting power of the L5K Series with a 44" x 44" integrated rotating turntable, offering optimal material handling efficiency and ergonomic safety. With a capacity of 5,000 lbs, this electric-hydraulic lift table is ideal for demanding industrial applications that require frequent rotation and precise load positioning.

Designed for extreme durability and smooth performance, the L5K-TT4444 minimizes worker fatigue and injury by bringing loads to an ideal working height and allowing 360-degree access without the need to walk around the table or reposition the load manually.

Key Features

  • 5,000 lb Capacity – Supports heavy materials and industrial components
  • Integrated 44" x 44" Turntable – Smooth 360° rotation for full load access
  • Electric Hydraulic Lift System – Quiet, powerful lifting with minimal effort
  • Heavy-Duty Steel Frame – Reinforced for long-term reliability
  • Ergonomic Design – Reduces bending, reaching, and twisting motions
  • Industrial-Grade Finish – Durable powder coating resists wear and corrosion
  • Safety Toe Guards & Mechanical Stops – Enhanced operator safety
  • Made in the USA – High-quality domestic manufacturing

Technical Specifications

SpecificationDetails

Model L5K-TT4444

Capacity 5,000 lbs

Platform Size 44" x 44"

Vertical Travel 36 inches

Lowered Height 8.5 inches

Raised Height 44.5 inches

Turntable Built-in, 360° rotation

Lift Mechanism Electric hydraulic scissor lift

Power Requirement 115V, 1-Phase (other voltages optional)

Control Type Push-button pendant

Finish Baked powder coat

Compliance ANSI MH29.1

Origin Made in the USA



Ideal Applications

  • Manufacturing and assembly lines
  • Pallet loading/unloading operations
  • Heavy component positioning
  • Ergonomic workstations
  • Packaging and material staging
This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
