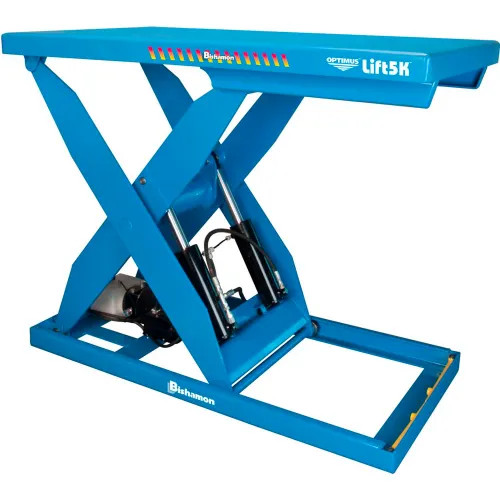

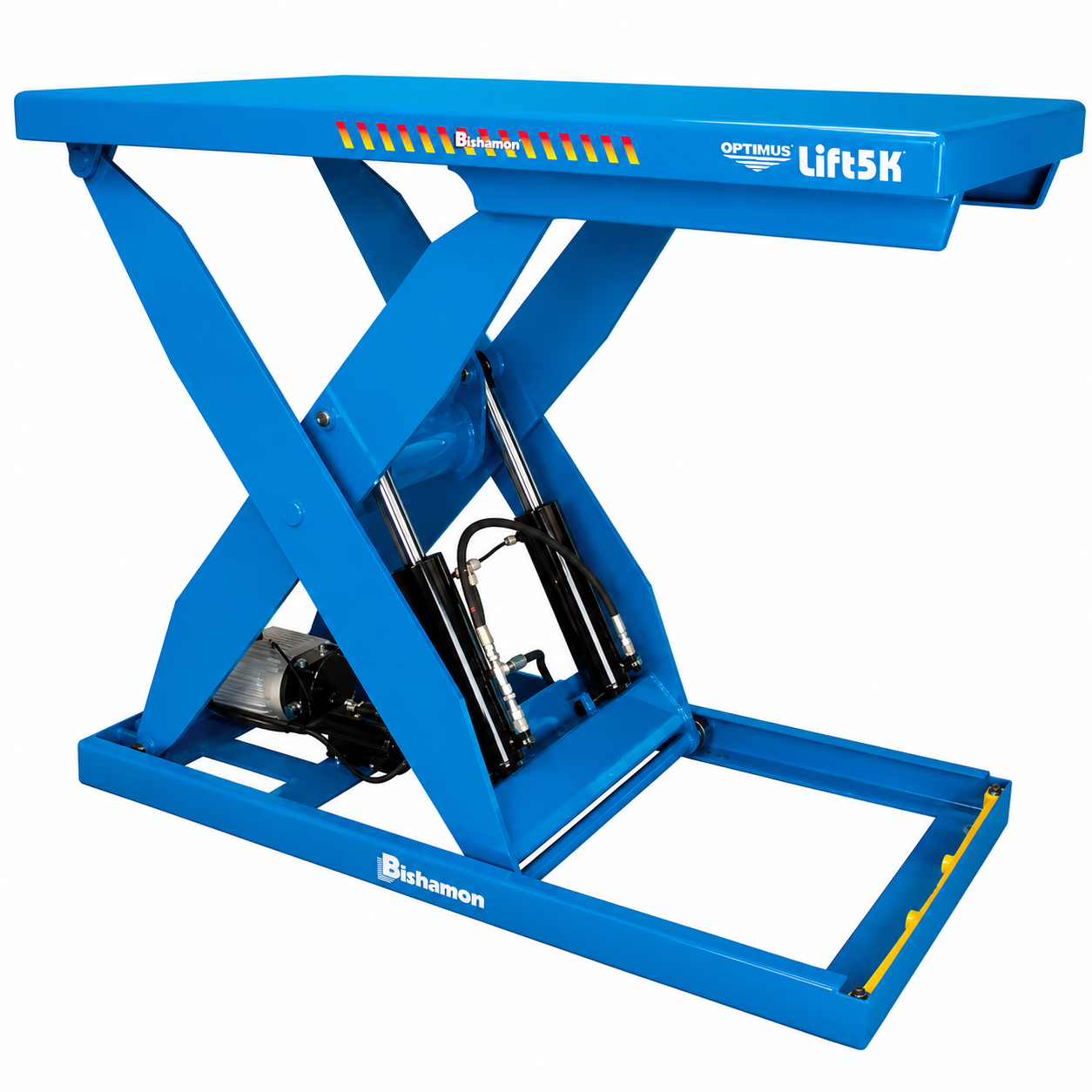

Bishamon L5K-4848 Series Optimus LK Lift Table

Write a Review
$10,912.20
SKU: L5K-4848
Weight: 1,030.00 LBS
Width: 48.00 (in)
Height: 51.12 (in)
Depth: 48.00 (in)
Shipping: Calculated at Checkout
Capacity: 5,000 - 9,999 lbs
Style: Scissor Lift Table
Voltage: 115 VAC
Adding to cart… The item has been added
Bishamon L5K-4848 Series Optimus LK Lift Table

Bishamon L5K-4848 Series Optimus LK Lift Table

$10,912.20

Bishamon L5K-TT4848 Electric Hydraulic Lift Table with Turntable

5,000 lb Capacity | 48" x 48" Rotating Platform | Heavy-Duty Ergonomic Lifting Solution

The Bishamon L5K-TT4848 is a high-performance electric hydraulic lift table designed for industrial applications that demand power, precision, and safety. With a 5,000 lb capacity and a spacious 48" x 48" turntable platform, it offers smooth, ergonomic positioning of heavy loads—improving worker efficiency while reducing strain and repetitive motion injuries.

Equipped with an integrated 360-degree rotating turntable, this model allows workers to access all sides of a load without walking around or repositioning items manually. It's an ideal solution for palletizing, welding, assembly, inspection, and more.

Key Features

  • Heavy-Duty Capacity: Handles loads up to 5,000 lbs
  • 48" x 48" Turntable Platform: Smooth, full rotation for easy load access
  • Electric Hydraulic Lift: Efficient vertical movement with fingertip controls
  • Durable Steel Construction: Designed for long-term, high-cycle use
  • Enhanced Ergonomics: Reduces bending, reaching, and manual lifting
  • Powder-Coated Finish: Resistant to wear, corrosion, and industrial environments
  • Built-In Safety Features: Includes toe guards, maintenance lock, and overload protection
  • Made in the USA: Engineered with quality materials and precision manufacturing

Technical Specifications

SpecificationDetails

Model L5K-TT4848

Load Capacity 5,000 lbs

Platform Size 48" W x 48" L

Lift Travel 36 inches

Lowered Height 8.5 inches

Raised Height 44.5 inches

Turntable 360° rotating, integrated

Lift Mechanism Electric hydraulic

Power Requirements 115V, 1-Phase standard (others optional)

Control Type Push-button pendant control

Finish Blue powder coat

Safety Compliance ANSI MH29.1

Country of Origin USA



Ideal For

  • Palletizing and de-palletizing
  • Assembly and manufacturing stations
  • Heavy material handling
  • Shipping and packaging operations
  • Warehousing and distribution centers
This Warranty Statement applies only to Bishamon Industries Corporation ("Bishamon") products purchased from Bishamon or an authorized dealer and used within the U.S.A. and Canada, and constitutes an agreement allocating the risk of product failure between Bishamon and the purchaser, as reflected in the product's price. Bishamon warrants its products to be free from defects in material and workmanship for one (1) year from the date of delivery, covering both parts and labor, applying only to the original, non-transferable purchaser and only to original Bishamon-manufactured equipment; this warranty excludes defects caused by unsuitable installation environments, use for purposes other than intended, disasters such as fire, flood, wind, or lightning, unauthorized attachments or modifications, shipment damage, or any other abuse, misuse, accident, alteration, or unauthorized repair. Bishamon must receive written notice of any defect within the one-year period, after which it will, at its election, replace or repair the product at its facilities or through an authorized repair representative (unauthorized repair work is not covered), with replacement parts covered for the balance of the original warranty period and replaced parts becoming Bishamon's property; if shipment is required for warranty service, Bishamon will arrange pick-up and shipping and provide packing instructions, though it is not responsible for negligent or inappropriate packing by the user. For custom-built products made to user specifications, Bishamon additionally warrants conformance to those specifications, provided any nonconformity claims are made in writing within ten (10) days of delivery. To the extent allowed by law, these remedies are the user's sole and exclusive remedies, with no other express or implied warranties - including merchantability or fitness for a particular purpose - applying, though the user may have other rights varying by state or country; Bishamon will not be liable for special, incidental, or consequential damages of any kind (including lost profits, lost savings, loss of use, cost of capital, substitute equipment or services, downtime, third-party claims, or property damage) under any legal theory, and makes no warranty regarding compliance with federal, state, or local safety or product standard codes, with any such noncompliance not considered a warranty defect. This Warranty Statement represents the complete and exclusive agreement between the parties, superseding all prior communications including statements by salespersons, may only be modified in writing signed by a Bishamon officer, and is governed by California law, with any disputes to be brought exclusively in courts in San Bernardino County, California; any action for breach of warranty must be commenced within fifteen (15) months of the product's delivery.
