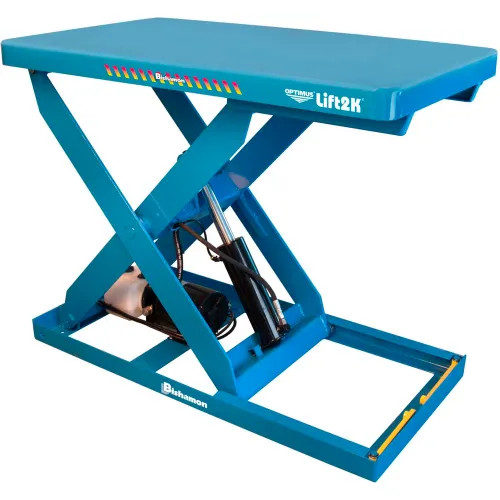

Bishamon L2K-2848 Lift Table

Durable, Ergonomic Scissor Lift Table – 2,000 lb. Capacity for Mid-Sized Loads

The Bishamon L2K-2848 is a robust and efficient hydraulic lift table from the Optimus Lift2K™ Series, engineered for reliable lifting and positioning of mid-sized loads up to 2,000 pounds. With a 28" x 48" platform, this table provides ample space for a variety of materials and components, making it ideal for industrial, manufacturing, and warehouse environments.

Powered by a 115 VAC electric motor, the L2K-2848 delivers smooth lifting and lowering action with a travel range of 30 inches. It's built with safety and operator ease in mind, featuring flow-limiting valves, high-strength scissor arms, and easy-access hydraulic components.

Key Features

• Lift Capacity: 2,000 lbs – Ideal for medium-duty industrial tasks
• Platform Size: 28" W x 48" L – Accommodates a variety of load sizes
• Lift Travel: 30" – Raises loads to a comfortable working height
• Lift Height (Raised/Lowered): 38.5" / 8.5"
• Lift Speed: 24 sec. up / 12 sec. down (approx.)
• Power Supply: 115 VAC – Plug-and-play operation
• Durable Finish: Powder-coated for corrosion resistance
• Maintenance Friendly: Entrapped rollers and clean-access design
• Made in the USA

Technical Specifications

SpecificationDetail

Model L2K-2848

Capacity 2,000 lbs

Travel 30 inches

Platform Dimensions 28" x 48"

Lowered Height 8.5 inches

Raised Height 38.5 inches

Voltage 115 VAC

Approx. Lift Time (Up/Down) 24 sec / 12 sec

Approx. Shipping Weight 490 lbs

Series Optimus Lift2K™

Operation Type Electric / Hydraulic

Applications

• Assembly lines
• Packaging and shipping stations
• Ergonomic workstations
• Parts handling and fabrication cells
