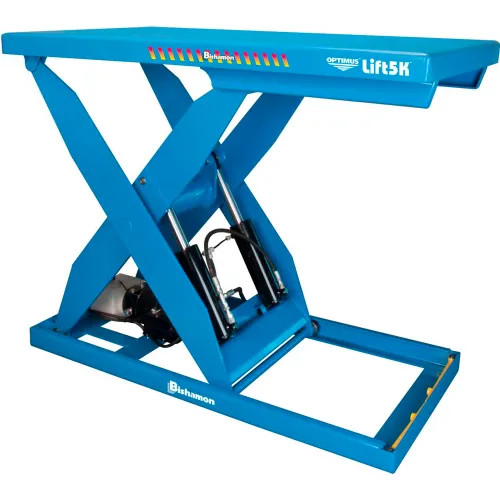

Bishamon L5K-4872 Heavy-Duty Electric Hydraulic Lift Table

5,000 lb Capacity | 48" x 72" Platform | 34" Vertical Travel

The Bishamon L5K-4872 is a powerhouse hydraulic lift table built for industrial-grade lifting in the most demanding environments. As part of Bishamon's Lift5K™ Series, this model features an extra-large 48" x 72" platform, making it ideal for handling oversized materials, pallets, and heavy components with confidence and control.

This table has a lifting capacity of 5,000 lbs and 34 inches of vertical travel, the L5K-4872 enhances workplace peformance by bringing heavy loads to the ideal working height, reducing strain and boosting productivity. Its electric hydraulic system ensures consistent and reliable performance across warehouses, manufacturing plants, and assembly areas.

Key Features

• Massive 5,000 lb Load Capacity – Built for large, heavy-duty applications
• Oversized Platform – 48" x 72" steel deck supports wide or bulky loads
• Smooth Vertical Lift – 34" of stable, powered lifting travel
• Reliable Electric Hydraulic Operation – 115 VAC motor-driven performance
• Rugged Construction – Welded steel scissor lift design for long-term use
• Quick Cycle Times – Lifts in approx. 30 seconds, lowers in approx. 14 seconds
• Low Profile – 8.63" lowered height allows easy loading access
• ANSI MH29.1-2012 Compliant – Meets rigorous safety and performance standards
• Made in the USA – Durable and dependable quality craftsmanship

Technical Specifications

SpecificationDetail

Model L5K-4872

Series Lift5K™ Series

Load Capacity 5,000 lbs

Platform Dimensions 48" x 72"

Vertical Travel 34 inches

Height (Lowered/Raised) 8.63" / 42.63"

Voltage 115 VAC

Lift Time (Up/Down) ~30 sec up / ~14 sec down

Construction Heavy-duty welded steel

Compliance ANSI MH29.1-2012

Country of Origin : Made in the USA

Ideal Applications

• Extra-large pallet positioning
• Assembly of heavy or wide parts
• Material feeding for machinery
• Ergonomic handling of bulky items
• Shipping and receiving areas
