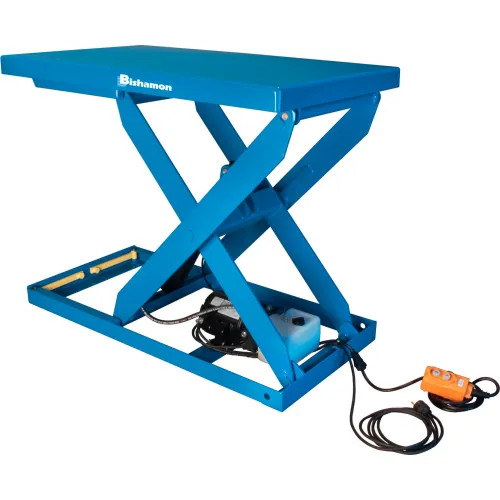

Bishamon L2K-3648 Lift Table

Heavy-Duty Electric-Hydraulic Scissor Lift Table – 2,000 lb Capacity, 36" x 48" Platform

The Bishamon L2K-3648 is a rugged and reliable lift table from the Optimus Lift2K™ Series, built to streamline material handling while improving workplace ergonomics. Designed for industrial performance, it features a powerful electric-hydraulic lift mechanism and a 2,000 lb weight capacity, making it perfect for lifting heavy loads safely and efficiently.

This 36" x 48" platform offers a larger work surface for broader applications, while the 30 inches of vertical travel ensures that materials can be raised to a comfortable working height. This reduces operator strain. The table lifts using a 115 VAC motor, with smooth and consistent lift speeds to enhance workflow efficiency.

Key Features

• 2,000 lb Capacity – Handles heavy materials in demanding environments
• Large Platform – 36" wide x 48" long for oversized or palletized loads
• Lift Height Range – From 8.5" lowered to 38.5" raised
• Smooth Hydraulic Operation – Up in 24 sec, down in 12 sec (approx.)
• Electric Powered – Simple plug-in 115 VAC operation
• Durable Powder-Coated Finish – Industrial-grade protection
• Made in the USA – Superior craftsmanship and build quality
• ANSI MH29.1 Compliant – Meets or exceeds safety requirements

Technical Specifications

SpecificationDetail

Model L2K-3648

Capacity 2,000 lbs

Travel 30 inches

Platform Dimensions 36" x 48"

Lowered Height 8.5 inches

Raised Height 38.5 inches

Voltage 115 VAC

Approx. Lift Time (Up/Down) 24 sec / 12 sec

Approx. Shipping Weight 540 lbs

Series Optimus Lift2K™

Operation Type Electric / Hydraulic

Ideal For

• Manufacturing workstations
• Machine feeding
• Assembly operations
• Loading/unloading parts
• Packaging lines
