Product Overview

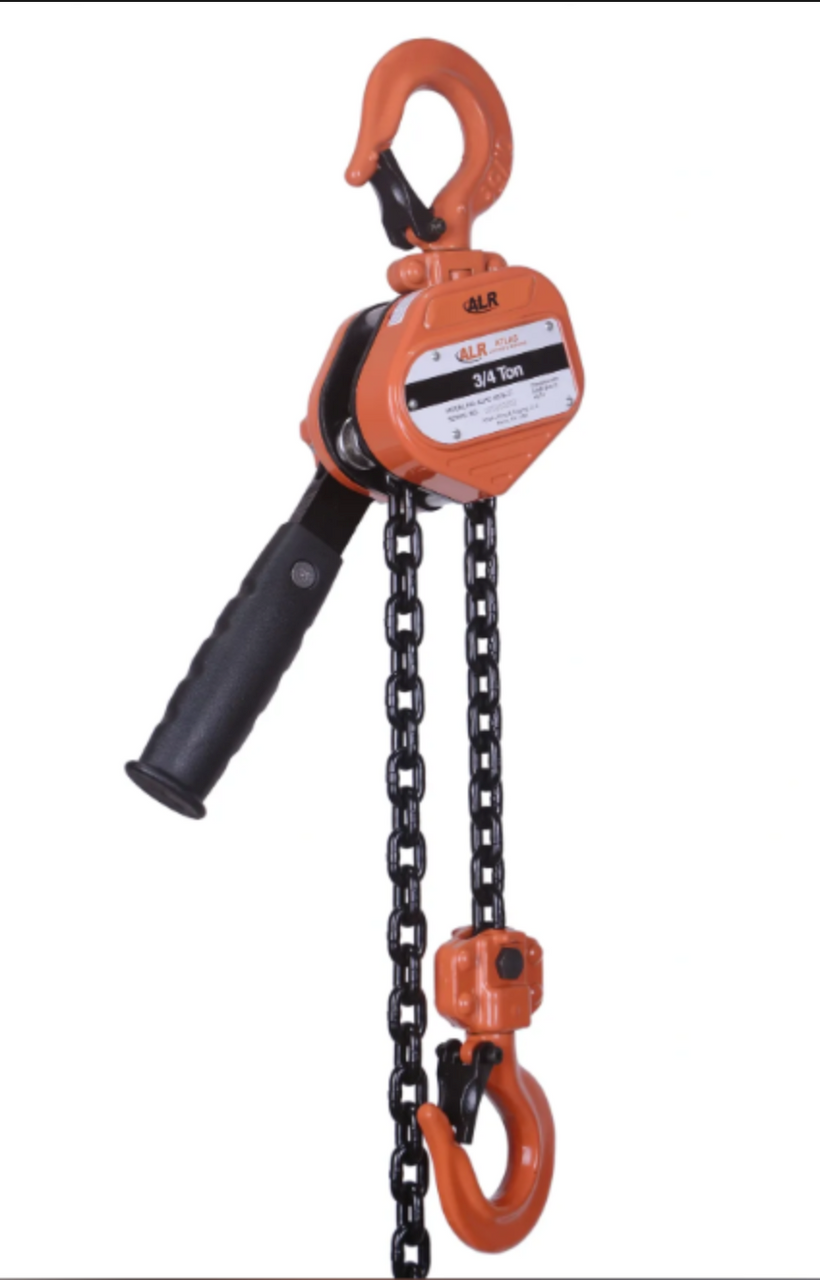

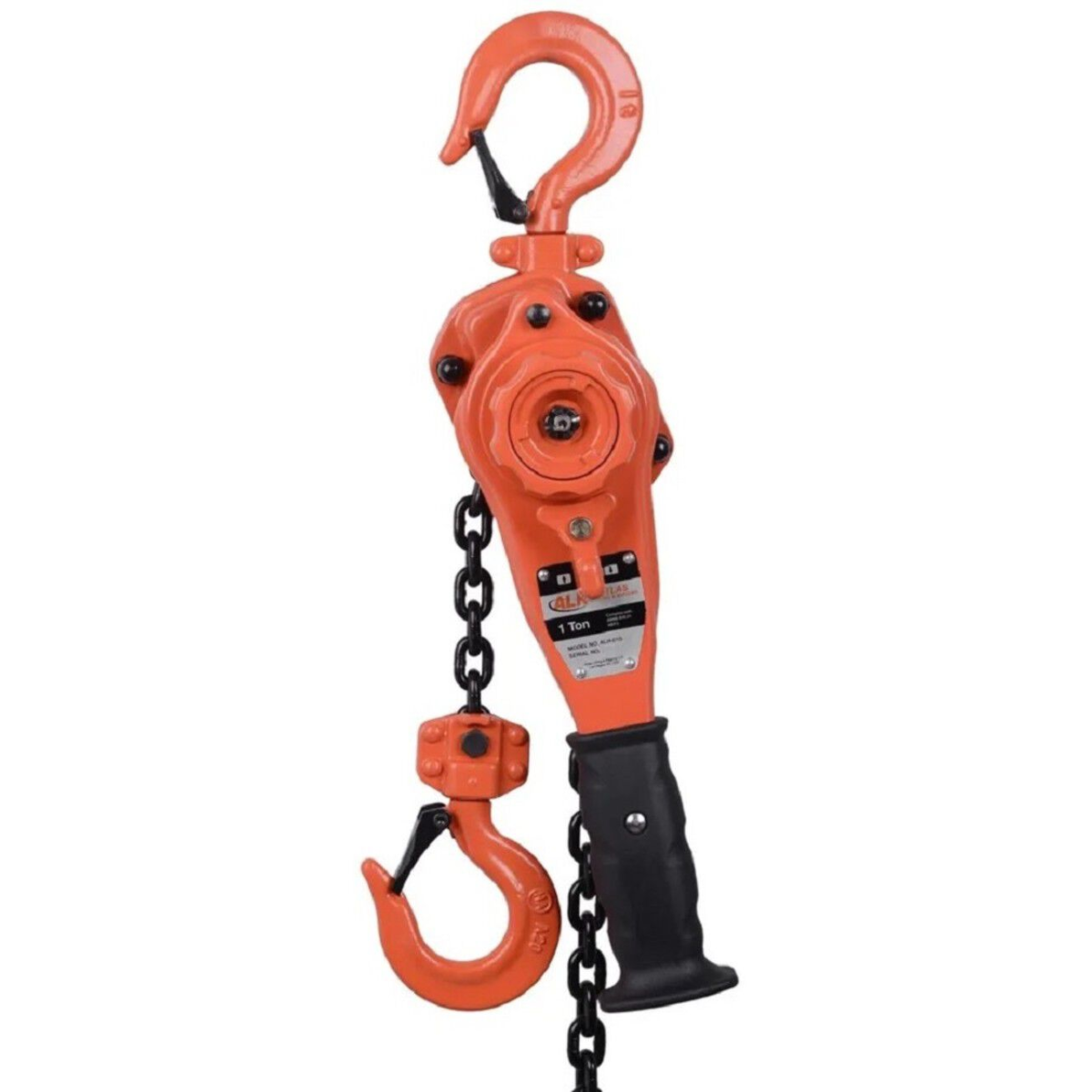

Atlas Lifting and Rigging ALH-008-05-OP Manual Lever Hoist with Overload Protection
The ALH-008-05-OP combines precision lifting and pulling capability with enhanced safety features. Rated for 0.8 tons (1,600 lbs) and featuring a 5-foot lift height, this lever hoist includes an integrated mechanical overload protection system that prevents lifting beyond its rated capacity to ensure safe operation.
Constructed with a rugged steel frame and heat-treated alloy steel load chain, the hoist offers reliable performance in demanding environments. The ergonomic lever handle enables smooth and controlled operation, while the forged steel swivel hooks with safety latches provide secure and flexible rigging. The overload protection mechanism adds an extra layer of safety by slipping before any damage can occur.
Key Features:
- 0.8-Ton Capacity with Overload Protection: Mechanical slip clutch prevents overload lifting.
- 5-Foot Lift Height: Ideal for precise lifting in confined spaces.
- Heavy-Duty Steel Construction: Built to withstand tough conditions.
- Heat-treated alloy Steel Load Chain: Strong and corrosion-resistant.
- Ergonomic Lever Handle: Comfortable grip for controlled operation.
- Quick-Change Load Direction: Easy switching between lifting and lowering.
- Forged Steel Swivel Hooks with Safety Latches: Secure 360° rotating load attachments.
Specifications:
- Model: ALH-008-05-OP
- Capacity: 0.8 Ton (1,600 lbs / 725 kg)
- Lift Height: 5 ft (1.5 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Hook Type: Forged steel swivel hooks with safety latches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 16 lbs (7.3 kg)
The Atlas ALH-008-05-OP lever hoist offers a dependable combination of lifting strength, precise control, and overload protection to enhance safety and performance in light-duty applications.
