Atlas Lifting and Rigging ALH 3.2 Ton Lever Chain Hoist 5 Ft. Chain with Overload Protection

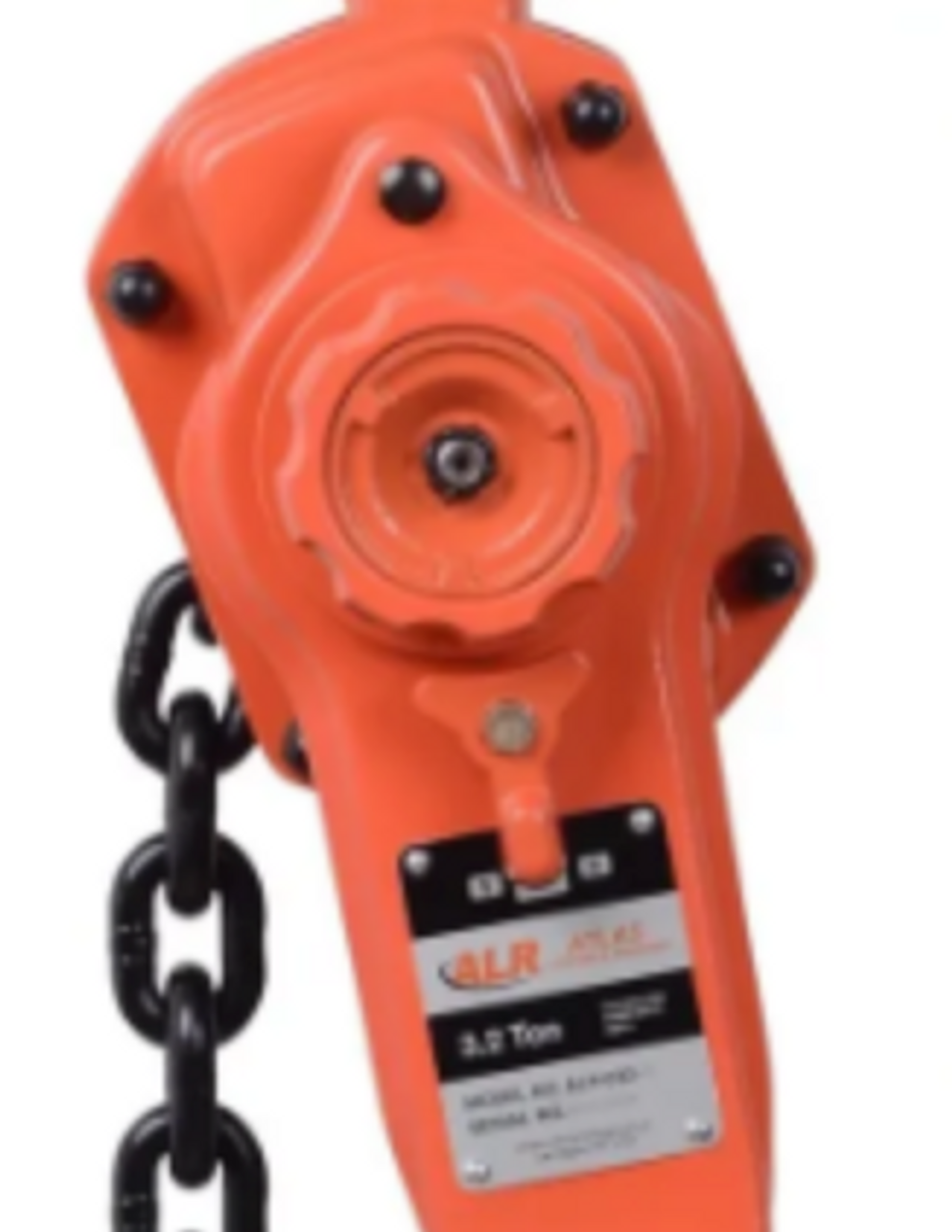

Atlas Lifting and Rigging ALH-032-05-OP Lever Hoist with Overload Protection

The ALH-032-05-OP lever hoist is built for maximum safety and efficiency when lifting heavy loads in compact vertical spaces. With a 3.2-ton (6,400 lbs) load rating and a 5-foot lift height, this hoist is ideal for tight workspaces where controlled, reliable lifting is essential.

Made with a mechanical overload protection system, this hoist ensures that the operator and equipment are protected from overloading conditions. Its heat-treated alloy steel load chain, forged swivel hooks, and rugged steel construction make it a durable choice for industrial, construction, and utility environments. The ergonomic lever and smooth selector switch offer precision control during operation.

Key Features:

• 3.2-Ton Load Capacity: Reliable strength for heavy-duty lifting tasks.
• 5-Foot Lift Height: Designed for jobs requiring short, controlled lifts.
• Mechanical Overload Protection: Automatically prevents lifting beyond rated capacity.

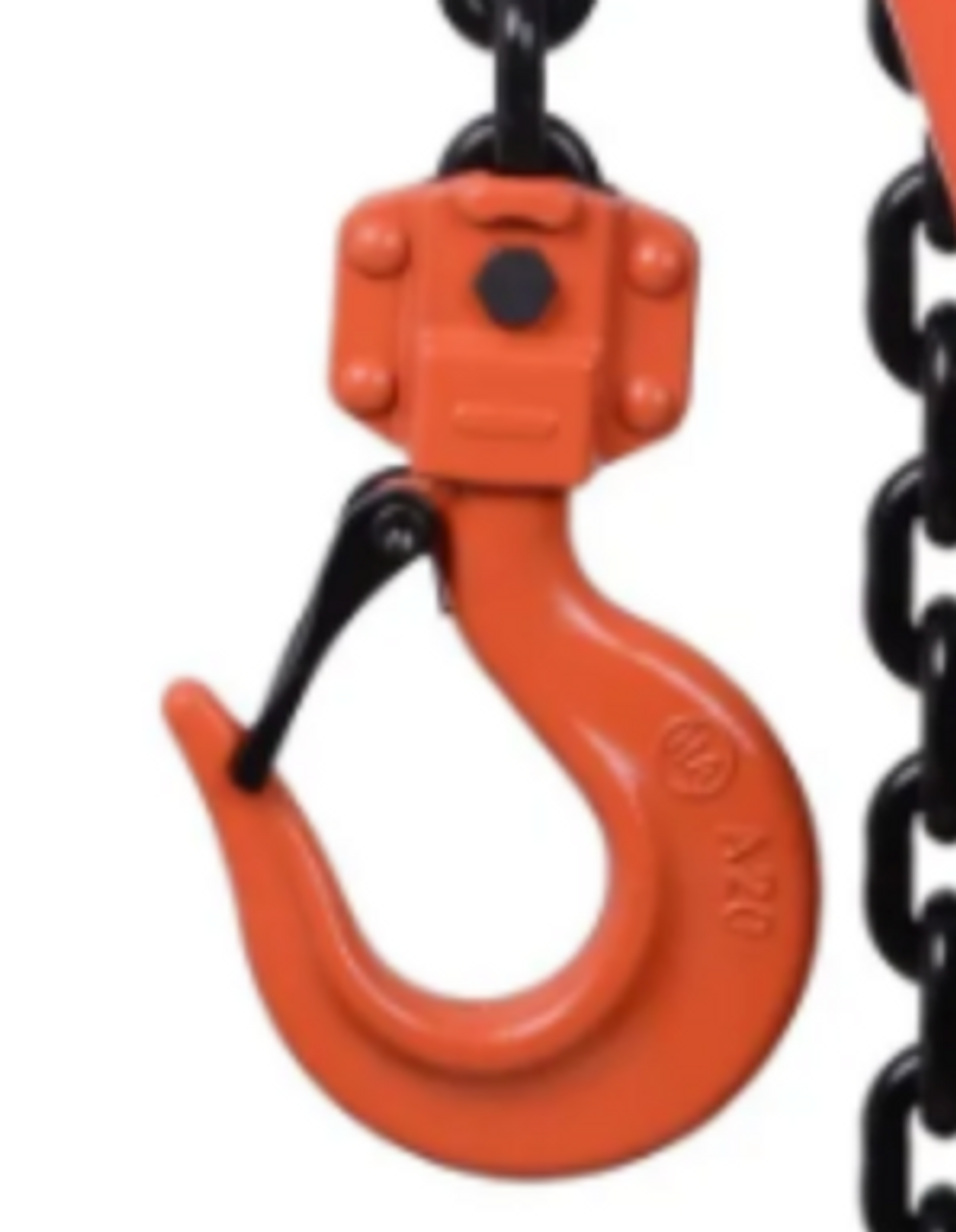

• Forged Swivel Hooks with Safety Latches: Provides secure, flexible load connections.
• Heat-Treated Alloy Load Chain: High-strength chain resists deformation and wear.
• Free-Chaining Functionality: Speeds setup by allowing slack chain adjustments.
• Three-Position Selector Switch: Enables lifting, lowering, and neutral operation.
• Ergonomic Lever Handle: Offers comfort and reduces fatigue during use.

Specifications:

• Model: ALH-032-05-OP
• Capacity: 3.2 Tons (6,400 lbs / 2,903 kg)
• Lift Height: 5 ft (1.5 m)
• Overload Protection: Integrated mechanical slip clutch
• Hook Type: Forged swivel hooks with safety latches
• Load Chain: Heat-treated alloy steel
• Lever Handle Length: Approx. 16 inches
• Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Net Weight: Approx. 42 lbs (19.1 kg)

The Atlas ALH-032-05-OP is the ideal solution for lifting heavy loads safely in tight spaces—backed by Atlas's commitment to quality and operator protection.
