Product Overview

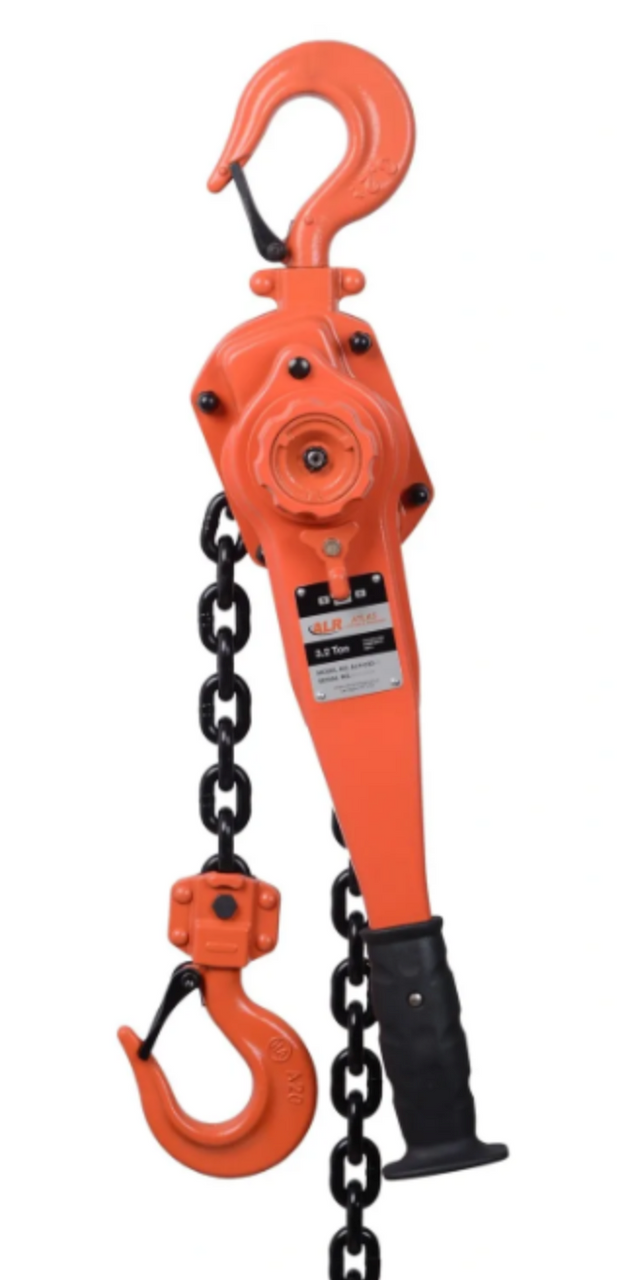

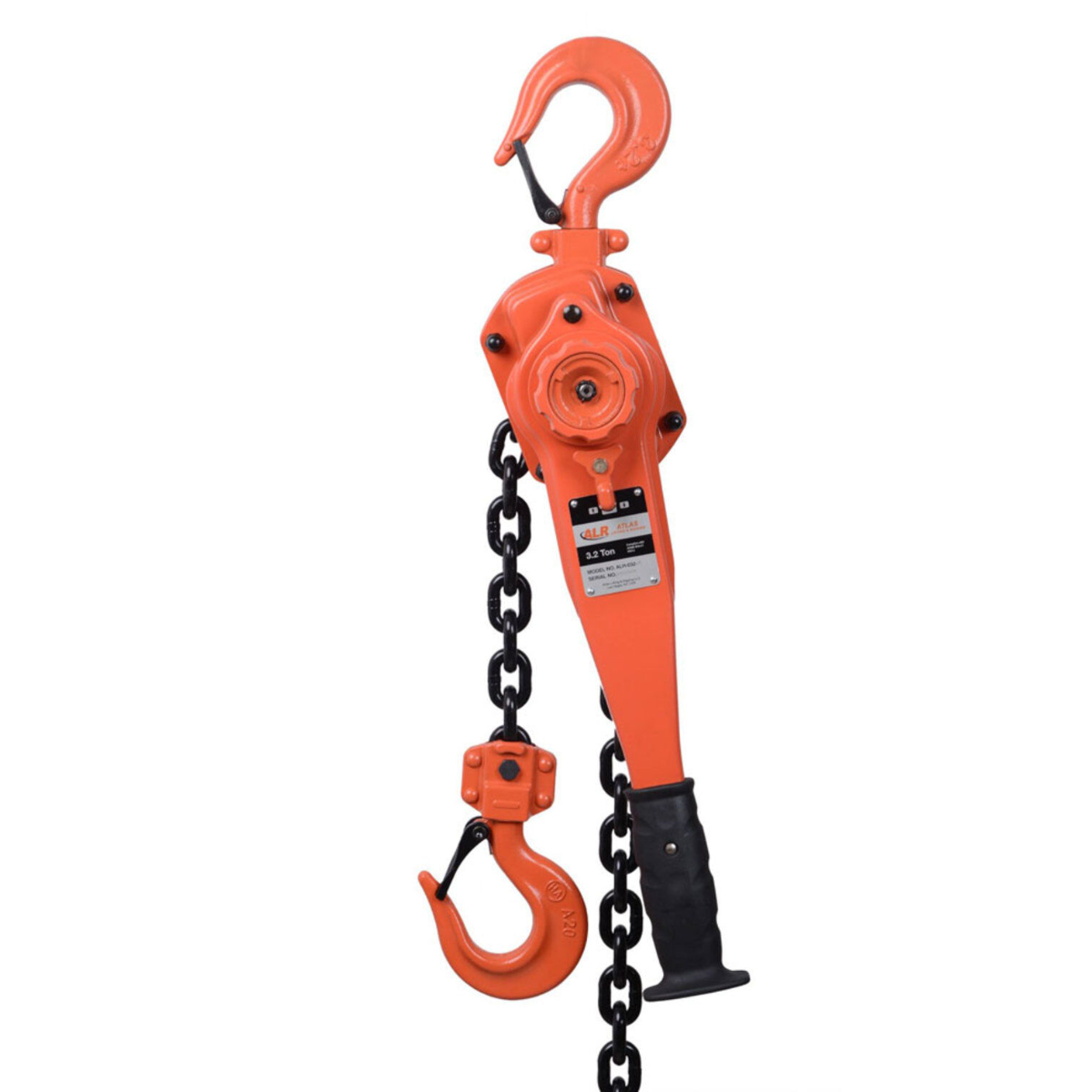

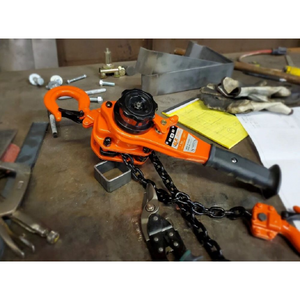

Atlas Lifting and Rigging ALH-032-05-OP-SH Lever Hoist with Overload Protection & Ship Hooks
Built for harsh, high-demand environments, the ALH-032-05-OP-SH lever hoist delivers premium lifting performance with safety and adaptability at the forefront. With a 3.2-ton (6,400 lbs) lifting capacity, 5-foot lift height, mechanical overload protection, and ship hooks, this hoist is tailored for marine, rigging, and industrial applications where security and flexibility are critical.
The inclusion of ship hooks provides a wider throat opening and a more secure fit for irregular or oversized anchor points—ideal for shipyards, docks, and offshore operations. Combined with its rugged construction, heat-treated alloy chain, and mechanical overload clutch, the ALH-032-05-OP-SH ensures safe, efficient operation in even the most demanding conditions.
Key Features:
- 3.2-Ton Load Capacity: Heavy-duty performance for industrial and marine lifting.
- 5-Foot Lift Height: Compact reach for close-quarter or vertical lifts.
- Mechanical Overload Protection: Prevents lifting beyond rated capacity for increased safety.

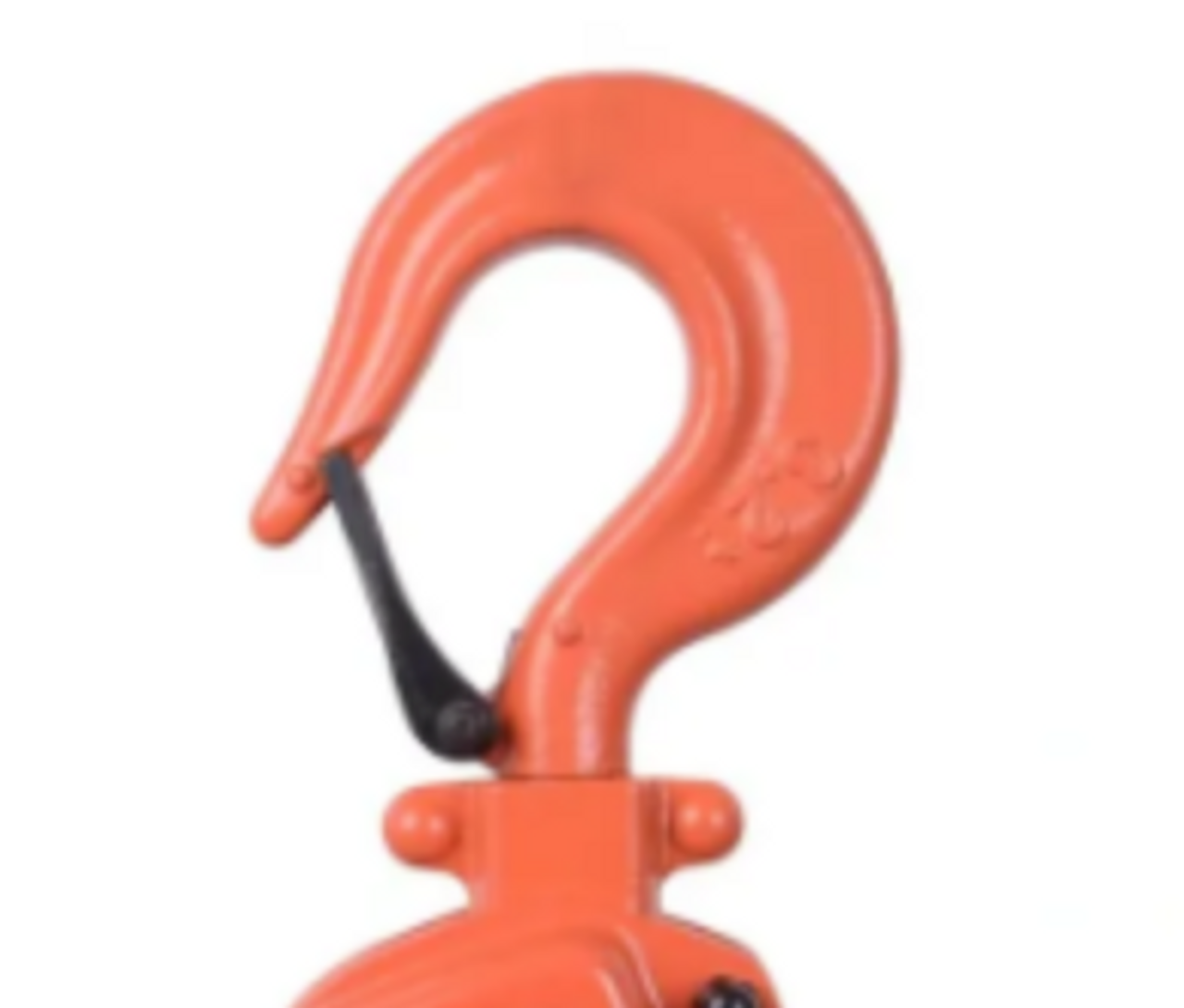

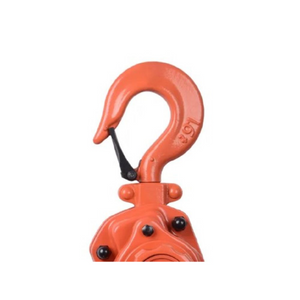

- Ship Hooks with Safety Latches: Wider opening and secure fit for specialty anchor points.
- Heat-Treated Alloy Steel Load Chain: Built for strength, durability, and long-term reliability.
- Free-Chaining Mechanism: Allows rapid slack chain adjustment without engaging the gear.
- Three-Position Selector Switch: Offers lift, lower, and neutral positioning.
- Ergonomic Lever Handle: Comfortable grip and leverage for reduced operator fatigue.
Specifications:
- Model: ALH-032-05-OP-SH
- Capacity: 3.2 Tons (6,400 lbs / 2,903 kg)
- Lift Height: 5 ft (1.5 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged ship hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 42 lbs (19.1 kg)
The Atlas ALH-032-05-OP-SH is the professional's choice for safe, reliable lifting in marine and industrial settings where standard hoists may fall short.
