Product Overview

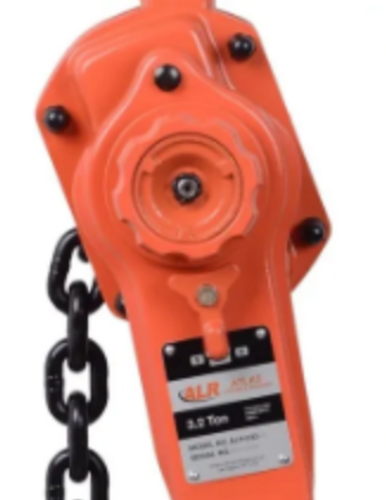

Atlas Lifting and Rigging ALH-032-15-OP-SH Lever Hoist with Overload Protection & Ship Hooks
The ALH-032-15-OP-SH lever hoist delivers dependable performance and enhanced safety in marine, industrial, and heavy construction environments. Engineered with a 3.2-ton working load limit, 15-foot lift height, and ship hooks, this hoist is built for extended reach and superior connection flexibility in applications with wide or irregular anchor points.
This model features integrated mechanical overload protection, which engages automatically when the rated capacity is exceeded—providing an additional layer of security for operators and equipment. The forged ship hooks feature larger throat openings than standard hooks, making them ideal for shipyards, offshore rigs, and other specialized rigging scenarios.
Key Features:
- 3.2-Ton Load Capacity: Handles heavy loads with strength and reliability.
- 15-Foot Lift Height: Provides extended vertical reach for versatile rigging.
- Mechanical Overload Protection: Prevents overloading with an automatic slip mechanism.

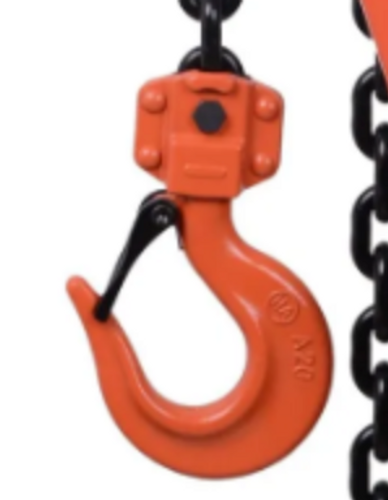

- Forged Ship Hooks with Safety Latches: Wide throat design accommodates large or non-standard anchor points.
- Free-Chaining Mechanism: Allows quick slack chain adjustment for fast setup.
- Three-Position Selector Switch: Offers precise control for lifting, lowering, or neutral positioning.
- Heat-Treated Alloy Steel Load Chain: High-strength and wear-resistant for long-term use.
- Ergonomic Lever Handle: Ensures efficient operation with minimal user fatigue.
Specifications:
- Model: ALH-032-15-OP-SH
- Capacity: 3.2 Tons (6,400 lbs / 2,903 kg)
- Lift Height: 15 ft (4.6 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged ship hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 66 lbs (29.9 kg)
The Atlas ALH-032-15-OP-SH is ideal for lifting professionals who need maximum safety, extended reach, and adaptable hook solutions in harsh or specialized rigging environments.
