Product Overview

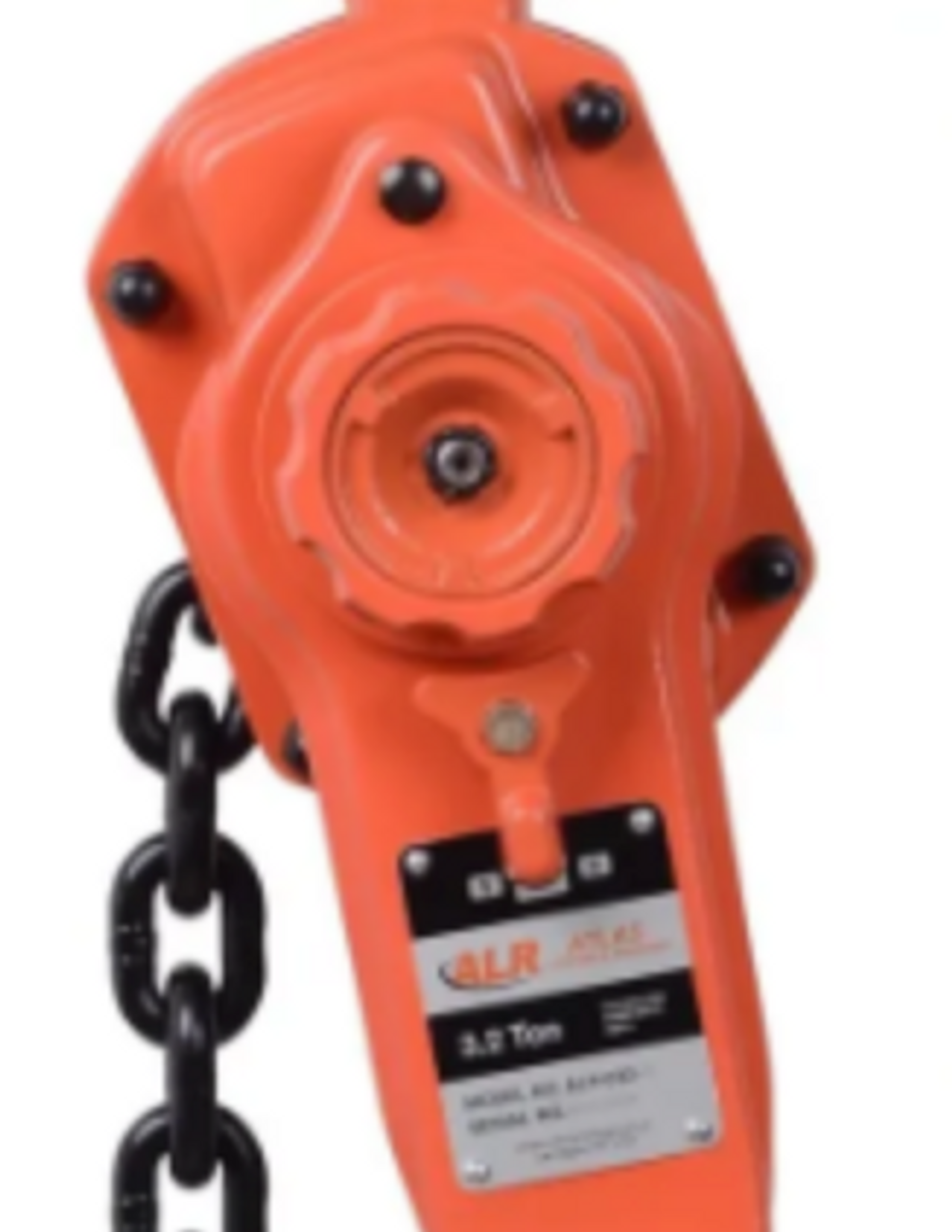

Atlas Lifting and Rigging ALH-032-20-OP Lever Hoist with Overload Protection
The ALH-032-20-OP lever hoist offers robust lifting capacity and extended reach with the added safety of built-in mechanical overload protection. Designed to handle demanding rigging and industrial lifting tasks, this hoist features a 3.2-ton working load limit, and a 20-foot chain lift to accommodate higher lifts and complex setups.
The overload protection system helps prevent damage and accidents by slipping automatically if the load exceeds the rated capacity. Built for industry with a heat-treated alloy steel load chain and forged swivel hooks. This hoist ensures durability and secure attachments for safe lifting.
Key Features:
- 3.2-Ton Load Capacity: Engineered for heavy lifting applications.
- 20-Foot Lift Height: Provides extended vertical lifting capability.
- Mechanical Overload Protection: Automatically slips when overloaded to protect the hoist and operator.
- Forged Swivel Hooks with Safety Latches: Strong and reliable load connection points.
- Free-Chaining Mechanism: Allows fast chain adjustment during setup.
- Three-Position Selector Switch: Smooth operation for lifting, lowering, or neutral.
- Ergonomic Lever Handle: Designed for comfortable and efficient use.
Specifications:
- Model: ALH-032-20-OP
- Capacity: 3.2 Tons (6,400 lbs / 2,903 kg)
- Lift Height: 20 ft (6.1 m)
- Overload Protection: Mechanical slip clutch included
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 71 lbs (32.2 kg)
The Atlas ALH-032-20-OP is ideal for rigging professionals who prioritize safety and need extended lifting reach with dependable performance.
