Product Overview

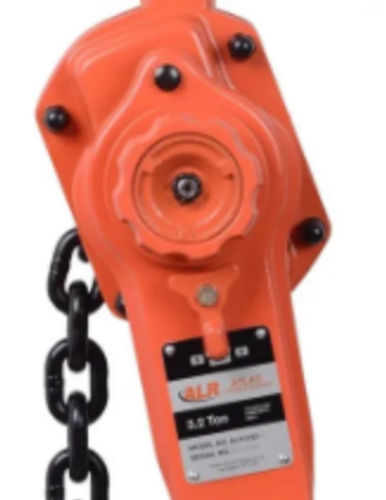

Atlas Lifting and Rigging ALH-032-20-OP-SH Lever Hoist with Overload Protection & Ship Hooks
The ALH-032-20-OP-SH lever hoist is purpose-built for demanding environments that require extended reach, enhanced safety, and wider hook access. With a 3.2-ton capacity and 20-foot lift height, this model offers dependable lifting power for marine, offshore, and industrial applications where oversized or irregular attachment points are common.
This unit features mechanical overload protection, which automatically disengages to prevent lifting beyond its rated capacity—providing critical protection for operators and equipment. The forged ship hooks feature a wider throat opening than standard hooks, ideal for anchoring to beams, bars, or other non-standard lift points.
Key Features:
- 3.2-Ton Load Capacity: Heavy-duty performance for industrial lifting needs.
- 20-Foot Lift Height: Accommodates tall or multi-level lifting setups.
- Mechanical Overload Protection: Protects against accidental overloading.

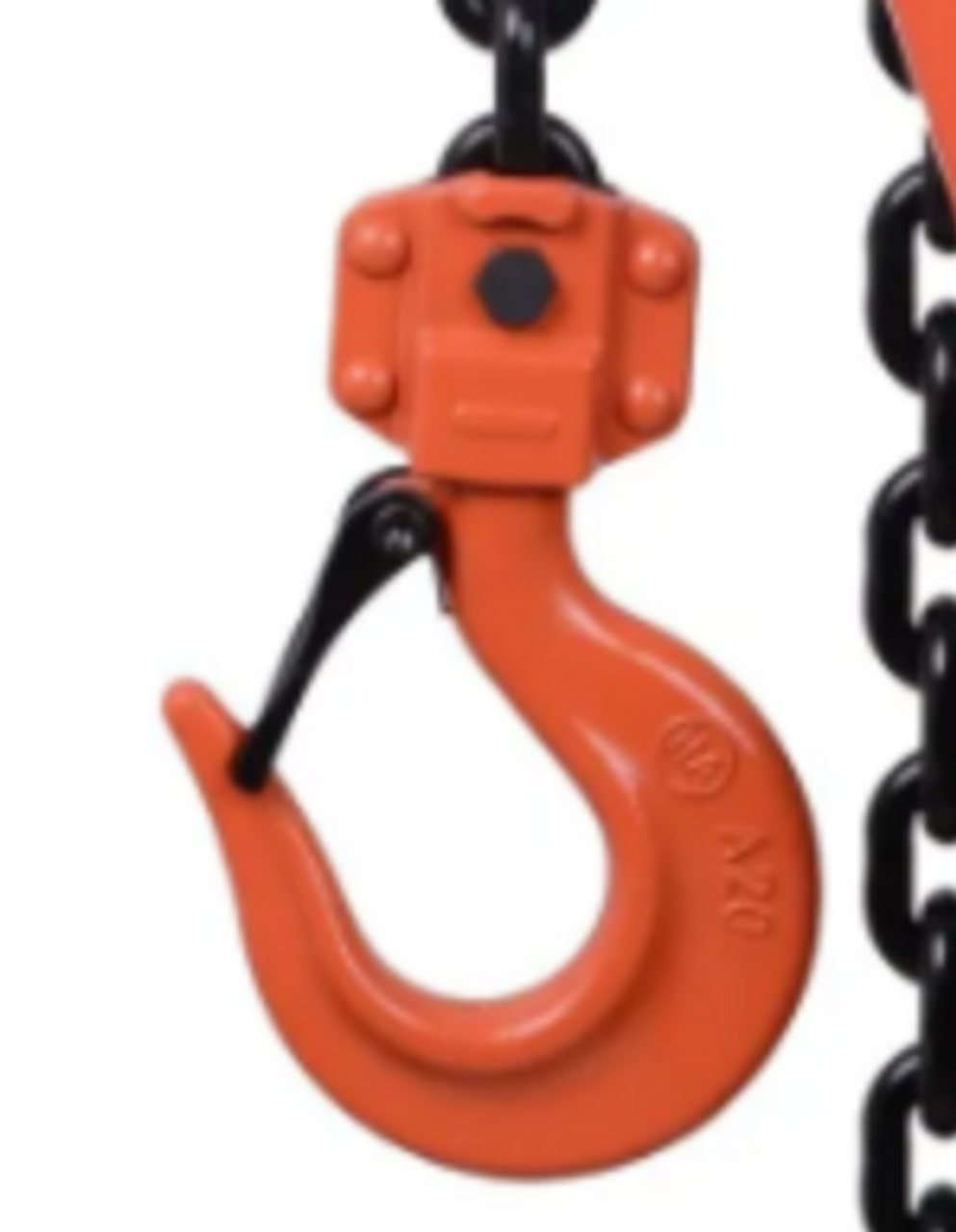

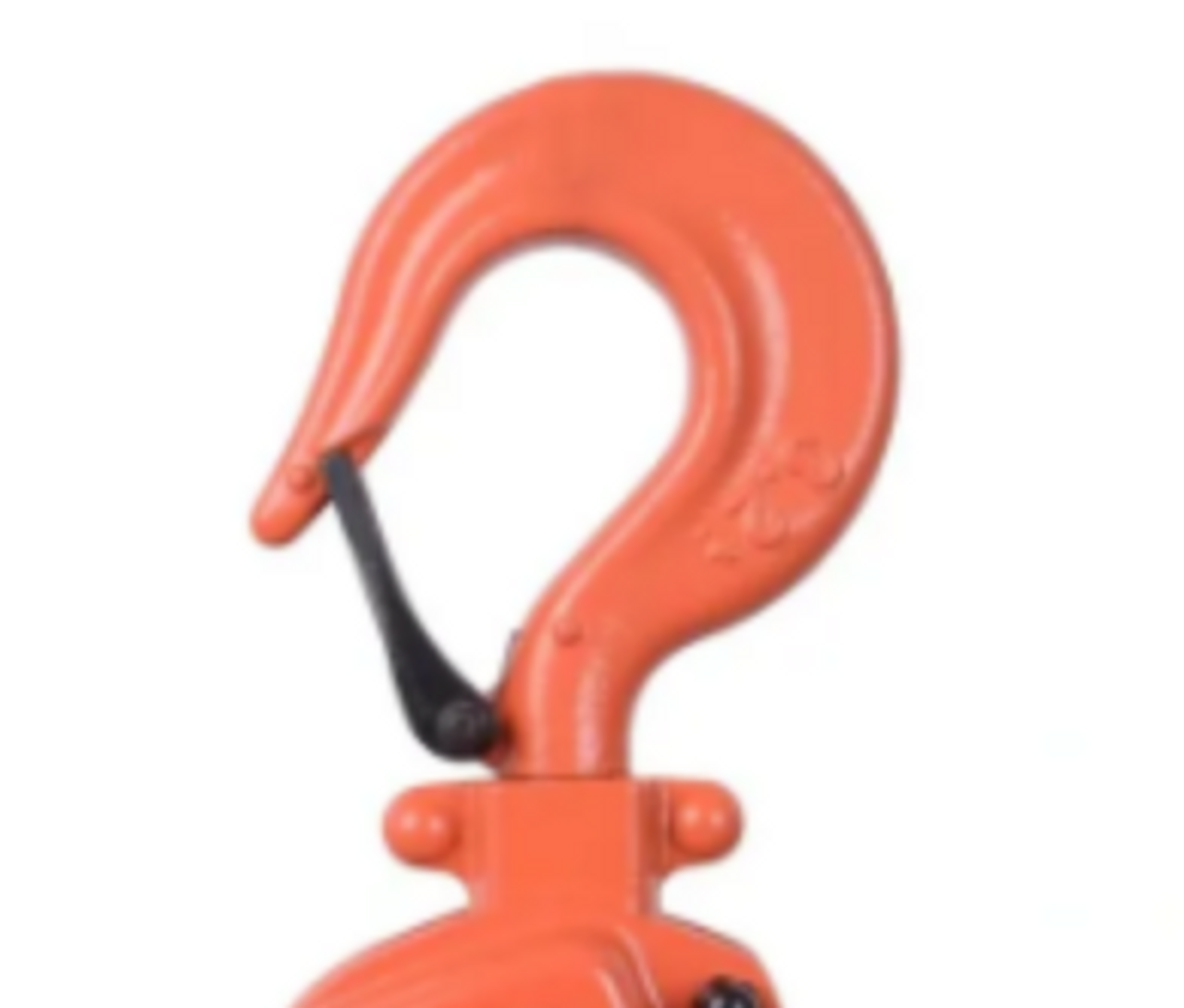

- Forged Ship Hooks with Safety Latches: Wider hook openings for more versatile connections.
- Free-Chaining Capability: Quick slack chain adjustment for efficient setup.
- Three-Position Selector Switch: Smooth switching between lift, lower, and neutral.
- Heat-Treated Alloy Steel Chain: Durable and wear-resistant for extended service life.
- Ergonomic Lever Handle: Designed for control and operator comfort.
Specifications:
- Model: ALH-032-20-OP-SH
- Capacity: 3.2 Tons (6,400 lbs / 2,903 kg)
- Lift Height: 20 ft (6.1 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged ship hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 73 lbs (33.1 kg)
The Atlas ALH-032-20-OP-SH is the go-to lever hoist for professionals working in challenging environments where safety, extended reach, and hook adaptability are essential.
