Product Overview

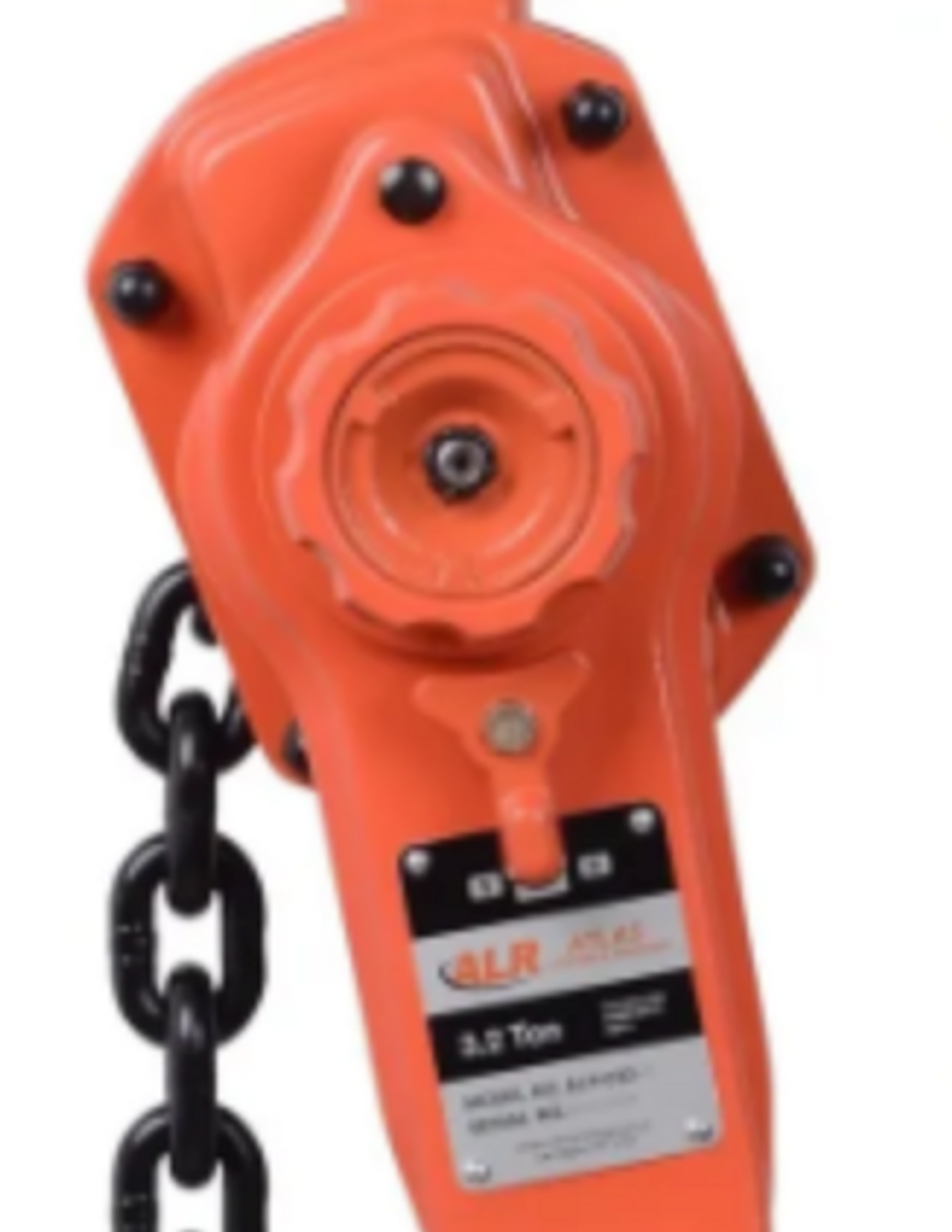

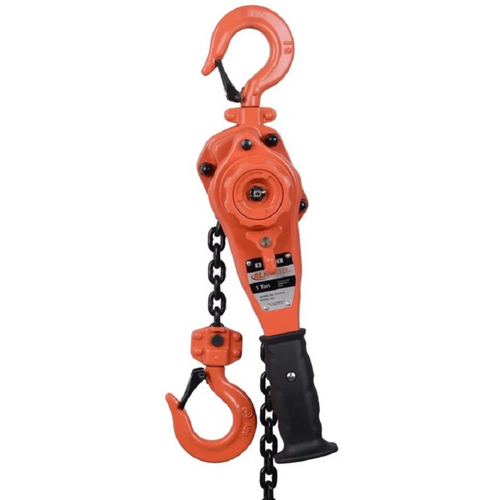

Atlas Lifting and Rigging ALH-032-10-OP-SH Lever Hoist with Overload Protection & Ship Hooks
The ALH-032-10-OP-SH lever hoist is engineered for maximum safety, versatility, and strength in challenging industrial and marine lifting environments. With a 3.2-ton capacity, 10-foot lift height, and ship hooks, this hoist combines robust construction with enhanced connectivity and load-handling flexibility.
Designed for use in shipyards, offshore operations, and heavy rigging setups, the ship hooks offer a wider throat opening and a more secure engagement with large or irregular anchoring points. The mechanical overload protection system adds a layer of safety, and protection by preventing the hoist from operating under excessive load conditions.
Key Features:
- 3.2-Ton Load Capacity: Built for heavy-duty lifting demands.
- 10-Foot Lift Height: Allows extended vertical reach for various rigging scenarios.
- Mechanical Overload Protection: Prevents operation beyond rated capacity to enhance safety.
- Ship Hooks with Safety Latches: Provide a wider opening for non-standard or oversized attachment points.
- Heat-Treated Alloy Steel Load Chain: Resists wear and maintains high tensile strength.
- Free-Chaining Mode: Enables quick and easy slack chain positioning.
- Three-Position Selector Switch: Offers precise lift, lower, and neutral control.
- Ergonomic Lever Handle: Designed for efficient, low-fatigue operation.
Specifications:
- Model: ALH-032-10-OP-SH
- Capacity: 3.2 Tons (6,400 lbs / 2,903 kg)
- Lift Height: 10 ft (3.0 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged ship hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 54 lbs (24.5 kg)
The Atlas ALH-032-10-OP-SH is a premium solution for professionals who need a powerful, safety-enhanced hoist with advanced hook options for demanding and unconventional rigging points.
