Product Overview
Atlas Lifting and Rigging ALH-032-30-OP Lever Hoist with Overload Protection
The ALH-032-30-OP lever hoist delivers high-capacity lifting performance and extended reach with the added safety of mechanical overload protection. With a 3.2-ton working load limit and an impressive 30-foot lift height, this hoist is well-suited for tall structures, utility work, and demanding rigging jobs where both reach and safety are essential.
The integrated overload protection system helps safeguard the operator and equipment by automatically slipping if the load exceeds the rated capacity. Built with a rugged steel body, forged swivel hooks, and a heat-treated alloy steel chain, this hoist is designed for consistent performance under tough working conditions.
Key Features:
- 3.2-Ton Load Capacity: Built for heavy-duty industrial lifting.
- 30-Foot Lift Height: Extended reach for tall and multi-level lifting applications.
- Mechanical Overload Protection: Automatically engages to prevent overloading and damage.

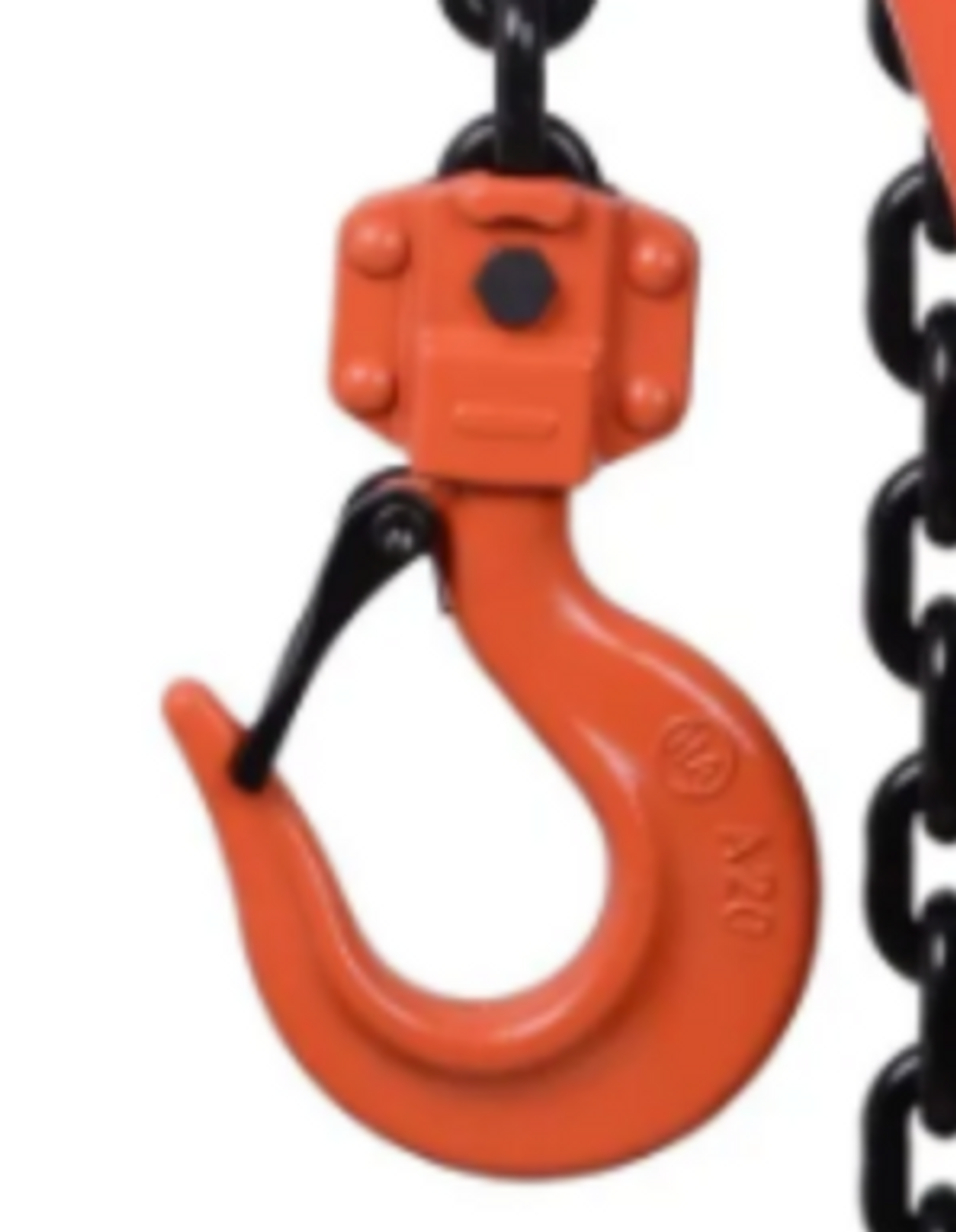

- Forged Swivel Hooks with Safety Latches: Strong and secure load connection points.
- Free-Chaining Capability: Enables quick and easy slack chain adjustment.
- Three-Position Selector Switch: Allows smooth control of lift, lower, and neutral functions.
- Heat-Treated Alloy Steel Chain: Durable and resistant to wear.
- Ergonomic Lever Handle: Provides user comfort and leverage.
Specifications:
- Model: ALH-032-30-OP
- Capacity: 3.2 Tons (6,400 lbs / 2,903 kg)
- Lift Height: 30 ft (9.1 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 97 lbs (44.0 kg)
The Atlas ALH-032-30-OP offers trusted performance and enhanced safety for professionals working at height or in complex lifting situations.
