Product Overview

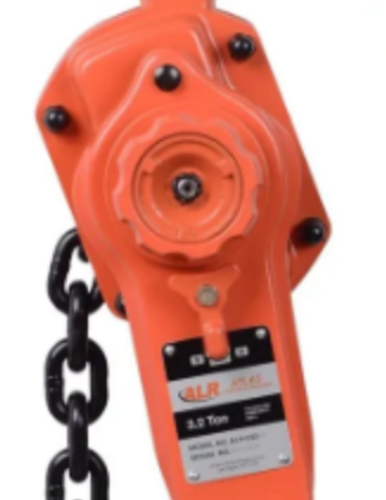

Atlas Lifting and Rigging ALH-032-30 Lever Hoist
The ALH-032-30 lever hoist is engineered for heavy-duty lifting applications that demand both power and extended reach. With a 3.2-ton working load limit and an extra-long 30-foot lift height, this hoist is ideal for multi-level lifts, tall structures, or large-scale rigging operations in industrial, construction, and utility environments.
Built with a heat-treated alloy steel load chain and forged swivel hooks, the hoist offers dependable strength and secure load control. The free-chaining feature enables fast slack adjustment, and the intuitive selector switch allows for smooth transitions between lift, lower, and neutral positions, ensuring precision load handling.
Key Features:
- 3.2-Ton Load Capacity: Designed for demanding industrial and rigging jobs.
- 30-Foot Lift Height: Maximum reach for tall or multi-point lifting requirements.

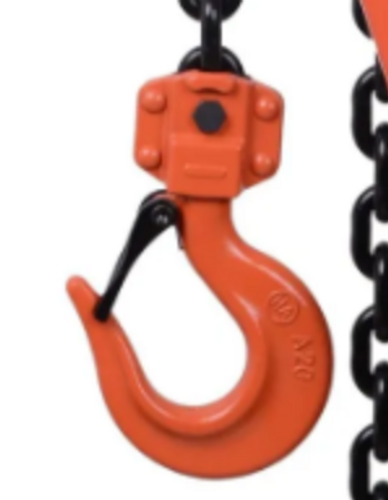

- Forged Swivel Hooks with Safety Latches: Secure and versatile attachment points.
- Free-Chaining Mechanism: Simplifies slack chain adjustment during setup.
- Three-Position Selector Switch: Smooth and safe operation with directional control.
- Heat-Treated Alloy Steel Chain: Tough and wear-resistant for extended use.
- Ergonomic Lever Handle: Comfortable grip for efficient lifting control.
Specifications:
- Model: ALH-032-30
- Capacity: 3.2 Tons (6,400 lbs / 2,903 kg)
- Lift Height: 30 ft (9.1 m)
- Overload Protection: Not included
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 95 lbs (43.1 kg)
The Atlas ALH-032-30 is a reliable solution for professionals who need high lifting power and extra chain length to meet the demands of complex lifting scenarios.
