Product Overview

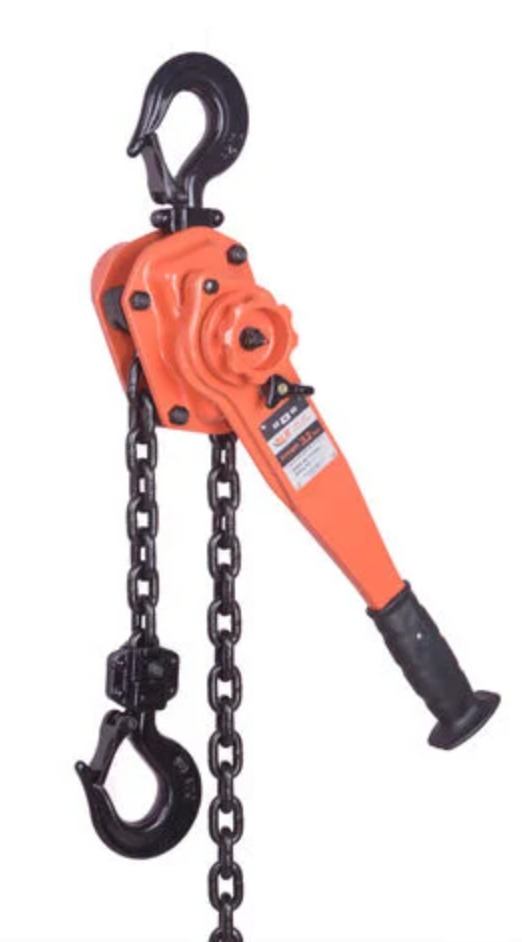

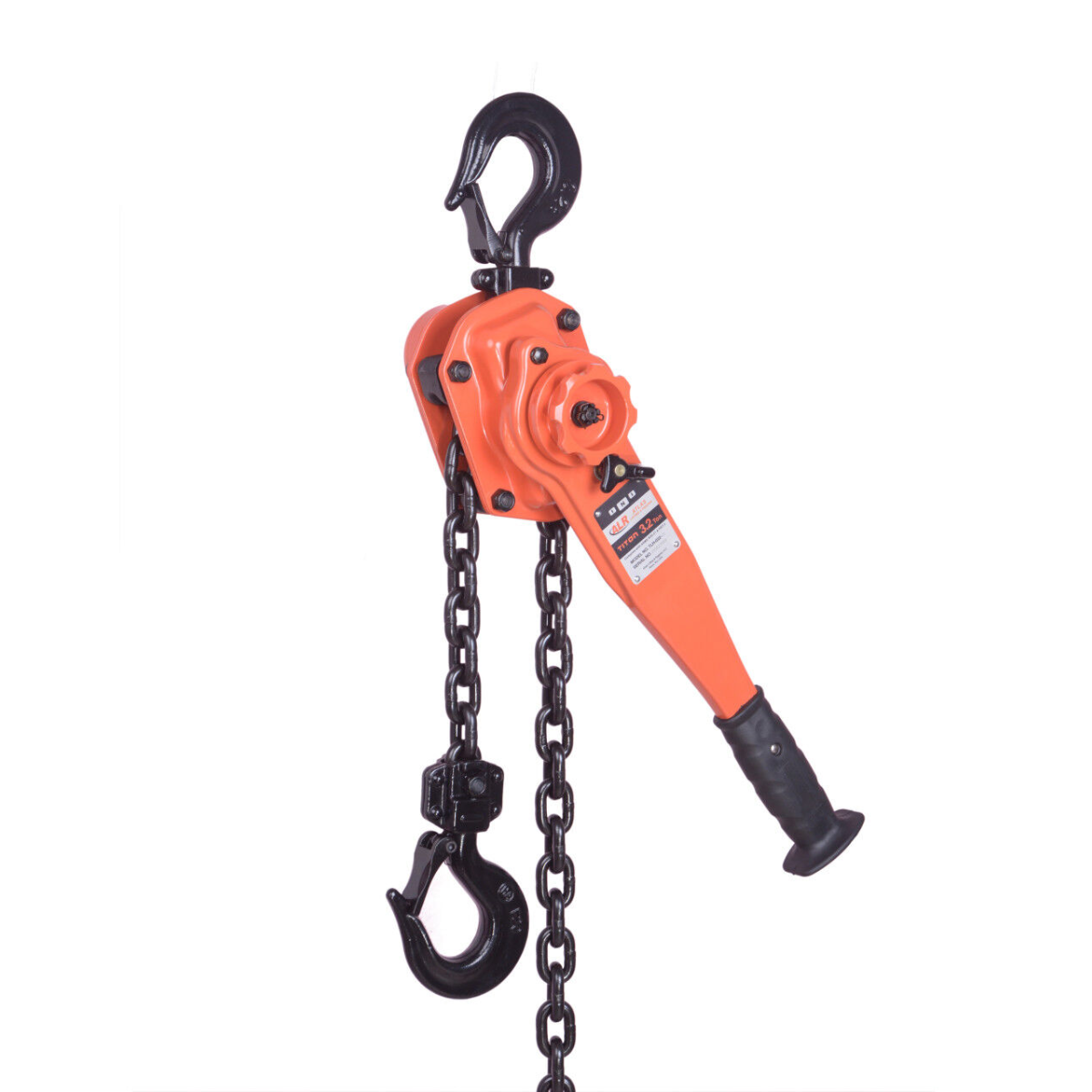

Atlas Titan Lever Hoist – TLH-032-20
3.2 Ton Capacity | 20-Foot Lift
The Atlas TLH-032-20 Titan Lever Hoist is built to handle the toughest lifting challenges with extended reach and uncompromising strength. Designed for professional-grade performance, this hoist features a 3.2-ton (7050 lbs) working load limit and a 20-foot lift height, making it ideal for large-scale construction, rigging, and industrial lifting operations. With an all-steel body, high-tensile alloy load chain, and precision braking system, it delivers consistent reliability and safety under load.
Features
- Extended Reach Performance: Equipped with a 20-foot premium alloy steel chain for greater lifting flexibility and height clearance.
- High Load Capacity: Rated for 3.2 tons (7050 lbs), ideal for heavy-duty lifting in demanding environments.
- Rugged Steel Construction: Built with a full steel frame and zinc-plated components for maximum durability and resistance to corrosion.
- Reliable Load Control: Features a Weston-style mechanical brake with dual ratchet pawls for secure, smooth, and controlled lifting and lowering.
- Safety-Focused Hooks: Drop-forged upper and lower hooks with built-in deformation indicators and safety latches to ensure proper load handling.
- Smooth Operation: Caged roller bearings support low-friction movement and extended tool life.
- Ergonomic Lever Design: Enables efficient and controlled operation, even in tight or elevated workspaces.
Specifications
- Model: TLH-032-20
- Brand: Atlas Lifting & Rigging
- Rated Capacity: 3.2 Ton (7050 lbs)
- Lift Height: 20 ft
- Load Chain Material: Grade 100 alloy steel
- Chain Finish: Black oxide
- Brake System: Weston-style mechanical with twin ratchet pawls
- Hook Type: Forged steel, swivel design with safety latches
- Housing Construction: All-steel with powder-coated finish
- Color: Industrial orange
- Dimensions:
- Height: 15.55 in
- Width: 7.56 in
- Depth: 4.45 in
- Weight: Approximately 61.79 lbs
- Standards Compliance: Meets ASTM B30.21
- Warranty: 3-Year Limited
- Country of Origin: China
Engineered for heavy-duty applications, the TLH-032-20 delivers strength, extended lifting range, and safety in one dependable package. Ideal for professional riggers, maintenance crews, and construction teams requiring reliable performance at height.
