Product Overview

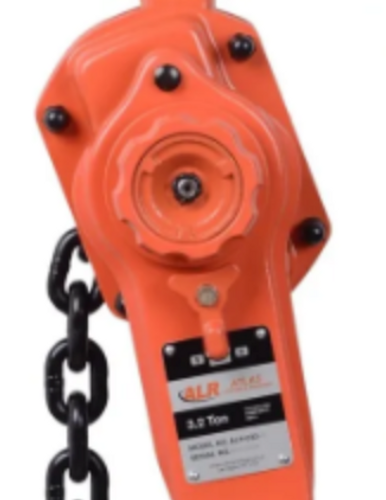

Atlas Lifting and Rigging ALH-032-05 Manual Lever Hoist
The ALH-032-05 lever hoist from Atlas Lifting and Rigging offers a robust solution for medium-heavy lifting tasks requiring precision and dependability. With a 3.2-ton (6,400 lbs) capacity and a 5-foot lift height, this model is perfect for jobs with shorter lift requirements but demanding reliable strength.
Built for industry with a heavy-duty steel frame, heat-treated alloy steel load chain, and forged swivel hooks with safety latches. The ALH-032-05 ensures secure load handling and long-lasting durability. Its lever and smooth selector mechanism allow for comfortable and efficient manual operation.
Key Features:
- 3.2-Ton Load Capacity: Suitable for moderate to heavy industrial lifting and tensioning.
- 5-Foot Lift Height: Compact lift range for localized applications.

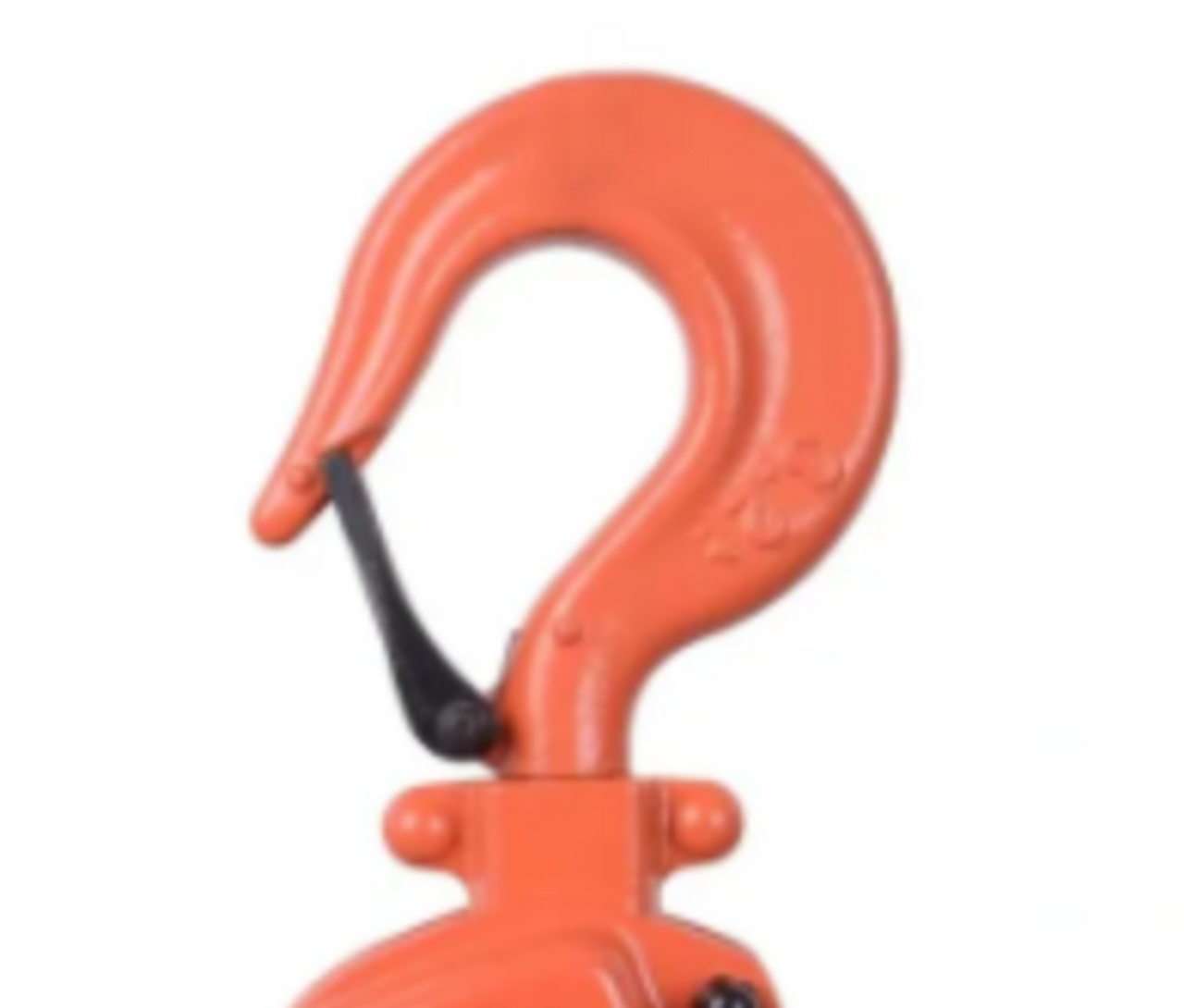

- Forged Swivel Hooks with Safety Latches: Ensure secure and flexible load connections.
- Heat-Treated Alloy Load Chain: Offers strength and resistance to wear.
- Free-Chaining Capability: Allows quick adjustment of the slack chain without engaging a load.
- Three-Position Selector Switch: For lifting, lowering, and neutral operation.
- Ergonomic Lever Handle: Designed to minimize operator fatigue.
Specifications:
- Model: ALH-032-05
- Capacity: 3.2 Tons (6,400 lbs / 2,903 kg)
- Lift Height: 5 ft (1.5 m)
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Overload Protection: Not included
- Lever Handle Length: Approx. 16 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 40 lbs (18.1 kg)
The Atlas ALH-032-05 is an excellent choice when moderate lift capacity and compact lift height are required without sacrificing safety or performance.
