Product Overview

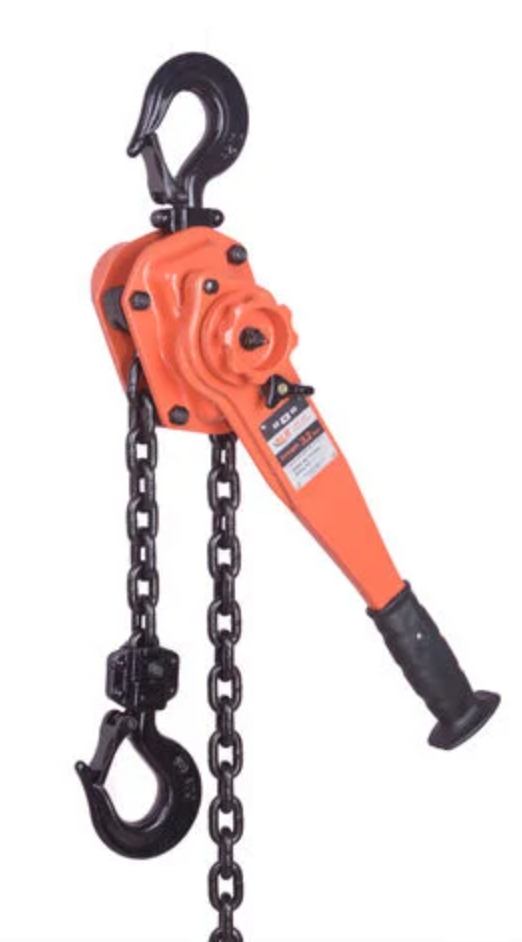

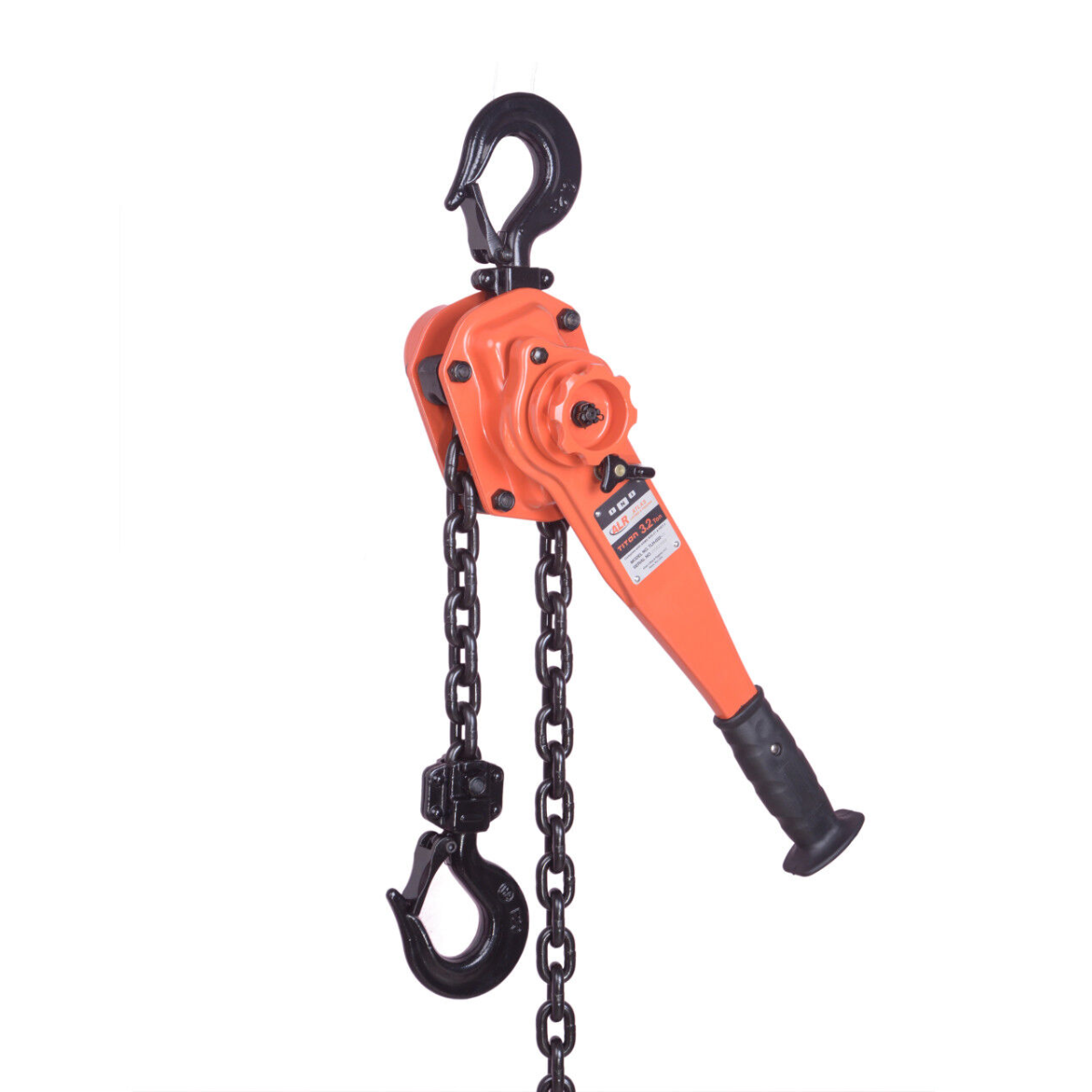

Atlas Lifting & Rigging Titon 3.2 Ton Lever Hoist – 5 Ft. Lift
The Atlas TLH-032-05 lever hoist is designed to handle demanding heavy-load lifting and pulling tasks with strength and precision. With a 3.2-ton (6,400 lbs) rated capacity and a 5-foot lift height, this model is well-suited for industrial environments where reliability and control are essential. Built with rugged steel construction and advanced load-handling features, it ensures safe and efficient operation in both vertical and horizontal applications.
Key Features:
- High-Capacity Lifting:
- Rated for 3.2 tons (6,400 lbs), making it ideal for handling larger loads in construction, manufacturing, and rigging work.
- Durable Load Chain:
- Features Grade 80 alloy steel chain for superior resistance to wear under heavy use.
- Controlled Operation:
- The Weston-style mechanical load brake provides precise and secure load control during lifting and lowering.
- Secure Hooking:
- Equipped with forged steel swivel hooks and safety latches for safe and flexible attachment to lifting points.
- Ergonomic and Compact:
- A 360° rotating lever and compact body design allow for easy handling and operation in confined or overhead spaces.
- Corrosion-Resistant Finish:
- Steel housing with a protective powder-coated finish for added durability in harsh environments.
Technical Specifications:
- Model: TLH-032-05
- Rated Capacity: 3.2 Ton (6,400 lbs)
- Standard Lift Height: 5 Feet
- Load Chain Material: Grade 80 Alloy Steel
- Chain Diameter: 10 mm
- Number of Chain Falls: 1
- Hand Pull to Lift Rated Load: Approx. 77 lbs
- Hook Type: Forged swivel hooks with safety latches
- Brake System: Weston-style mechanical load brake
- Housing: All-steel with corrosion-resistant coating
- Net Weight: Approx. 47 lbs
- Standards Compliance: Meets or exceeds ASME B30.21 and OSHA regulations
